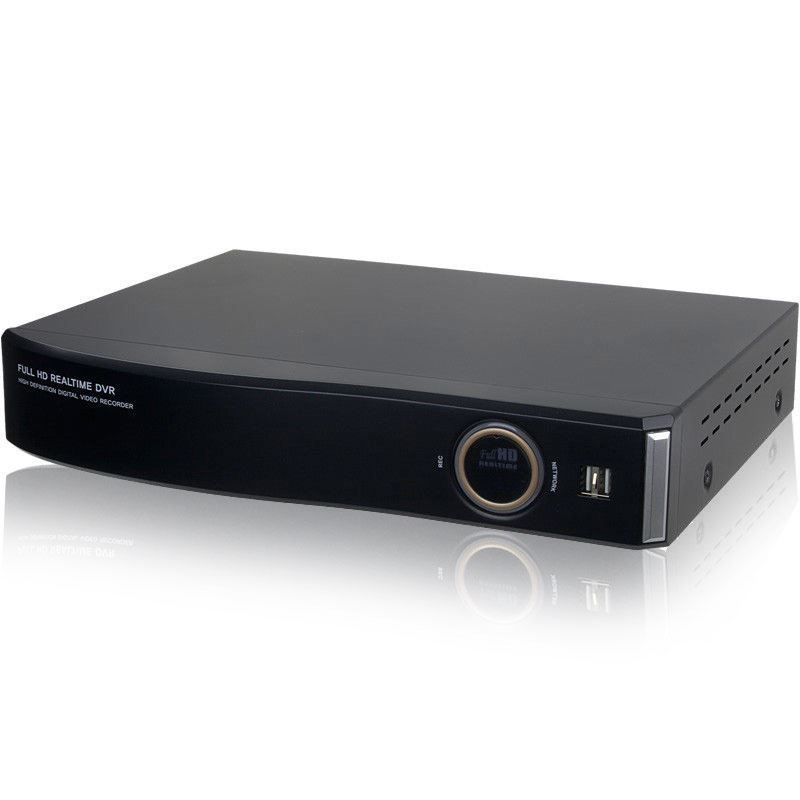

4CH HD-SDI 1080p Security MAGIC Lite DVR (XVST-MAGIC-L04)

SKU: 141696
Call for price

Accepted Payments

Real Time 4CH HD-SDI / Analog 960H DVR this Magic Lite DVR will auto-detect HD-SDI Cameras and Analog cameras, all you have do is plug the camera in, 1080p recording/display resolution at 120fps, This DVR uses H.264 compression, Programmable multi-channel CH Spot Out and PTZ and PoS Ready. supports both PC and Mac.
Live chat
Have a question? ASK AN EXPERT, Call 877-366-2444
Chat Live (Mon–Fri 8am–6pm CT)
Matching or higher specs replacement will be shipped on most analog products, as the technology has been long discounted. all analog sales are final.


  • Full GUI with alpha blending
  • Individual setting of resolution, frame rates and picture quality
  • Instant Replay
  • Digital Zoom (Live & Playback)
  • Mouse Control
  • Weekly scheduler with holiday by 10 minutes setting
  • Covert, Disable and Private function of cameras
  • Motion Detection with 352 area settings
  • Relay alarm output
  • PTZ control by RS-485
  • Daylight Saving Time and Network Time Setting
  • Multi User Authority up to 8 Users
  • De-interlace upon live and playback
  • 22 languages with full graphic
  • Individual Network port setting
  • Auto Deletion
  • Import and Export the configuration
  • Mirroring
  • POS Interface
  • Dual CODEC engine for independent video transmission
  • Interactive setup via network


Video Camera input 4 BNC
Individual HD/Analog selectable 720p real time / 1080p non real time Hybrid
Available source 720p25,30,50,60/1080p25,30/1080i50,60/Composite/960H/Mixed
Output 1 HDMI (Main Display)
1 VGA (Main Display)
1 Composite (Programmable SPOT)
Audio Audio input 4 RCA
Output 1 RCA
Sensor In 4 (NC, NO selectable)
Alarm out 1 relay
Operating System Embedded Linux OS
Display Speed Real Time
Resolution (Pixel) 1280×1024, 1280×720, 1920×1080
Screen Split 1 / 4
Recording CODEC H.264 / JPEG for 3G, Dual CODEC
Resolution (Pixel) 1080P (1080p25,30/1080i50,60)
720P (720p25,30,50,60)
WD1, D1 (Composite, 960H)
Picture quality 4 steps (Super, High, Medium, Low)
Speed NTSC : [email protected] / [email protected]
Playback Display 1 / 4
Search mode Calendar, Event ,POS , Panorama, Thumbnail
Speed NTSC : [email protected] / [email protected]
Fast/Slow speed Normal, REW & FF [recorded speed ×2, ×4, ×8,×16,×32,×64,×1/2,×1/4], Frame to frame, Pause
Network Network Interface Gigabit Ethernet
Speed [email protected]
Application Windows XP / 7 / 8 (PC Client system& IE) / MAC
Web Browser Internet Explorer, Safari, FireFox, Chrome
Smart phone App MR. Patrol : Android, iPhone for live and search
Backup Interface USB 2.0 × 2
  Backup device External HDD, CD&DVD-RW, Network, Thumb Drive
Max. # of HDD can be installed 2 SATA(No capacity limit ; 4TB of more)
Others Power Consumption 60W
Operating Temperature 5 ~40°C(41~104°F)
Relative Humidity Maximum 80% non-condensing
Dimension 13.39(W)×9.84(D)×2.36(H)inches / 340(W)×250(D)×60(H)mm
Write your own review
  • Only registered users can write reviews
  • Bad
  • Excellent
Products specifications
Number of Channels 4Ch
Technology Analog
Technology Hybrid
Technology HD-SDI
