| Product Highlights | |
| Number of Channels | 16Ch |
| Technology | IP/Network |
- Support P2P function; Easily monitoring via PC, iPhone and Andriod mobile phone.(Mobile phone APP:VMeye)
- Support remotely playback the recorded video in NVR by PC and mobile phone
- The same Client Software can manage different type security cameras .
- Support Software update, Support 20 Languages
- Support ONVIF

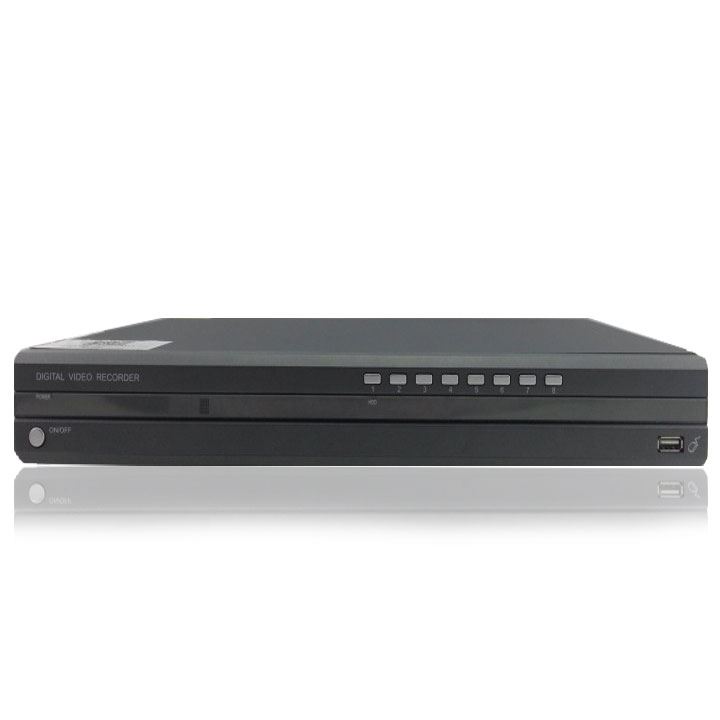

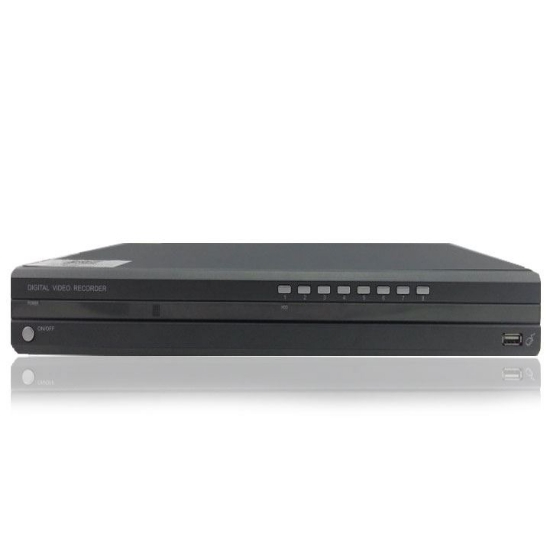

| Model | VT-NVR6516 | |
| Operation | Embedded Linux | |
| Image edit control | Image edit adjustable,both changable and fix stream optional | |
| Double stream | Can be set up in each channel | |
| Video standard | 1080P(1920×1080)30FPS/S/960P/(1280×960)/720P(1280×720)30FPS/S frames /second | |
| Monitor image quality | 1080P(1920×1080) / 960P/(1280×960)/720P(1280×720) | |
| Image dynamic detection | Multiple detection areas can be installed level 6 sensitivity(IPC) | |
| Image playback quality | 4ch 1080P real time/8ch 720P/960P real time synchronous playback | |
| Video mode | Support manual, automatic, dynamic monitoring, alarm trigger video mode (need) IPC support part | |
| Backup mode | U disk, USB mobile hard disk, USB burn, network storage and backup | |
| Operate mode | Mouse | |
| login locally | admin and password | |
| Save recording | local hard disk and network | |
| External interface | Video input | 1080P(1920×1080)IP camera |
| Video output | 1ch VGA+1ch HDMI +1TV | |
| Audio output | 1ch RCA audio output | |
| Network interface | 1ch RJ45,10M/100M ethernet ports adaptively | |
| USB connect port | 2 x USB connect port | |
| Wireless interface | Support external USB and 3G equipment | |
| RS485 | RS485*1 | |
| Alarm input | 4ch | |
| Alarm output | 1ch | |
| Hard disk | HDD port | 2 SATA HDD port |
| Maximum capacity | Maximum 3TB each SATA | |
| Cell phone monitoring | iOS，Android | |
| Power | 12V/4A | |
| Working temperature | -10℃～＋55℃ | |
| Working humidity | 10％-90％ | |
| NVR size | 380mm×295mm×55mm | |
| Weight | 2.7KG(without HDD) |
