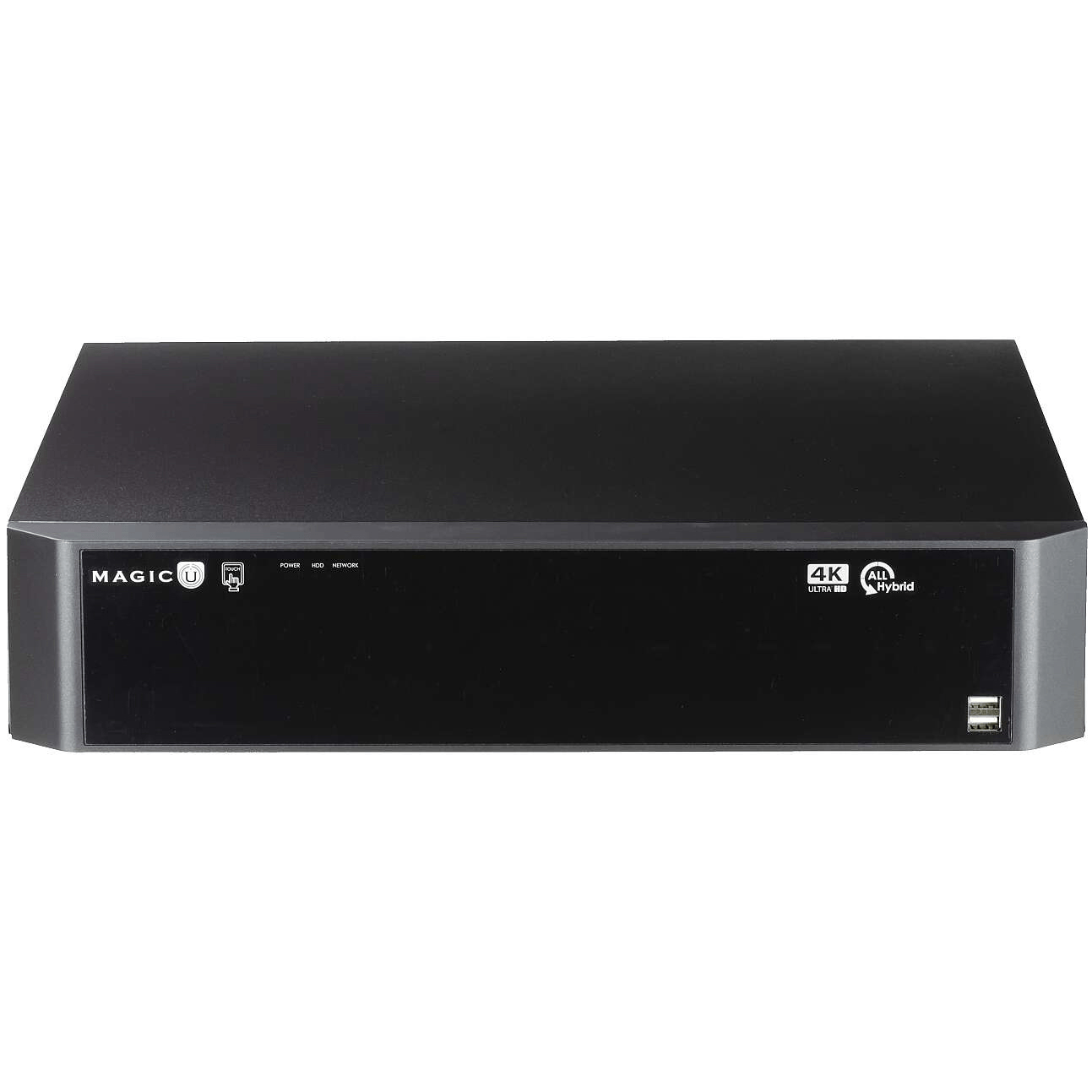

16Ch 4K HD-SDI MAGIC DVR (UVST-MAGICU16-8M5) 16Ch 4K HD-SDI MAGIC DVR (UVST-MAGICU16-8M5)

16Ch 4K HD-SDI MAGIC DVR (UVST-MAGICU16-8M5)

SKU: 141830
MPN: UVST-MAGICU16-8M5
Be the first to review this product

storage calculator

Call for price

Accepted Payments

Enterprise Level 16 Channel 8MP security DVR, the all new UVST-MAGIC16-8M5 MAGIC DVR, This Octa-brid DVR supports 16 H.265 EX-SDI, SD-SDI, TVI, AHD, CVI, IP, 960H, CVBS cameras, fully loaded with state of the art user friendly Interface and up to date mobile app, Professional level DVR with auto detect signal between the different camera technologies, great choice for Upgrading existing DVR setup.
Live chat
Have a question? ASK AN EXPERT, Call 877-366-2444
Or Chat Live (Mon–Fri 8am–6pm CT)

KEY FEATURES

  • Full GUI with alpha blending
  • Individual setting of resolution, frame rates and picture quality
  • Instant Replay
  • Digital Zoom
  • Mouse Control
  • Weekly scheduler with holiday by 10 minutes setting
  • Covert, Disable and Private function of cameras
  • Motion Detection with 576 area setting
  • Relay alarm output
  • PTZ control by RS-485
  • Daylight Saving Time and Network Time Setting
  • Multi User Authority
  • Deinterlacer upon live and playback
  • Multi languages with full graphic
  • Individual Network port setting
  • Auto Deletion
  • Import and Export the configuration
  • Interactive setup via network
  • POS Interface
  • Mirroring

SPECIFICATIONS

Video
Camera input 16 BNC
Available source Upto 4K IPC
TVI/AHD/CVI 720p25,30/1080p25,30/[email protected] ~ 30/[email protected] ~ 30/8MP15
HD-SDI/EX-SDI 720p25,30/1080p25,30/[email protected],30/8MP15
/Composite/960H/Mixed
IP Camera Spec ONVIF 2.3, RTSP, H.264, H.265 dual stream
use gigabit ethnet hub
IP Camera Num 8
IP Camera Restriction Cannot setup Private ZONE
Cannot support Timestamp
Output 2 HDMI (Main Display or Programmable HD Spot)
1 VGA (Main Display or Programmable HD Spot)
1 Composite (Programmable SPOT)
Audio
Audio input 16 RCA
Output 1 RCA
Sensor In 16 (NC, NO selectable)
Alarm out 2 Relay, 14 TTL
Operating System Embedded Linux OS
Display
Speed Real Time
Resolution (Pixel) 1280 × 1024, 1280 × 720, 1920 × 1080, UHD
Split screen 1,4,6,8,9,13,16
Main Recording
CODEC H.265
Resolution (Pixel),
Video IN : Possible Recording		 8MP : 8MP, 720p
4MP : 4MP, 720p
3MP : 3MP, 720p
1080p : 1080p, 720p
720p : 720p, 960 × 540
960H, Composite : 960H, D1
Picture quality 4 steps (Super, High, Medium, Low)
Speed 480fps @ 1080p
Dual Recording
CODEC H.265
Resolution (Pixel) 640 × 360
Playback
Display 1,4,6,8,9,13,16,25,32
Search mode
Speed 140fps
Fast/Slow speed Normal, REW & FF [recorded speed × 2, × 4, × 8, × 16,x32,x64,x1/2,x1/4], Frame to frame, Pause
Network (Individual setting of resolution, frame rates and picture quality)
Network Interface Gigabit Ethernet
High Resolution (Pixel)
Video IN : Possible Recording		 x
Low Resolution (Pixel)
Video IN : Possible Recording		 8MP : 480 × 256
4MP : 480 × 256
3MP : 480 × 256
1080p : 480 × 256
720p : 480 × 256
960H, Composite : CIF
Speed 140fps @ 1080p
Protocol TCP/IP, HTTP, DHCP
Application Windows 7 / 8 (PC Client system& IE)/MAC
Web Browser Internet Explorer, Safari
Smart phone App Android, iPhone for live and search
Backup
Interface USB 2.0 × 3
Backup device External HDD and CD/DVD-RW, Network, Thumb Drive
The number of HDD 8 SATA + 1 eSATA(upto 8 bays, No capacity limit ; 8TB or more)
Others
Power Consumption 150W
Operating Temperature 5 ~ 40°C(41 ~ 104F)
Relative Humidity Maximum 80% non-condensing
Dimension 430(W) × 420(D) × 88(H)
Write your own review
  • Only registered users can write reviews
  • Bad
  • Excellent
Products specifications
Number of Channels 16Ch
Technology HD-TVI
Technology EX-SDI
Technology HD-SDI
Technology Hybrid
