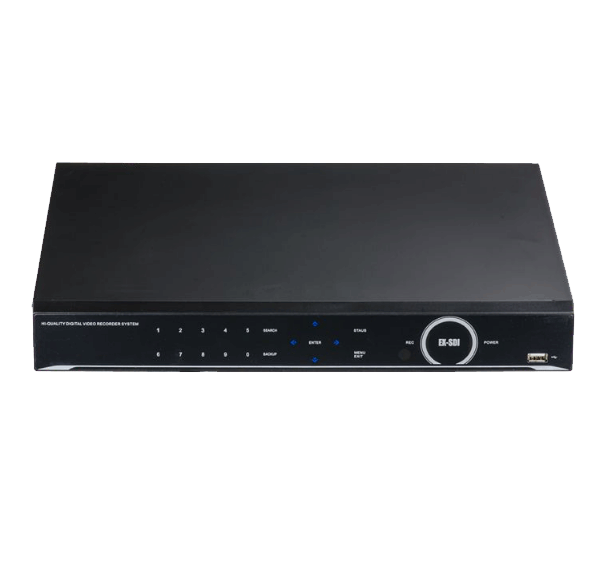

8CH Octa-brid MAGIC DVR System 4K (UVST-MAGIC-QX08) 8CH Octa-brid MAGIC DVR System 4K (UVST-MAGIC-QX08)

8CH Octa-brid MAGIC DVR System 4K (UVST-MAGIC-QX08)

SKU: 141792
MPN: UVST-MAGIC-QX08
1 review(s) | Add your review
5.0 1

storage calculator

Call for price

Accepted Payments

UVST-MAGIC-QX08, 8CH Octa-brid DVR System, H.265, 4K Output, 2 HDD slots up to 10TB each, eSATA, Supporting 5MP TVI & 4MP EX-SDI, 4CH Audio, Also supports up to 8 IP cameras with up to 8MP 4K resolution.
Live chat
Have a question? ASK AN EXPERT, Call 877-366-2444
Or Chat Live (Mon–Fri 8am–6pm CT)
Matching or higher specs replacement will be shipped on most analog products, as the technology has been long discounted. all analog sales are final.

KEY FEATURES

  • Full GUI with alpha blending Individual setting of resolution, frame rates and picture quality
  • Instant Replay
  • Digital Zoom
  • Mouse Control
  • Weekly scheduler with holiday by 10 minutes setting
  • Covert, Disable and Private function of cameras
  • Motion Detection with 576 area setting
  • Relay alarm output
  • PTZ control by RS-485
  • Daylight Saving Time and Network Time Setting
  • Multi User Authority
  • Deinterlacer upon live and playback
  • Multi languages with full graphic
  • Individual Network port setting
  • Auto Deletion
  • Import and Export the configuration
  • Interactive setup via network
  • POS Interface
  • Mirroring

SPECIFICATIONS

Video
Camera input 8 BNC
Individual HD/Analog selectable Analog, HD-SDI, EX-SDI, AHD, TVI, CVI, IP
Available source HD-SDI/EX-SDI 720p25,30/1080p25,30/[email protected],30/TDM
TVI/AHD 720p25,30/1080p25,30/[email protected] ~ 30/[email protected] ~ 30/[email protected]~20
Composite/960H/Mixed
IP Camera Spec ONVIF 2.3, RTSP, H.264, H.265 dual stream
use gigabit ethnet hub
IP Camera Num 8
IP Camera Resolution ~ [email protected]
IP Cameara Restriction Cannot setup Private ZONE
Cannot support Timestamp
Output 2 HDMI (Main Display or Programmable HD Spot)
1 VGA (Main Display or Programmable HD Spot)
1 Composite (Programmable SPOT)
Audio
Audio input 4 RCA
Output 1 RCA
Sensor In 8 (NC, NO selectable)
Alarm out 2 relay, 2 TTL
Operating System Embedded Linux OS
Display
Speed Real Time
Resolution (Pixel) 1280 × 1024, 1280 × 720, 1920 × 1080, 2560 × 1440, 3840 × 2160(4K)
Split screen 1,4,6,8,9
Main Recording
CODEC H.265
Resolution (Pixel) 5MP: 5MP, 720p
4MP : 4MP, 720p
3MP : 3MP, 720p
1080p : 1080p, 720p
720p : 720p, 960 × 540
960H, Composite : 960H, D1
Picture quality 4 steps (Super, High, Medium, Low)
Speed 120fps @ 4MP
Dual Recording
CODEC H.265
Resolution (Pixel) 640 × 352
Playback
Display 1,4,6,8,9
Search mode Calendar, Event ,POS , Panorama, Thumbnail
Speed 120fps
Fast/Slow speed Normal, REW & FF [recorded speed × 2, × 4, × 8, × 16,x32,x64,x1/2,x1/4], Frame to frame, Pause
Network (Individual setting of resolution, frame rates and picture quality)
Network Interface Gigabit Ethernet
High Resolution (Pixel) 5MP : 1080p, 720p
4MP : 1080p, 720p
3MP : 1080p, 720p
1080p : 1080p, 720p
720p : 720p, 960 × 540
960H, Composite : 960H, D1
Low Resolution (Pixel) 5MP: 480 × 256
4MP : 480 × 256
3MP : 480 × 256
1080p : 480 × 256
720p : 480 × 256
960H, Composite : CIF
Speed 70fps @ 1080p
Protocol TCP/IP, HTTP, DHCP
Application Windows 7 / 8 / 10 (PC Client system& IE)/MAC
Web Browser Internet Explorer, Safari, Chrome, Firefox
Smart phone App Android, iPhone for live and search
Backup
Interface USB 2.0 × 2
Backup device External HDD, CD&DVD-RW, Network, Thumb Drive
The number of HDD 2 SATA + 1 ESATA (up to 10TB)
Others
Power Consumption 60W
Operating Temperature 5 ~ 40°C(41 ~ 104F)
Relative Humidity Maximum 80% non-condensing
Dimension 380(W) × 340(D) × 50(H) mm
Write your own review
  • Only registered users can write reviews
  • Bad
  • Excellent
Existing reviews
Very pleased, works great
This unit works great, great picture quality on DVR and mobile app, great customer support in helping setting it up for remote viewing.
From: Guest | Date: 4/14/2020 1:17 PM
Was this review helpful? Yes No (0/0)
Products specifications
Number of Channels 8Ch
Technology HD-TVI
Technology EX-SDI
Technology HD-SDI
Technology Analog
Technology Hybrid
