| Product Highlights | |
| Technology | IP/Network |
| Compliance | NDAA Compliant |
| Resolution | 4K 8MP |
- NDAA Compliant
- Uniview Tri-Guard Active Deterrence
- Smart Intrusion Prevention
- 24/7 ColorHunter
- 8MP (3840x2160) Resolution
- 2.8mm Fixed Lens
- Approx. 100 FT Color Light Range
- Built-in Microphone
- IP67, 3 Axis Design• 130dB WDR
- DC12V, PoE
Details

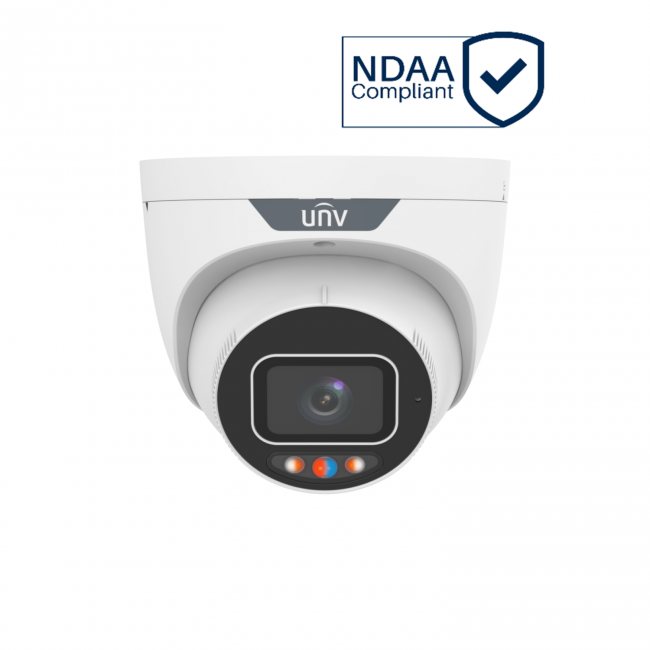

| Model | IPC3638SS-ADF28KMC-I1 |
| Camera | |
| Image Sensor | 1/2.8" CMOS |
| Min. Illumination | Color: 0.001 Lux @ F1.0, AGC On |
| Shutter Speed | 1 s ~ 1/100,000 s |
| Lens | 2.8mm Lens |
| Day & Night | IR Cut Filter With Auto Switch |
| Digital Noise Reduction | 3D DNR |
| Wide Dynamic Range | 130dB |
| Supplemental Light | Dual Light; IR, White Light |
| IR Distance | Approximately 100FT |
| White Light Distance | Approximately 100FT |
| Compression Standard | |
| Video Compression | Ultra H.265, H.265, H.264 |
| H.265 Type | Main Profile |
| Video Bit Rate | 128 Kbps - 16 Mbps |
| 9:16 Corridor Mode | Supported |
| Image | |
| Max. Resolution | 3840 x 2160 |
| Frame Rate | 30FPS (8MP: 3840x2160), 30FPS (5MP: 3072x1728, 4MP: 2560x1440, 2MP: 1920x1080) |
| Image Setting | Rotate Mode, Saturation, Brightness, Contrast, Sharpness |
| BLC | Support, Zone Configurable |
| ROI CODEC | Support |
| Network | |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API |
| Protocols | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP |
| Client | EZStation, EZView, EZLive |
| Web Browser | Chrome 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ |
| General | |
| Operating Conditions | -30°C ~ 60°C (-22°F ~ 140°F) |
| Power Supply | 12VDC, PoE (802.3af) |
| Power Consumption | Max. 10W |
| Ingress Protection | IP67 |
| Dimension | 5.1" x 4.7" |
| Weight | 2 LBS |
