Product Highlights | |
Resolution | 1MP/720p |
Technology | HD-TVI |
Camera Features | Outdoor |
Lens | 3.6mm |
- 1.3MP HD-TVI 720p Video Resolution
- True Day & Night
- DNR / Smart IR
- 65ft IR Distance
- IP66 Weather-proof
- 12V DC

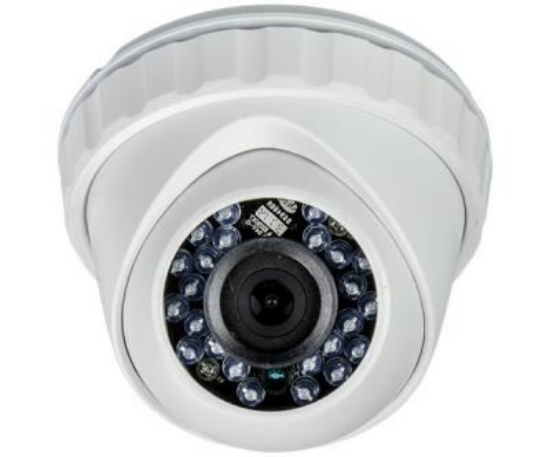

TIB 9324 | |
Image Sensor | 1/3" Progressive Scan CMOS |
Effective Pixels | 1280(H) x 720(V) |
Min. Illumination | 0.01 Lux @(F1.2,AGC ON), 0 Lux with IR |
Shutter Time | 1/25(1/30) s to 1/50,000 s |
Lens | 3.6mm Angle of View: 76.88°(3.6mm), 99.73°(2.8mm), 50.1°(6mm) |
Lens Mount | M12 |
Angle Adjustment | Pan: 0 - 360°, Tilt: 0 - 90°, Rotation: 0 - 360° |
Day & Night | ICR |
Synchronization | Internal synchronization |
Video Frame Rate | 25 fps (PAL) / 30 fps (NTSC) |
HD Video Output | 1 Analog HD output |
S/N Ratio | More than 52dB |
Working Temperature/Humidity | -40 °C - 60 °C (-40 °F - 140 °F) Humidity 90% or less (non-condensing) |
Power Supply | DC 12V |
Power Consumption | Max. 3.5W |
Weather Proof Ratings | IP66 |
IR Range | Up to 65ft |
Dimensions | 89.6x59.1 (3.53"x2.33") |
Weight | 400g (0.88lb) |
