| Product Highlights | |
| Technology | IP/Network |

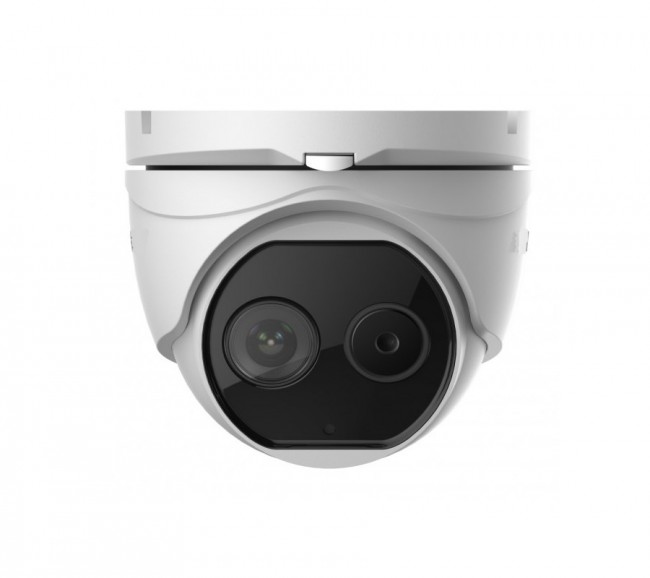

- Thermal-Optical DeepinView Turret
- 160x120 Resolution (Upscaled to 320x240)
- Vanadium Oxide Uncooled Focal Plane Arrays
- NETD <40 mK
- 2.1mm Thermal Lens
- Digital Detail Enhancement
- Temperature Range: -4° to 302° F
- Temperature Accuracy:±14° F
- 15 Pseudo Color Palettes Available
- DC12V, PoE
Details
| MODEL | NTD1217-2/V1 |
| Thermal Module | |
| Image Sensor | Vanadium Oxide Uncooled Focal Plane Arrays |
| Max Resolution | 160x120 (the resolution of output image is 320x240) |
| Pixel Interval | 17μm |
| Response Waveband | 8μm to 14μm |
| NETD | less than 40 mk (@25°C,F#=1.1) |
| Lens (Focal Length) | 1.8mm |
| MRAD | 9.44 mrad |
| Field of View | 90° × 66.4° (H × V) |
| Min Focusing Distance | 0.1m |
| Aperture | F1.1 |
| Optical Module | |
| Max Image Resolution | 1920x1080 |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Min Illumination | Color: 0.002 Lux @ (F1.2, AGC ON), B/W: 0.0002 Lux @ (F1.2, AGC ON) |
| Shutter Speed | 1s to 1/100,000s |
| Lens | 2.1mm |
| Field of View | 101.2° × 77° (H × V) |
| WDR | 120dB WDR |
| Day & Night | IR Cut Filter with Auto Switch |
| Image Function | |
| Bi-spectrum Image Fusion | Fusion view of thermal view and overlaid details of the optical channel |
| Picture in Picture | Combines details of thermal and optical image PIP |
| Network | |
| Main Stream | Visible Light: 60Hz: 30FPS (1920x1080), 30FPS (1280x960), 30FPS (1280x720) Thermal: 25FPS (160x120 (the resolution of output image is 320x240)) |
| Sub Stream | Visible Light: 60Hz: 30FPS (704x480), 30FPS (352x240) Thermal: 25FPS (160x120 (the resolution of output image is 320x240)) |
| Video Compression | H.265+ / H.264+ |
| General | |
| Operating Conditions | -40°C ~ 60°C (-40°F ~ 140°F) |
| Power Supply | 12VDC, PoE (802.3af) |
| Power Consumption | Max. 8.5W |
| Ingress Protection | IP67 |
| IR Range | Approx. 50 FT |
| Dimension | 5.45" x 5.45" x 4.85" |
| Weight | 2 LBS |
