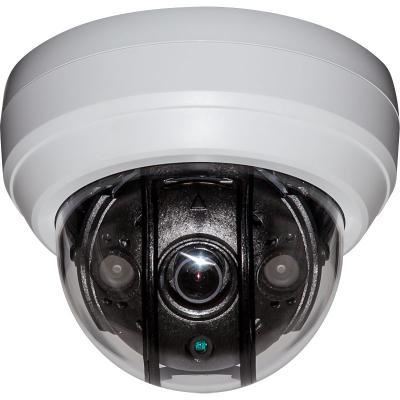

HD-TVI 1080p SUPERDOME® IR Dome Camera 4.3mm (TDR-2522)

SKU: 141462
MPN: TDR-2522

Accepted Payments

A Great HD-TVI Outdoor Vandal resistant security Camera, with 1080p Full HD picture quality and night vision capabilities, This TVI dome camera is weatherproof and has WDR feature, a fixed lens 4.3mm and capable of transmitting HD real time signal at over 500ft
Live chat
Have a question? ASK AN EXPERT, Call 877-366-2444
Chat Live (Mon–Fri 8am–6pm CT)


  • HD-TVI - High Definition Transport Video Interface 1080p FULL HD Flawless Video
  • 1/2.9” Sony CMOS
  • 4.3mm Fixed Lens
  • 0 Lux at IR On (High Power LED 2 pcs)
  • OSD Controlled
  • Smart IR / DNR (Digital Noise Reduction) / True Day & Night (ICR)
  • RS-485 Option
  • Easy Installation
  • DC 12V only


TDR 2522
Resolution 1080p, 720p, 720p CROP
Sensor 1/2.9 inch Sony CMOS
Total Pixels 2000(H) × 1241(V) = 2,482,000
Effective Pixels 1944(H) × 1092(V) = 2,122,648
Scanning System Progressive
S/N (Y Signal) More then 52 dB (AGC Off)
Video Output TVI / (CVBS: 1.0Vp-p (75ohm):Option)
Min. Illumination 0 Lux at IR On
White Balance Auto / Auto Ext / Preset / Manual
Shutter Auto / Manual (1/30sec ~ 1/60,000sec)
Brightness Adjustable (0~20 Step)
Sens Up OFF / X2 / X3 / X4 / X5 / X6 / X7 / X8
DNR OFF / Low / Middle / High
Backlight OFF / WDR / BLC / HLM
ACE OFF / Low / Middle / High
Day & Night Auto (Day <--> Night Time Change), Color, B/W, Extern, MDIR (Search Option)
Privacy OFF / ON (16 Zone)
Motion OFF / SET
Digital Zoom 0~127
Flip OFF / ON
Freeze OFF / ON
Language English, Chinese, Chinese(S), Japanese, Korean
Sharpness Adjustable (0~10 Step)
Defog OFF / SET
Communication Port RS-485 (Pelco-D)
Smart IR Adjustable (0~20 Step)
Operating Temp / Humidity -10°C ~ +50°C(14°F ~ 122°F) / 30%~80% RH
Storage Temp / Humidity -20°C ~ +60°C(-4°F ~ 140°F) / 20%~90% RH
Power DC 12V Only
Signal Transmission The distant difference is occurred according to cable option and other circumstances. (Coaxial Cable 300M)
Write your own review
  • Only registered users can write reviews
  • Bad
  • Excellent
Products specifications
Camera Features WDR
Lens 4.3mm
Resolution 2MP/1080p
Technology HD-TVI
