16 HD-SDI Magic DVR Replacement - Thursday, April 29, 2021
16ch HD-SDI EX-SDI DVR is now available, up to 8MP EX-SDI and up to 4MP SDI camera support now in stock as a Magic DVR replacement.

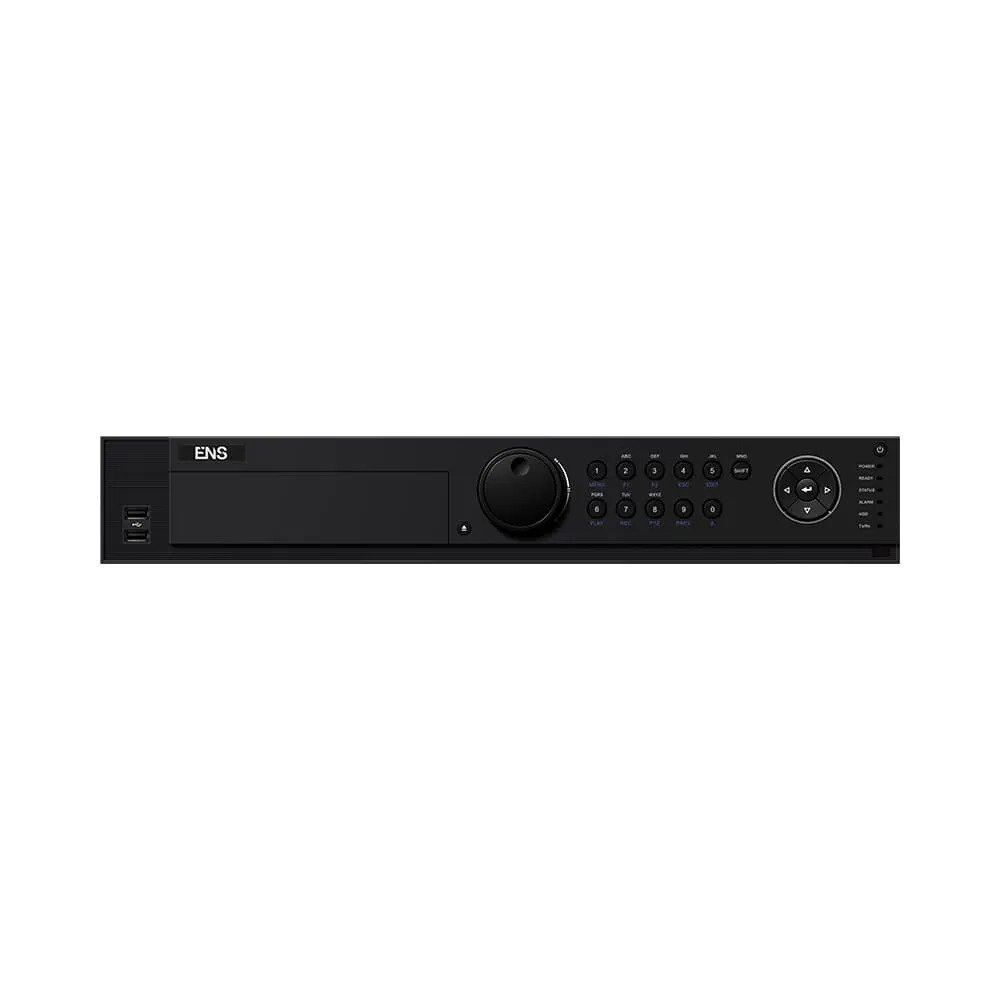

All-in-One 32Ch 4K HD TVI DVR 8MP + 48Ch IP (SD5432/48I-K)

SKU: 171837
MPN: SD5432/48I-K
Availability: In stock

Accepted Payments

4K 32Ch Hybrid All-in-One HD-TVI DVR SD5432/48I-K is a 32Ch video recorder, supporting 5 different technologies HD-TVI, CVI, A-HD, Analog And IP Cameras making the SD5432/48I-K the perfect high definition DVR for commercial or residential install, with H.265+ video compression This DVR supports up to 16 4K 8MP ultra HD cameras over coax and 48 additional IP cameras. clear and smooth video on mobile remote view and playback for both iOS and Android mobile devices.
Live chat
Have a question? ASK AN EXPERT, Call 877-366-2444
Chat Live (Mon–Fri 8am–6pm CT)

Super high resolution 32Ch TVI Hybrid DVR, the SD5432/48I-K is a sate of the are Hivision technology with support to 32 cameras over coax / BNC and up to additional 48 IP cameras with up to 4K 8MP resolution, 3 years standard warranty and unmatched tech support.

    • All In one HDTVI/AHD/CVI/CVBS/IP video input
    • H.265 Pro /H.265 Pro/H.265 video compression
    • Up to 48-ch IP camera inputs (up to 8 MP)
    • Max. 800 m for 1080p and 1200 m for 720p HDTVI signal transmission
    • Up to 10 TB capacity per HDD with up to 4 SATA Drives
    • Support POS triggered recording and POS information overlay.
    • H.265 Pro can be enabled to improve encoding efficiency and reduce data storage costs
    • Recording at up to 8 MP resolution
    • 1 eSATA interface.
    • Smart search for efficient playback
    • Support the third party cloud storage (Dropbox/Google Drive/Microsoft OneDrive)
    • Hot-swappable HDD supporting RAID 0, RAID 1, RAID 5, RAID 6 and RAID 10 storage scheme.
    • Support multiple VCA (Video Content Analytics) events for both analog and smart IP cameras
    • Support line crossing detection and intrusion detection, sudden scene change detection;
    • ENS Vision & DDNS (Dynamic Domain Name System) for easy network management
    • Output bandwidth limit configurable


Max Recording Resolution

8MP / 4K

Number of Cameras Supported

32 Channel DVR

NDAA Compliance


Recorder Features

Intrusion, Line Cross / Trip Wire

Hard Drives Supported


RAID Support


Video Outputs


Audio Inputs


Alarm I/O Ports



7.72 lbs


Write your own review
  • Only registered users can write reviews
  • Bad
  • Excellent
Existing reviews
very impressive, and well made
this DVR is honestly 10 times better than the one we spent 4000 on, the performance is just amazing, excellent picture quality, mobile app all work flawlessly, also extremely happy dealing with Veotron, instant response on support.
From: Guest | Date: 6/21/2022 2:18 PM
Was this review helpful? Yes No (0/0)
Products specifications
Resolution 8MP 4K
Number of Channels 32Ch
Technology HD-TVI
Technology Hybrid
