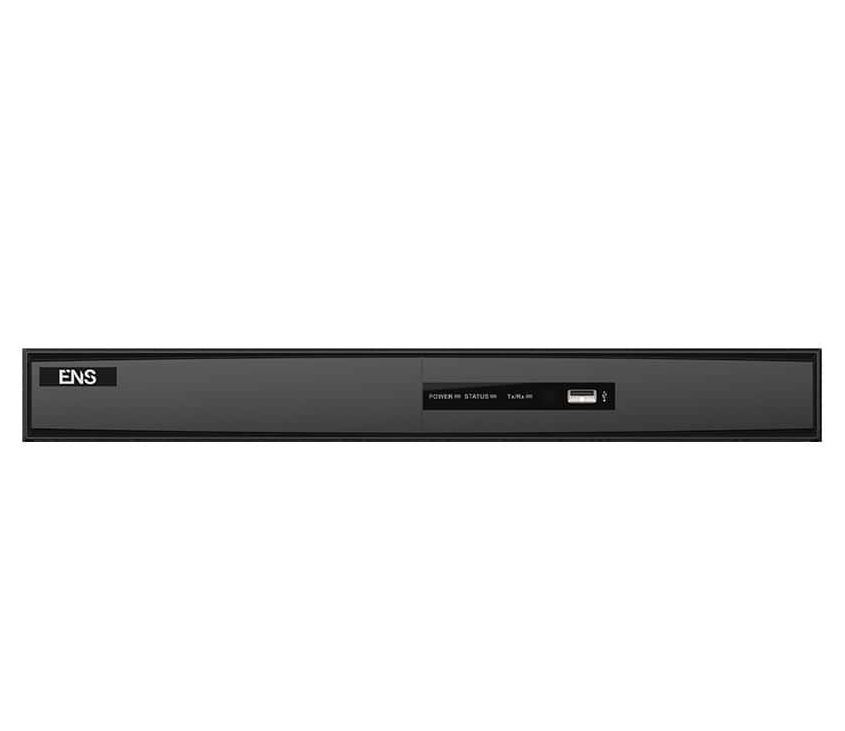

Super high resolution 16Ch TVI Hybrid DVR, the SD5216/32I-K is a sate of the are Hivision technology with support to 16 cameras over coax / BNC and up to additional 32 IP cameras with up to 4K 8MP resolution, 3 years standard warranty and unmatched tech support.
- H.265 Pro+/H.265 Pro/H.265 video compression
- HDTVI/AHD/CVI/CVBS/IP video input
- Up to 32-ch IP camera inputs (up to 8 MP)
- Max. 800 m for 1080p and 1200 m for 720p HDTVI signal transmission
- Up to 10 TB capacity per HDD
- H.265 Pro+ can be enabled to improve encoding efficiency and reduce data storage costs
- Recording at up to 8 MP resolution
- Smart search for efficient playback
- Support the third party cloud storage (Dropbox/Google Drive/Microsoft OneDrive)
- Support multiple VCA (Video Content Analytics) events for both analog and smart IP cameras
- Support line crossing detection and intrusion detection, sudden scene change detection; Only support 2MP(or less than 2) signal input 2K/4K output will be unavailable.
- Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
- Max. 128Mbps incoming bandwidth and output bandwidth limit configurable
| System Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Video Interface | 16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
| Video Resolution | VGA: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz HDMI: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| HDTVI Camera Input | 8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25 |
| HDCVI Camera Input | 4 MP, 1080p25, 1080p30, 720p25, 720p30 |
| AHD Camera Input | 5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30 |
| CVBS Camera Input | PAL/NTSC |
| CVBS Output | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
| IP Camera Input | 16-ch (up to 32-ch) Up to 8 MP resolution |
| Bit Rate | 32 Kbps to 10 Mbps |
| Recording Resolution | 8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF |
| Recording Frame Rate |
Main stream: |
| Record Stream | Dual stream recording |
| Playback Channels | 16CH |
| Audio Compression | G.711u |
| Audio Bit Rate | 64 Kbps |
| Audio In | 4-ch, RCA (2.0 Vp-p, 1 KΩ) |
| Audio Out | 1-ch, RCA (Linear, 1 KΩ) |
| 2 Way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input) |
| Alarm In | 16 |
| Alarm Out | 4 |
| Network Interface | 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface |
| Incoming Bandwidth | 128Mbps |
| Network Protocol | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
| Remote Connections | 128 |
| RS485 | RS-485 (half-duplex) |
| USB | Front panel: 1 × USB 2.0 Rear panel: 1 × USB 3.0 |
| Power Supply | 12 VDC |
| Power Consumption | ≤ 25 W |
| Internal HDD | 2 SATA interface Up to 10 TB capacity for each disk |
| Operating Conditions | -10 °C to +55 °C (+14 °F to +131 °F) Working humidity 10% to 90% |
| Storage Conditions | -10 °C to +55 °C (+14 °F to +131 °F) |
| Dimensions | 380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch) |
| Weight | ≤ 2 kg (4.4 lb) (without HDD) |
Products specifications
| Number of Channels | 16Ch |
| Resolution | 4K 8MP |
| Technology | HD-TVI, Hybrid |
