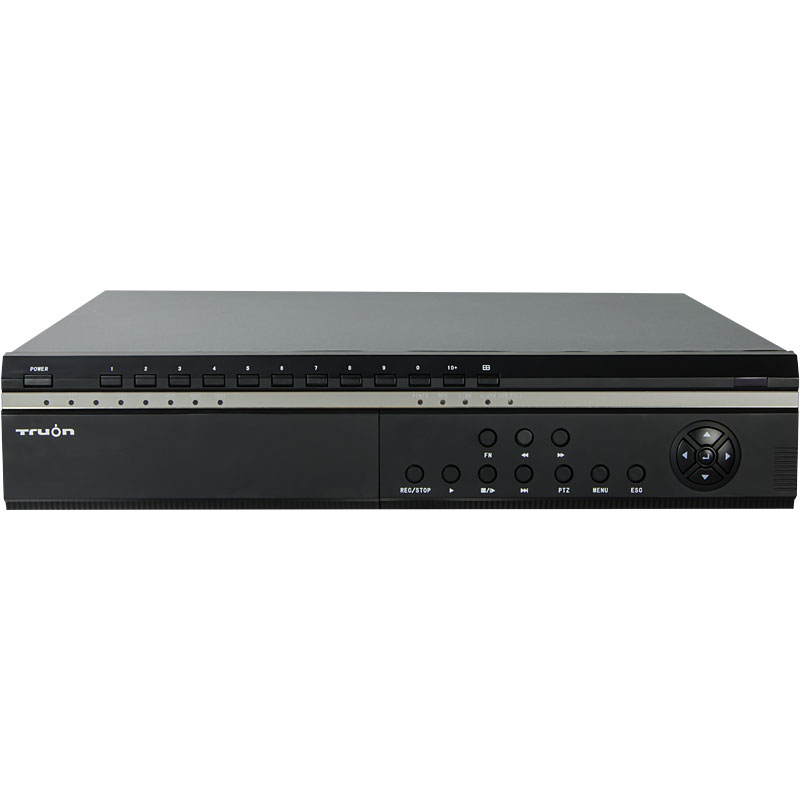

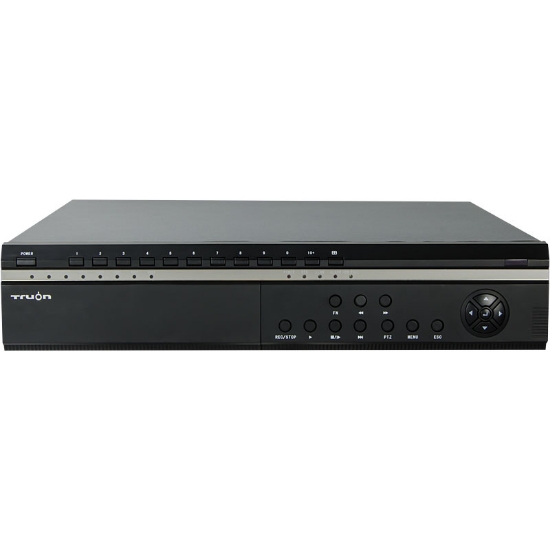

Truon 32Ch Hybrid Network Video Recorder 16 IP Cameras + 16 Analog (NVST-SR632H)

SKU: 141397

Accepted Payments

NVST-SR632H is 32Ch a hybrid video recorder that recorder from analog and digital IP at the same time, with support to record from IP network megapixel (up to 5MP) cameras and standard cctv analog cameras at D1 resolution the NVST-SR632H is great NVR if you are expanding your analog cameras system, as you my keep some of your existing cameras and add new HD IP cameras. with multiple output option VGA, HDMI and BNC and capacity for 8 SATA drives.
Live chat
Have a question? ASK AN EXPERT, Call 877-366-2444
Chat Live (Mon–Fri 8am–6pm CT)





  • NVR mode : Max 32CH D1 / 22CH 720p / 16CH 1080p
  • Hybrid mode : Max 16CH Analog + 16CH D1 / 8CH 720p / 4CH 1080p
  • Up to 5 Megapixel resolution
  • HDMI / VGA / BNC simultaneous video output
  • 16 channel synchronous realtime playback
  • ONVIF Version 2.0/2.1/2.2
  • Support 8 SATA HDDs up to 3TB
  • Multiple network monitoring: Web viewer, CMS & Mobile



Operating System Embedded LINUX
Video & Audio
IP Camera Input (NVR mode ) 32 channel
Max 16CH@1080P or 22CH@720P or 32CH@D1
IP Camera Input (Hybrid mode) 16 channel
Max 4CH@1080P or 8CH@720P or 8CH@D1
Analog Camera Input 16 channel, BNC(1.0Vp-p,75ohms),PAL/NTSC Optional
Two-way Talk 1 channel Input, 1 channel Output, BNC
Interface 1 HDMI, 1 VGA, 1 BNC
Resolution 800×600;1024×768;1280×1024;1440×900;1920×1080
Display Split 1/4/9/16/25/32
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
IP Camera Recording
Compression H.264 (High [email protected]) / MPEG-4
Resolution 5MP(2560×1920) / 3MP(2048×1536) / 1080P(1920×1080) / 720P(1280×720) / D1 (704×576/704×480)
Record Rate 32 Kbps-16384 Kbps, or user defined (Max. 16384 Kbps)
Dual Stream support(sub-stream ≤ 4CIF)
Record Mode Manual, Schedule(Regular(Continuous), MD, Alarm), Stop
Record Interval 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Analog Camera Recording
Compression H.264
Resolution 960H(960×576/960×480)/D1(704×576/704×480)/CIF(352×288/352×240)
Record Rate 48Kbps~2048Kbps / 48Kbps~3072Kbps(960H)
Frame Rate 25fps (PAL) / 30fps (NTSC)
Dual Stream support
Record Mode Manual, Schedule(Regular(Continuous), MD, Alarm), Stop
Record Interval 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Video Detection & Alarm
Trigger Events Recording, Alarm, Video Push, Email, Buzzer
Video Detection Motion Detection,Video Loss,HDD Loss
Alarm Input 16 channel
Relay Output 3 channel
Playback & Backup
Sync Playback 1/4/9/16
Search Mode Time/Date, Alarm, MD & Exact search (accurate to second)
Playback Functions Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode USB Device / Network
Ethernet RJ-45 port (10/100M)
Network Functions HTTP, IPv4/IPv6, TCP/IP, UPNP, DHCP, DNS, PPPOE, DDNS
Max.User Access 20 users
Mobile Phone IPhone, IPad, Android
Internal HDD 8 SATA ports, up to 3TB
Auxiliary Interface
USB Interface 3 ports (1 Rear), USB2.0
RS232 Yes
RS485 1 port, For PTZ control
Power Supply DC12V/2A
Power Consumption 20W(without HDD)
Working Environment -10 ~+55°C / 10~90%RH / 86~106kpa
Dimension(W×D×H) 1.5U,375×378×65 (mm)

IMSEye Mobile App Available :

iOS App Android App

Video tutorial how to set up IMSEye Mobile App

IMSEye Installation Video
