FEATURES
- NVR mode : Max 16CH D1 / 16CH 720p / 16CH 1080p
- Hybrid mode : Max 8CH Analog + 8CH D1 / 8CH 720p / 4CH 1080p
- Up to 5 Megapixel resolution
- HDMI / VGA / BNC simultaneous video output
- 16 channel synchronous realtime playback
- ONVIF Version 2.0/2.1/2.2
- Support 2 SATA HDDs up to 3TB
- Multiple network monitoring: Web viewer, CMS & Mobile
SPECIFICATIONS

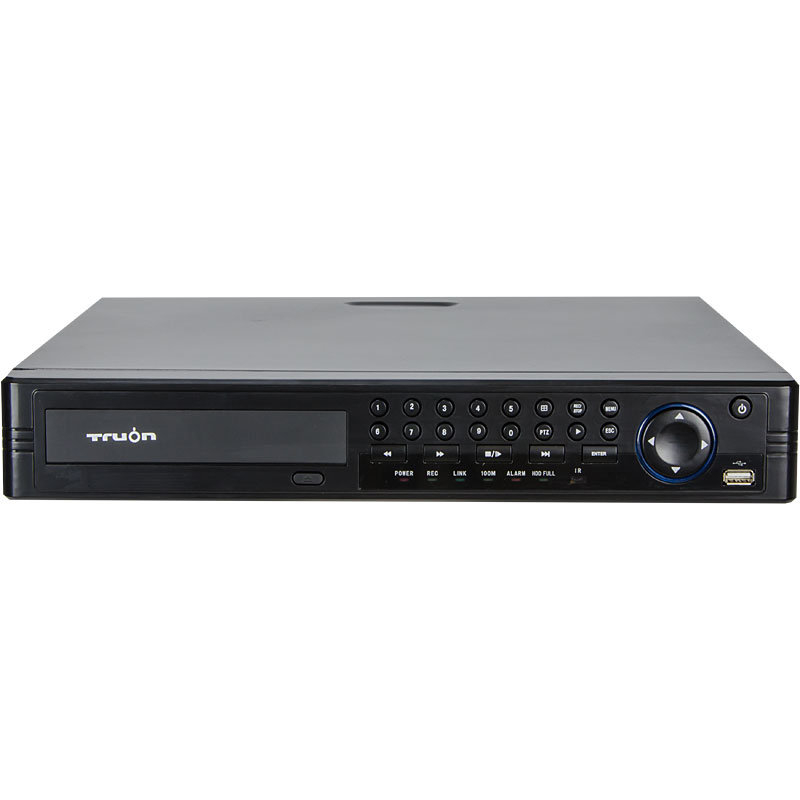

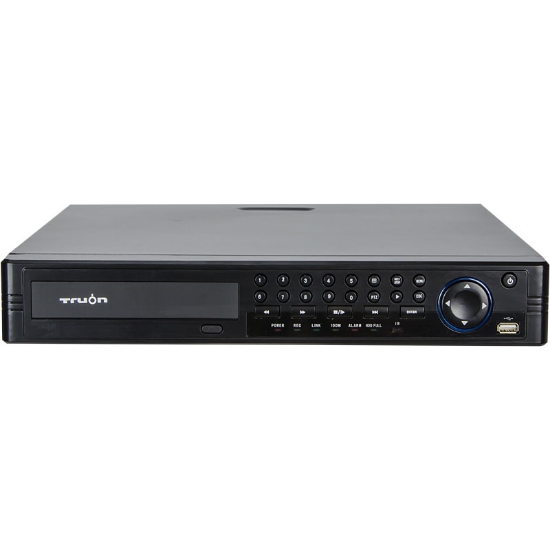

| NVST SR616H | |
| System | |
| Operating System | Embedded LINUX |
| Video & Audio | |
| IP Camera Input (NVR mode ) | 16 channel |
| Max 16CH@1080P or 16CH@720P or 16CH@D1 | |
| IP Camera Input (Hybrid mode) | 8 channel |
| Max 4CH@1080P or 8CH@720P or 8CH@D1 | |
| Analog Camera Input | 8 channel, BNC(1.0Vp-p,75ohms),PAL/NTSC Optional |
| Two-way Talk | 1 channel Input, 1 channel Output, BNC |
| Display | |
| Interface | 1 HDMI, 1 VGA, 1 BNC |
| Resolution | 800×600;1024×768;1280×1024;1440×900;1920×1080 |
| Display Split | 1/4/9/16 |
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
| IP Camera Recording | |
| Compression | H.264 (High [email protected]) / MPEG-4 |
| Resolution | 5MP(2560×1920) / 3MP(2048×1536) / 1080P(1920×1080) / 720P(1280×720) / D1 (704×576/704×480) |
| Record Rate | 32 Kbps-16384 Kbps, or user defined (Max. 16384 Kbps) |
| Dual Stream | support(sub-stream ≤ 4CIF) |
| Record Mode | Manual, Schedule(Regular(Continuous), MD, Alarm), Stop |
| Record Interval | 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
| Analog Camera Recording | |
| Compression | H.264 |
| Resolution | 960H(960×576/960×480)/D1(704×576/704×480)/CIF(352×288/352×240) |
| Record Rate | 48Kbps~2048Kbps / 48Kbps~3072Kbps(960H) |
| Frame Rate | 25fps (PAL) / 30fps (NTSC) |
| Dual Stream | support |
| Record Mode | Manual, Schedule(Regular(Continuous), MD, Alarm), Stop |
| Record Interval | 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
| Video Detection & Alarm | |
| Trigger Events | Recording, Alarm, Video Push, Email, Buzzer |
| Video Detection | Motion Detection,Video Loss,HDD Loss |
| Alarm Input | 8 channel |
| Relay Output | 3 channel |
| Playback & Backup | |
| Sync Playback | 1/4/9/16 |
| Search Mode | Time/Date, Alarm, MD & Exact search (accurate to second) |
| Playback Functions | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom |
| Backup Mode | USB Device / Network |
| Network | |
| Ethernet | RJ-45 port (10/100M) |
| Network Functions | HTTP, IPv4/IPv6, TCP/IP, UPNP, DHCP, DNS, PPPOE, DDNS |
| Max.User Access | 20 users |
| Mobile Phone | IPhone, IPad, Android |
| Storage | |
| Internal HDD | 2 SATA ports, up to 3TB |
| Auxiliary Interface | |
| USB Interface | 3 ports (1 Rear), USB2.0 |
| RS232 | Yes |
| RS485 | 1 port, For PTZ control |
| General | |
| Power Supply | DC12V/2A |
| Power Consumption | 10W(without HDD) |
| Working Environment | -10 ~+55°C / 10~90%RH / 86~106kpa |
| Dimension(W×D×H) | 1.5U,375×378×65 (mm) |
Products specifications
| Technology | Hybrid, IP/Network |
| Number of Channels | 16Ch |
