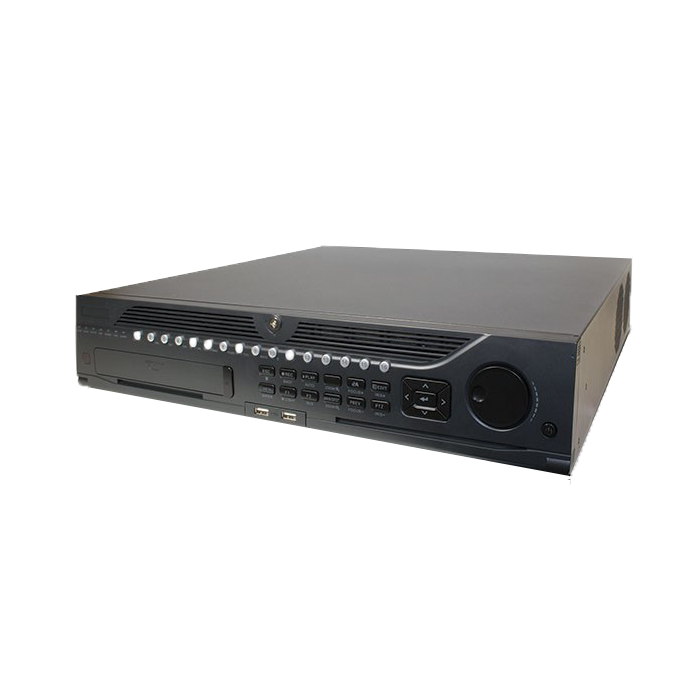

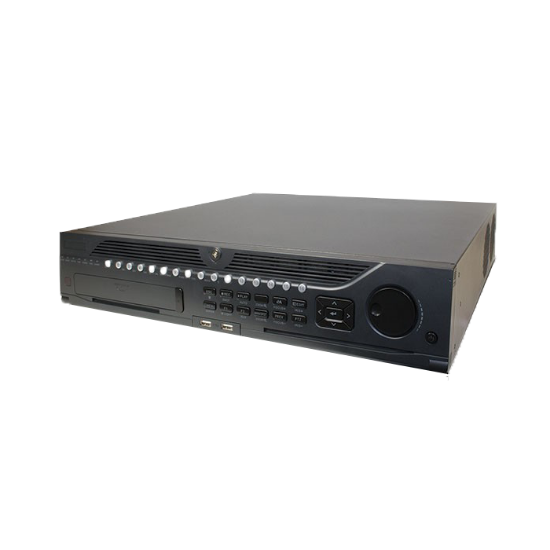

- 64-Channel Network Video Recorder
- Video Input: 64 IP channels @ 200 Mbps
- Video Output: BNC, VGA, HDMI up to 1920 x 1080p
- Pentaplex Operation: Record, Playback, Backup, Live & Remote Access
- Recording Resolution: Up to 6 MP (3072 x 2048)
- Recording Mode: Manual, Schedule, Video Detection, Motion Detection, Video Loss, Stop
- Playback Channel: 16
- Playback Resolution: Up to 6 MP (3072 x 2048)
- Audio Channels In/Out: 1 / 2, BNC
- Alarm Channels In/Out: 16 / 4
- Network: 10/100/1000 Mbps, 2 x RJ45
- Storage: 8 x SATA up to 48 TB, RAID, eSATA, 3 x USB, NAS, IP SAN
- Supports 8 POS
- Backup: USB, NAS, or eSATA, DVD-RW
- 2U
| Compression Format | H.264 | ||
| OS | Embedded Linux | ||
| IP Video Input | 64 channels, up to 160 Mbps | ||
| VGA Output | 1 channel, resolution: 1920 x 1080 / 60 Hz, 1600 x 1200 / 60 Hz, 1280 x 1024 / 60 Hz, 1280 x 720 / 60 Hz, 1024 x 768 / 60 Hz |
||
| CVBS Output | 1 ch, BNC (1.0 Vp-p, 75 Ω) | ||
| HDMI Output | 1 ch, resolution: 1920 × 1080 / 60 Hz, 1920 × 1080 / 50 Hz, 1600 × 1200 / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz |
||
| Recording Resolutions | 6 MP / 3 MP / 2 MP / 1080p / 720p / VGA / D1 / VGA / DCIF / 2CIF / CIF / QCIF | ||
| Simultaneous Playback | 16 channels | ||
| Playback Resolution | 6 MP / 3 MP / 2 MP / 1080p / 720p / VGA / D1 / VGA / DCIF / 2CIF / CIF / QCIF | ||
| Dual Stream | Main and Sub-Streams | ||
| Audio Input | 1 ch BNC | ||
| Audio Output | 1 ch BNC | ||
| Backup Format | MP4 | ||
| SATA | 8 x SATA Interfaces for 8 x HDDs | ||
| e-SATA | 1 x eSATA Interface | ||
| Capacity | Up to 6 TB capacity for each disk | ||
| Array type | RAID 0, 1, 5, 10 supported | ||
| Number of arrays | 4 | ||
| Number of virtual disks | 8 | ||
| Network Interface | 2 x RJ45 10/100/1000 Mbps adaptive Ethernet | ||
| USB Interface | 3 x USB 2.0 Interfaces | ||
| Serial Interface | 1 x RS-485, 1 x RS-232 | ||
| Alarm Input Channels | 16 | ||
| Alarm Output Channels | 4 | ||
| Mobile App | NVMS7000 for iPhone / iPad / Android | ||
| Power Supply | 100 ~ 240V AC | ||
| Consumption | ≤ 45 W (without hard disk) | ||
| Operating Temperature | 14 to 131° F (-10° to 55° C) | ||
| Humidity | 10% to 90% | ||
| Dimensions | 17.52 x 18.5 x 3.54" (445 x 470 x 90 mm) | ||
| Weight (without HDD or DVD-R/W) |
≤ 17.64 lb (8 kg) | ||
Products specifications
| Technology | IP/Network |
