Manufacturer: LTS Security

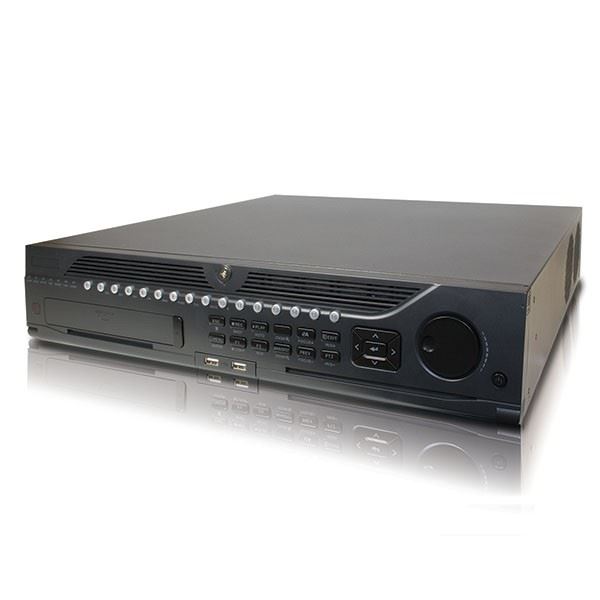

Enterprise 64CH IP NVR Recorder (LTN9664-R)

SKU: 121704
MPN: LTN9664-R
$2,479.95
$2,989.99

LTN9664-R is An enterprise level 64Ch Network IP NVR, with up to 64 IP cameras at a resolution up to 5MP, a stand-alone 64 Channel IP Cameras DVR with storage to up to 32TB (8 SATA Hard drives with easy front lockable access and installation), Real time Recording @ 1920x180p, VGA and HDMI Full HD outputs, Dual Gigabit Ethernet and RAID support. a remarkable enterprise solution with 3 Years warranty.

Storage calculator

Share

Share this link via

Or copy link

  • Pay with Ease
    •
    •
    •
    •
  • Secure SSL Encryption
  • Fast, Insured Shipping
  • 30-Day Money-Back Guarantee
  • Hassle-Free Warranty
  • Lifetime Customer Support
Free shipping
Product Highlights
Number of Channels64Ch
TechnologyIP/Network

Key Features

  • Third-party network cameras supported
  • Up to 5 Megapixels resolution recording
  • HDMI and VGA output at up to 1920×1080P resolution
  • Up to 8 SATA interfaces
  • HDD quota and group management
  • Dual gigabit network interfaces
  • RAID 0,1,5,10 supported



 Specifications

LTN9664-R
SystemCompression FormatH.264
OSEmbedded Linux
Video/ Audio
Output		IP Video Input64-ch, Max 160Mbps Input
VGA Output1-ch, resolution:
1920×1080P/60Hz,1600×1200/60Hz,1280×1024/60Hz,
1280×720/60Hz, 1024×768/60Hz
CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω)
HDMI Output1-ch, resolution:
1920 × 1080P /60Hz, 1920 × 1080P /50Hz, 1600 × 1200 /60Hz,
1280 × 1024 /60Hz, 1280 × 720/60Hz, 1024 × 768 /60Hz
Recording Resolution5MP / 3MP / 2MP / 1080P / 720P / VGA / D1 / VGA / DCIF / 2CIF / CIF / QCIF
Simultaneous Playback64-ch
Playback Resolution5MP / 3MP / 2MP / 1080P / 720P / VGA / D1 / VGA / DCIF / 2CIF / CIF / QCIF
Dual StreamMain and Sub-Streams
Audio Input1-ch BNC
Audio Output1-ch BNC
Backup FormatMP4
StorageSATA8 SATA Interfaces for 8HDDs
e-SATA1 eSATA Interface
CapacityUp to 4TB capacity for each disk
Array typeRAID 0,1,5,10 supported
Number of array4
Number of virtual disk8
External  InterfaceNetwork Interface1 RJ45 10M/100M/1000M adaptive Ethernet
USB Interface3 USB 2.0 Interfaces
Serial Interface1 RS-485, 1xRS-232
Alarm Input:16
Alarm Output4
GeneralMobile AppNVMS7000 for iPhone/iPad/Android
Power Supply100 ~240VAC
Consumption≤ 45 W (without hard disk)
Working Temperature-10 °C ~ 55 °C
Humidity10%~90%
Dimensions445 × 470 ×90 mm (17.52" ×18.5"× 3.54")
Weight≤ 8 Kg (17.64 lb) ( without hard disk or DVD-R/W )
