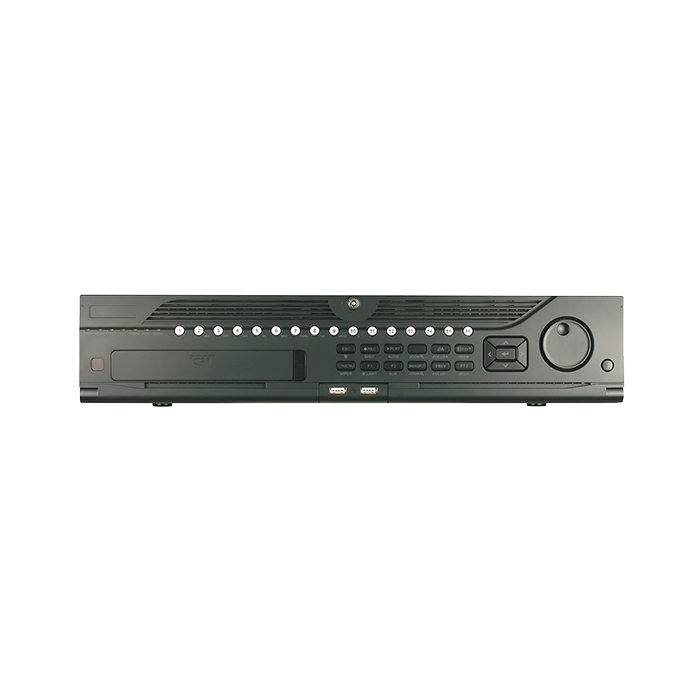

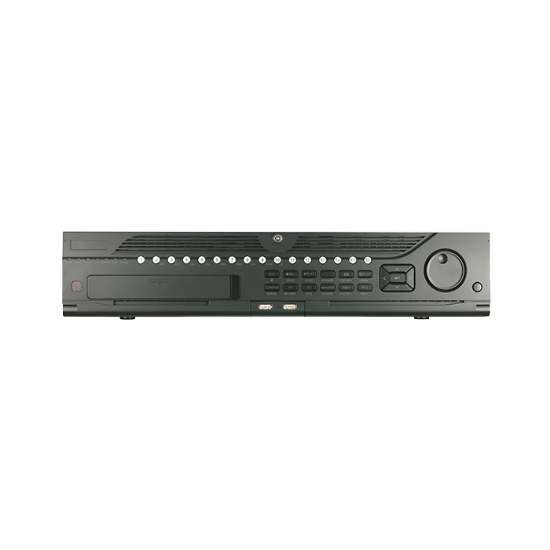

- Platinum 64-Channel Network Video Recorder
- Supports Live View, Recording, Playback of IP Cameras up to 12 MP
- Quad-core CPU
- 320 Mbps Bandwidth
- 4K (3840 x 2160) HDMI Video Output
- Supports 8 x SATA HDDs at up to 10 TB each
- 2 x RJ45 10/100/1000 Mbps Ethernet Interfaces
- RAID 0, 1, 5, 10 + Hot Swapping
- H.264 / H.264 Zip+ / H.265-Ready
| Video / Audio Input | |
| IP Video Input | 64 channels Up to 12 MP resolution |
| Two-Way Audio Input | 1 ch, RCA (2.0 Vp-p, 1 kΩ) |
| Network | |
| Incoming Bandwidth | 320 Mbps or 200 Mbps (when RAID is enabled) |
| Outgoing Bandwidth | 256 Mbps or 200 Mbps (when RAID is enabled) |
| Remote Connections | 128 |
| Video / Audio Output | |
| Recording Resolutions | 3, 4, 5, 6, 8, 12 MP; 1080p; UXGA; 720p; VGA; 4CIF, DCIF, 2CIF, QCIF |
| VGA 1 / HDMI 1 Output | HDMI 1: 4K (3840 × 2160) / 60 Hz, 4K (3840 × 2160) / 30 Hz, 2K (2560 × 1440) / 60 Hz,1920 × 1080 / 60 Hz, 1600 × 1200 / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60Hz VGA 1: 2K (2560 × 1440) / 60 Hz, 1920 × 1080 / 60 Hz, 1600 × 1200 / 60 Hz, 1280 ×1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz |
| VGA 2 / HDMI 2 Output | 1920 × 1080 / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz |
| Audio Output | 2 ch, RCA (2.0 Vp-p, 1 kΩ) |
| Decoding | |
| Decoding Formats | H.264 / H.264+ / H.265 / MPEG4 |
| Recording Resolutions | 3, 4, 5, 6, 8, 12 MP; 1080p; UXGA; 720p; VGA; 4CIF, DCIF, 2CIF, QCIF |
| Synchronous Playback | 16 ch |
| Data Storage | |
| SATA | 8 x SATA interfaces for 8 x HDDs |
| eSATA | 1 x eSATA Interface |
| Capacity | Up to 10 TB capacity for each HDD |
| Disk Array | |
| Array Type | RAID 0 / 1 / 5 / 6 / 10 |
| Number of arrays | 4 |
| Interfaces | |
| Network | 2 x RJ-45 10 /100 /1000 Mbps self-adaptive Ethernet interfaces |
| Serial | RS-232; RS-485; Keyboard; |
| USB | 2 x USB 2.0 on front panel and 1 x USB 3.0 on rear panel |
| Alarm Channels (In/Out) | 16 / 4 |
| General | |
| Power Supply | 100 ~ 240 VAC, 50 - 60 Hz |
| Consumption | ≤ 30 W (without hard drive) |
| Operating Temperature | 14° - 131° F (-10° - 55° C) |
| Operating Humidity | 10% - 90% |
| Housing | 19-inch rack-mounted 2U chassis |
| Dimensions | 17.5 × 18.5 × 3.5" (445 × 470 ×90 mm) |
| Weight | ≤ 22 lb (10 kg, without hard drive) |
Products specifications
| Technology | IP/Network |
| Number of Channels | 64Ch, 4Ch |
