- New, logical, visualized GUI
- Dual-OS design to ensure high reliability of system
- ANR technology to enhance the storage reliability when the network is disconnected
- Streaming over TLS encryption technology (enhanced SDK service and RTP over HTTPS protocol) provides more secure transmission (max. 128 Mbps TLS stream outgoing bandwidth)
- Up to 32 IP cameras can be connected (up to 12 MP)
- Compatible with third-party network cameras
- H.265+ compression effectively reduces the storage use by up to 75%
- Full channel recording at up to 12 MP resolution
- HDMI and VGA independent outputs provided
- HDMI Video output at up to 4K (3840 x 2160) resolutions
- Up to 4 x SATA interfaces for HDD connection
- 16 channels of synchronous playback at up to 1080p resolutions
- Important files management
- HDD health monitoring
- Supports multiple Video Content Analytics (VCA) events
- Smart search for selected areas in video feed; smart playback to improve efficiency
- Supports VCA search for fire, vehicles, temperature differences; detection-triggered video files
- POS information overlay on live view and playback
- POS-triggered recording and alarms
- LTS-Connect for easy network management
- Gigabit Ethernet network interface
|
Model |

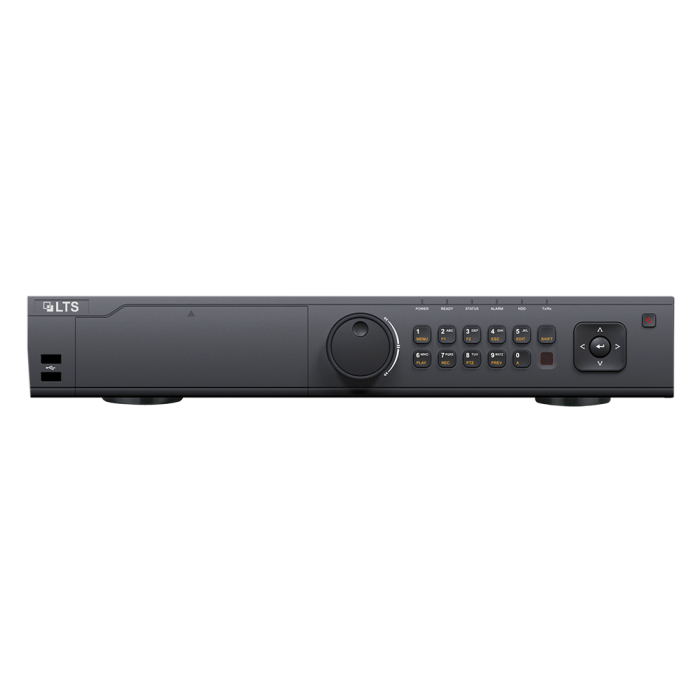

LTN8932H |
|||
|
Video / Audio Input |
IP video input |
32 channels |
||
|
Up to 12 MP resolution |
||||
|
Two-way audio |
1 ch, RCA (2.0 Vp-p, 1 k Ω) |
|||
|
Network |
Incoming bandwidth |
256 Mbps |
||
|
Outgoing bandwidth |
256 Mbps |
|||
|
Remote connections |
128 |
|||
|
Video / Audio Output |
Recording resolution |
3, 4, 5, 6, 8, 12 MP; 1080p; UXGA; 720p; VGA; |
||
|
CVBS output |
1 ch, BNC (1.0 Vp-p, 75 Ω); |
|||
|
|
4K (3840 × 2160) / 60 Hz, 4K (3840 × 2160) / 30 Hz, |
|||
|
VGA output resolution |
2K (2560 × 1440) / 60 Hz, 1920 × 1080p / 60 Hz, |
|||
|
HDMI 2 output resolution |
1920 × 1080 / 60 Hz, 1280 × 1024 / 60 Hz, |
|||
|
Audio output |
1 ch, RCA (Linear, 1 KΩ) |
|||
|
Decoding |
Decoding format |
H.264 / H.264+ / H.265 / H.265+ / MPEG4 |
||
|
Live view / Playback resolution |
3, 4, 5, 6, 8, 12 MP; 1080p; UXGA; 720p; VGA; |
|||
|
Synchronous playback |
16 ch |
|||
|
Capability |
2 ch @ 12 MP (20 fps) / 4 ch @ 8 MP (25 fps) / 8 ch @ 4 MP (30 fps) / 16 ch @ 1080p (30 fps) |
|||
|
Network management |
Network protocols |
TCP/IP, DHCP, LTS-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS |
||
|
Hard disk |
SATA |
4 x SATA interfaces for 4 x HDDs |
||
|
Capacity |
Up to 8 TB capacity for each HDD |
|||
|
eSATA |
1 x eSATA interface |
|||
|
External interface |
Network interface |
2 x RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces |
||
|
Serial interface |
1 x RS-485 (half-duplex), 1 x RS-232 |
|||
|
USB interface |
Front panel: 2 x USB 2.0 |
|||
|
Alarm channels (in/out) |
16 / 4 (16 / 8 option) |
|||
|
General |
Power supply |
100 to 240 VAC |
||
|
Power |
≤ 80 W |
|||
|
Consumption (without hard drive) |
≤ 20 W |
|||
|
Operating temperature |
14° to 131° F (-10° to 55° C) |
|||
|
Operating humidity |
10 to 90 % |
|||
|
Dimensions |
17.5 × 15.7 × 2.8" (445 × 400 ×71 mm) |
|||
|
Weight (without hard drive) |
≤ 11 lb (5 kg) |
|||
| Technology | IP/Network |
| Number of Channels | 32Ch |
