| Product Highlights | |
| Technology | IP/Network |
| Number of Channels | 32Ch |
- Connects up to 32 IP Cameras
- Supports Live View, Storage, Playback up to 12 MP (3072 x 2048)
- HDMI Video Output up to 4K
- 8 x SATA up to 6 TB each
- Supports HDD Quota and Group Modes
| Audio / Video Input | |
| IP Video Input | 32 Channels, Up to 12 MP Resolution |
| Two-Way Audio Input | 1 Channel, RCA (2.0 Vp-p, 1 kΩ) |
| Networking | |
| Incoming Bandwidth | 320 Mbps or 200 Mbps (with RAID enabled) |
| Outgoing Bandwidth | 256 Mbps or 200 Mbps (with RAID enabled) |
| Remote Connections | 128 |
| Audio / Video Output | |
| Recording Resolutions | 3, 4, 5, 6, 8, 12 MP; 1080p; UXGA; 720p; VGA; 4CIF / DCIF / 2CIF / QCIF |
| VGA 1 / HDMI 1 Output | 4K (3840 × 2160) / 60 Hz, 4K (3840 × 2160) / 30 Hz, 1920 × 1080p / 60 Hz, 1600 × 1200 / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz |
| VGA 2 / HDMI 2 Output | 2K (2560 × 1440) / 60 Hz, 1920 × 1080p / 60 Hz, 1600 × 1200 / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz |
| Audio Output | 2 ch, RCA (2.0Vp-p,1kΩ) |
| Decoding | |
| Decoding Format | H.264 / H.265 / MPEG4 |
| Synchronous Playback | 16 Channels |
| Capability | 4 ch @ 4K, or 16 ch @ 1080p |
| Hard Drives | |
| SATA | 8 x SATA interfaces for 8 x HDDs |
| eSATA | 1 x eSATA interface |
| Capacity | Up to 8 TB for Each HDD |
| External Interface | |
| Serial Interface | RS-232; RS-485; Keyboard |
| Alarm Channels In/Out | 16/4 |
| General | |
| Power Supply | 100 ~ 240V AC, 50 - 60 Hz |
| Consumption | ≤30W |
| Operating Temperature | 14º to 131º F(-10º to 55º C) |
| Operating Humidity | 10% - 90% |

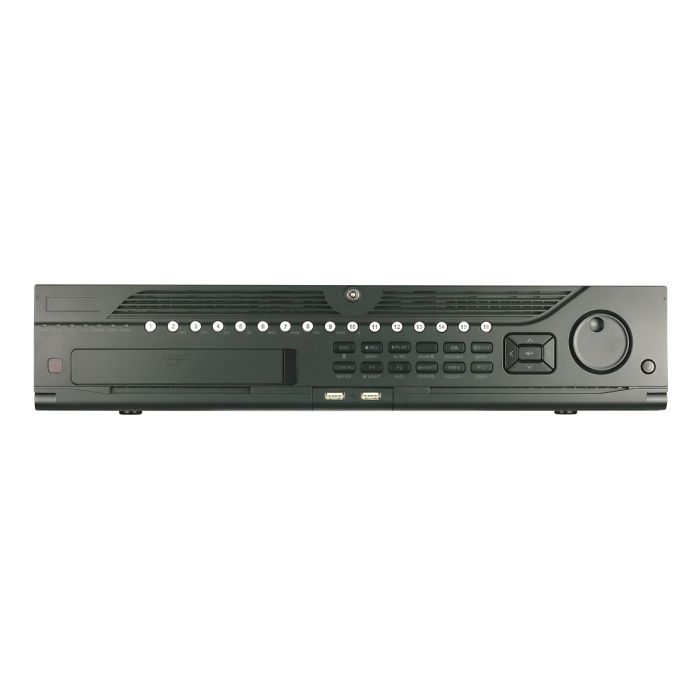

| Housing | 19-Inch Rack-Mounted 2U Casing |
| Dimensions | 17.5 × 18.5 × 3.5" (445 × 470 × 90 mm) |
| Weight | ≤ 22 lbs (10 kg) |
