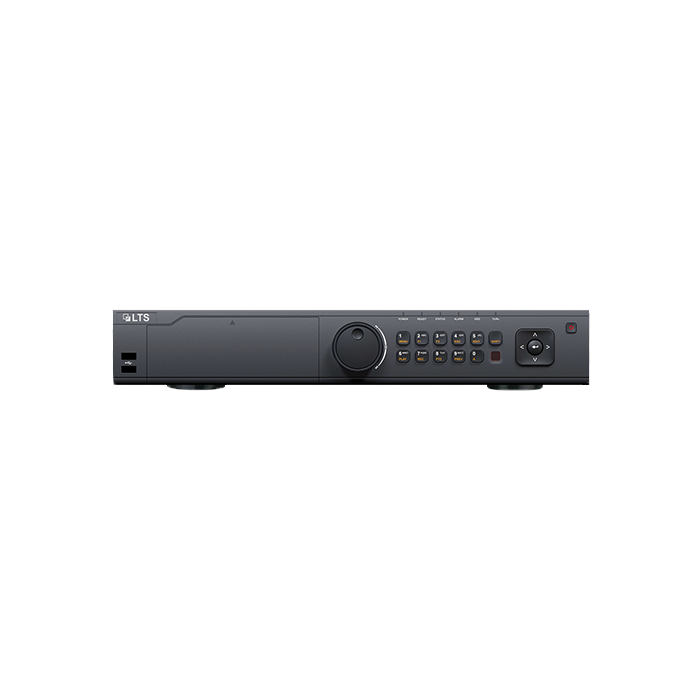

- 32-Channel Network Video Recorder
- Support for Live View, Storage, Playback up to 12 MP IP Camera
- Quad-core CPU
- 256 MB Bandwidth
- 16 Built-in PoE Ports
- 4K (3840 x 2160) HDMI Video Output
- 4 x SATA up to 6 TB each HDD
- H.264 / H.264 Zip+ / H.265 Ready
- 1 channel for CVBS
Video / Audio Input | |
IP Video Input | 32-CH, Up to 12MP Resolution |
Two-Way Audio Input | 1-CH, RCA (2.0 Vp-p, 1kΩ) |
Network | |
Incoming Bandwidth | 160Mbps |
Outgoing Bandwidth | 256Mbps |
Remote Connection | 128 |
Video / Audio Output | |
Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
HDMI Output | 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 ×1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
VGA Output | 1-ch, resolution: 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
Audio Output | 1-CH, RCA (Linear, 1kΩ) |
Decoding | |
Live View/ Playback Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
Synchronous Playback | 16-CH |
Capability | 4-ch @ 4K, or 16-ch @1080p |
Hard Drives | |
SATA | 4 SATA interfaces for 4 HDDs |
Capacity | Up to 8TB for Each Disk |
External Interface | |
Network Interface | 1 RJ-45 10 /100 /1000 Mbps self-adaptive Ethernet interface |
Serial Interface | 1 RS-485 (Half-Duplex), 1 RS-232 |
USB Interface | Front Panel: 2×USB 2.0; Rear Panel: 1×USB 3.0 |
Alarm In/Out | 16/4 |
PoE | |
Interface | 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet Interfaces |
Max Power | 16RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
Supported Standard | IEEE 802.3 af/at |
General | |
Power Supply | 100~240V AC |
Consumption | ≤20W (Without Enabling PoE) |
Working Temperature | +14ºF ~ +131 ºF(-10ºC ~ +55ºC) |
Working Humidity | 10% - 90% |
Casing | 19-Inch Rack-Mounted 1.5U Casing |
Dimension | 17.5"× 15.3" × 2.8"(445 × 390 ×70 mm) |
Weight | ≤11lb (5Kg) |
Products specifications
Technology | IP/Network |
Number of Channels | 32Ch |
