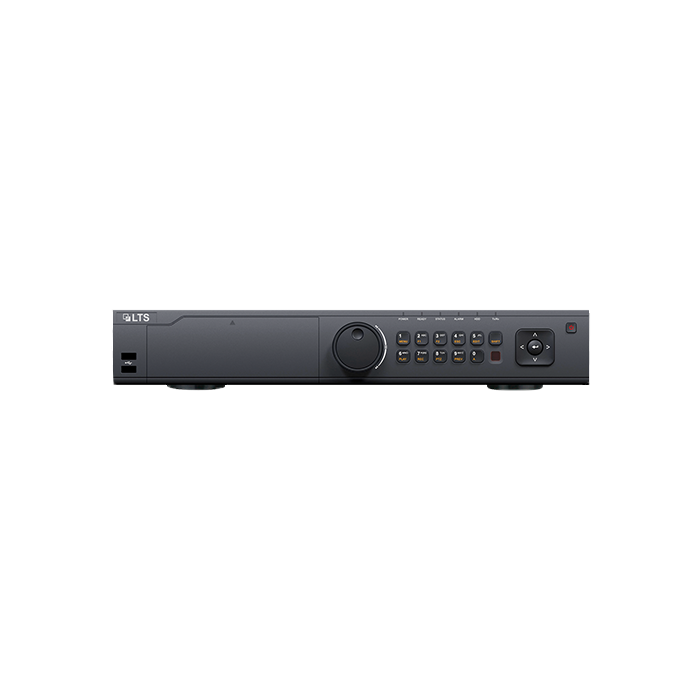

| Product Highlights | |
| Technology | IP/Network |
| Number of Channels | 32Ch |
- Connects up to 32 IP Cameras
- Live View, Storage, Playback up to 12 MP (3072 x 2048)
- HDMI Video Output up to 4K
- 4 x SATA up to 6 TB
- Supports HDD Quota and Group Modes
- 1 ch. CVBS
| Video / Audio Input | |
| IP Video Input | 32 channels, up to 12 MP resolution |
| Two-Way Audio Input | 1 channel, RCA (2.0 Vp-p, 1kΩ) |
| Network | |
| Incoming Bandwidth | 256 Mbps |
| Outgoing Bandwidth | 256 Mbps |
| Remote Connection | 128 |
| Video / Audio Output | |
| Recording Resolution | 12 / 8 / 6 / 5 / 4 / 3 MP; 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
| HDMI Output | 4K (3840 × 2160) / 60 Hz, 4K (3840 × 2160) / 30 Hz, 1920 × 1080p / 60 Hz, 1600 × 1200 / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz |
| VGA Output | 1 channel, resolution: 1920 × 1080p / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz |
| Audio Output | 1 channel, RCA (Linear, 1 kΩ) |
| Decoding | |
| Live View/ Playback Resolution | 12 / 8 / 6 / 5 / 4 / 3 MP; 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
| Synchronous Playback | 16 channels |
| Capability | 4 channels @ 4K, or 16 channels @1080p |
| Hard Drive | |
| Capacity | Up to 8 TB for Each Disk |
| External Interface | |
| Serial Interface | 1 x RS-485 (Half-Duplex), 1 RS-232 |
| Alarm In / Out | 16 / 4 |
| General | |
| Power Supply | 100 ~ 240 V AC |
| Consumption | ≤ 20 W |
| Operating Temperature | 14º to 131º F (-10º to 55º C) |
| Operating Humidity | 10% - 90% |
| Housing | 19-Inch rack-mounted 1.5U casing |
| Dimensions | 17.5 × 15.3 × 2.8" (445 × 390 × 70 mm) |
| Weight | ≤ 11 lb (5 kg) |
