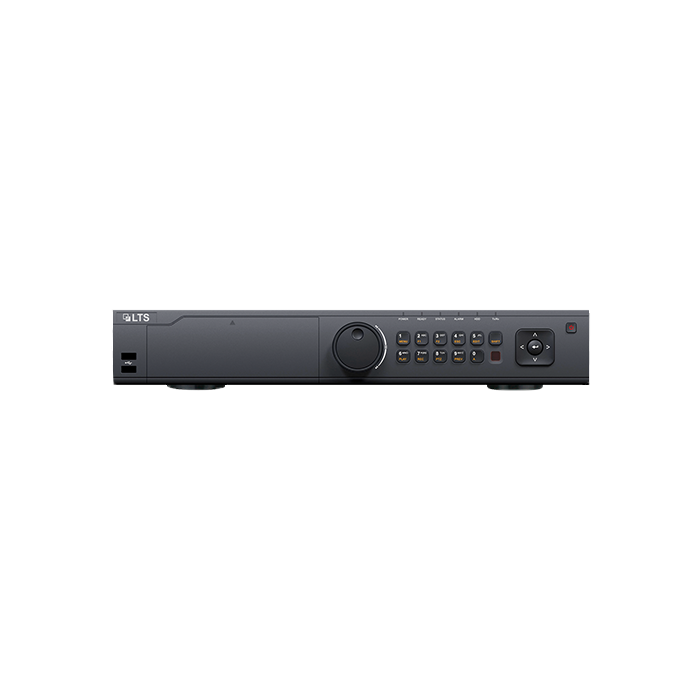

- 16-Channel Network Video Recorder
- Supports Live View, Storage, Playback up to 4K (8 MP) IP Camera
- 160 Mb Bandwidth
- 16 x Built-in PoE Ports
- 4K (3840 x 2160) HDMI Video Output
- 4 x SATA up to 6 TB each HDD
- H.264 / H.264 Zip+
| Audio / Video Input | |
| IP Video Input | 16 Channels |
| Two-Way Audio Input | 1 Channel, RCA (2.0 Vp-p, 1kΩ) |
| Network | |
| Incoming Bandwidth | 160 Mbps |
| Outgoing Bandwidth | 160 Mbps |
| Remote Connections | 128 |
| Audio / Video Output | |
| Recording Resolutions | 3, 4, 5, 6, 8 MP; 1080p; UXGA; 720p; VGA; 4CIF / DCIF / 2CIF / CIF / QCIF |
| HDMI Output | 4K (3840 × 2160) / 20 Hz, 2K (2560 × 1440) / 60 Hz, 1920 × 1080p / 60 Hz, 1600 ×1200 / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz |
| Audio Output | 1 ch, RCA (Linear, 1 kΩ) |
| Decoding | |
| Decoding Formats | H.264 / H.264+ / H.265 / MPEG4 |
| Recording Resolutions | 3, 4, 5, 6, 8 MP; 1080p; UXGA; 720p; VGA; 4CIF / DCIF / 2CIF / CIF / QCIF |
| Synchronous Playback | 16 channels |
| Capacity | 2 ch @ 4K, or 8 ch @ 1080p |
| Hard Drive | |
| SATA | 4 x SATA Interfaces for 4 x HDDs |
| Capacity | Up to 6 TB for Each Disk |
| External Interface | |
| Network Interface | 1 x RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces |
| Serial Interface | 1 x RS-485 (half-duplex), 1 x RS-232, 1 x keyboard (optional) |
| USB Interface | Front panel: 2 x USB 2.0; Rear panel: 1 x USB 3.0 |
| Alarm Channels In/Out | 16 / 4 |
| PoE | |
| Interface | 16 x RJ-45 10/100 Mbps self-adaptive Ethernet interfaces |
| Max. Power | ≤ 200 W |
| Supported Standard | IEEE 802.3 af/at |
| General | |
| Power Supply | 100 ~ 240V AC |
| Consumption | ≤ 20 W |
| Operating Temperature | 14º to +131º F (-10º to 55º C) |
| Operating Humidity | 10% - 90% |
| Housing | 19-Inch Rack-Mounted 1.5U chassis |
| Dimensions | 17.5 x 15.3 x 2.8" (445 x 390 x 70 mm) |
| Weight | ≤ 11 lb (5 kg) |
Products specifications
| Technology | IP/Network |
