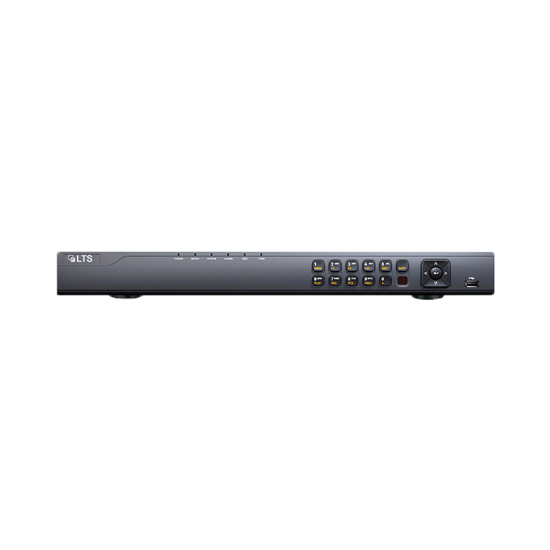

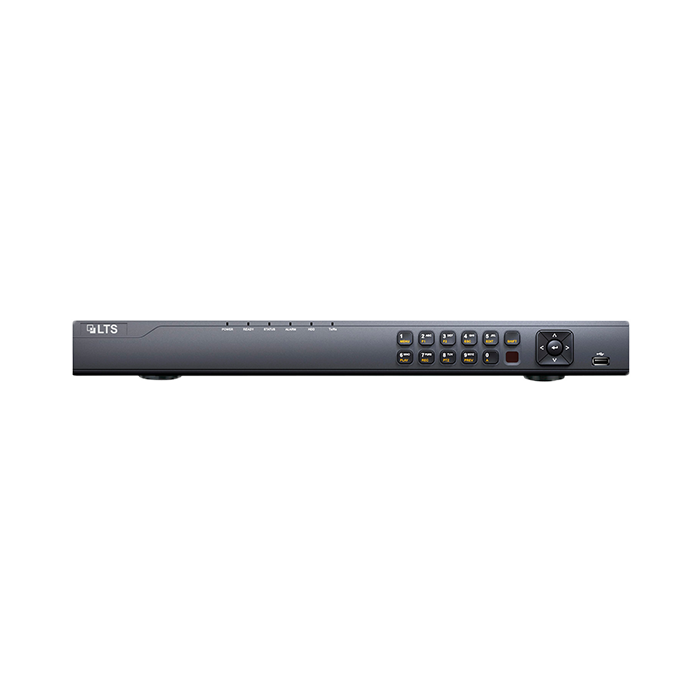

- 16-Channel Network Video Recorder
- Video Input: 16 IP channels @ 160 Mbps
- Video Output: VGA / HDMI up to 1920 x 1080p
- Pentaplex Operation: Record, Playback, Backup, Live & Remote Access
- Recording Resolution: Up to 6 MP (3072 x 2048)
- Recording Mode: Manual, Schedule, Video Detection, Motion Detection, Video Loss, Stop
- Playback Channel: 16
- Playback Resolution: Up to 6 MP (3072 x 2048)
- Audio Channels In/Out: 1 / 1, RCA
- Built-in PoE Channels: 16
- Network: 10/100/1000 Mbps
- Storage: 2 x SATA up to 12 TB / 2 x USB; Support for NAS, IP SAN
- Supports 4 x POS
- Backup: USB or NAS
| Audio / Video Input | |
| IP Video Input | 16 Channels |
| Two-Way Audio Input | 1 channel, RCA (2.0 Vp-p, 1kΩ) |
| Network | |
| Incoming Bandwidth | 160 Mbps |
| Outgoing Bandwidth | 80 Mbps |
| Remote Connections | 128 |
| Audio / Video Output | |
| Recording Resolution | 3, 6 MP; 1080p; UXGA; 720p; VGA; 4CIF / DCIF / 2CIF / CIF / QCIF |
| Frame Rates | Main stream: 50 fps (P) / 60 fps (N) Sub-stream: 50 fps (P) / 60 fps (N) |
| HDMI / VGA Output | 1 ch, resolution: 1920 × 1080 / 60 Hz, 1600 × 1200 / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz,1024 × 768 / 60 Hz |
| Audio Output | 1 ch, RCA (Linear, 1 kΩ) |
| Decoding | |
| Live View / Playback Resolution | 3, 6 MP; 1080p; UXGA; 720p; VGA; 4CIF / DCIF / 2CIF / CIF / QCIF |
| Capacity | 16 ch @ 4 CIF, 12 ch @ 720p, 6 ch @ 1080p |
| Hard Drives | |
| SATA | 2 x SATA interfaces for 2 x HDDs |
| Capacity | Up to 6 TB for each disk |
| External Interface | |
| Network Interface | 1 x RJ-45 10 /100 /1000 Mbps self-adaptive Ethernet interface |
| USB Interface | 1 x USB 2.0 and 1 x USB 3.0 |
| PoE | |
| Interface | 16 independent 100 Mbps PoE network interfaces |
| Max. Power | 200 W |
| Supported Standard | AF and AT |
| General | |
| Power Supply | 100 ~ 240V AC |
| Consumption | ≤ 15 W |
| Operating Temperature | 14º to 131º F (-10º to 55º C) |
| Operating Humidity | 10% - 90% |
| Housing | 19-inch rack-mounted 1U casing |
| Dimensions (W x D x H) |
17.5 × 11.4 × 1.8 inches (445 × 290 × 45 mm) |
| Weight | ≤ 1 kg (2.2 lb) |
Products specifications
| Technology | IP/Network |
| Number of Channels | 16Ch |
