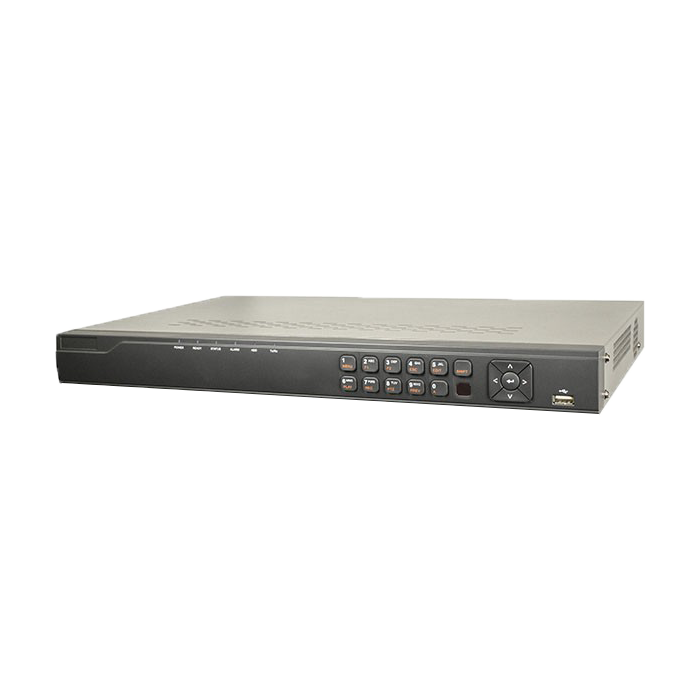

- 8-Channel Network Video Recorder
- Video Input: 8 channels of IP @ 80 Mbps
- Video Output: VGA / HDMI up to 1920 x 1080p
- Pentaplex Operation: Record, Playback, Backup, Live & Remote Access
- Recording Resolution: Up to 6 MP (3072 x 2048)
- Recording Mode: Manual, Schedule, Video Detection, Motion Detection, Video Loss, Stop
- Playback Channels: 8
- Playback Resolutions: Up to 6 MP (3072 x 2048)
- Audio Channels In/Out: 1 / 1, RCA
- Built-in PoE Ports: 8
- Network: 10/100/1000 Mbps
- Storage:
- 2 x SATA up to 12 TB
- 2 x USB, Supports NAS, IP SAN
- Number of POSs Supported: 4
- Backup: USB or NAS
- 1U Chassis
| Video / Audio Input | |
| IP video input | 8 channels |
| Two-way audio input | 1 channel, RCA (2.0 Vp-p, 1kΩ) |
| Network | |
| Incoming bandwidth | 80 Mbps |
| Outgoing bandwidth | 80 Mbps |
| Remote connection | 128 |
| Video / Audio Output | |
| Recording resolutions | 6 / 3 MP; 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
| HDMI / VGA outputs | 1-ch, resolution: 1920 × 1080p / 60 Hz, 1600 × 1200 / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz |
| Audio output | 1 channel, RCA (Linear, 1kΩ) |
| Frame rates | Main stream: 50 fps (P) / 60 fps (N) |
| Sub-stream: 50 fps (P) / 60 fps (N) | |
| Decoding | |
| Live view / Playback resolution | 6 / 3 MP; 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
| Capability | 8 chs. |
| Hard Drives | |
| SATA | 2 x SATA interface for 2 HDD |
| Capacity | Up to 6 TB for each disk |
| External interface | |
| Network interface | 1 x RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| USB interface | 1 × USB 2.0 and 1 × USB 3.0 |
| PoE | |
| PoE Interface | 8 independent 100 Mbps PoE |
| Max. Power | 120 W |
| Standard | AF and AT |
| General | |
| Power supply | 100 ~ 240 V AC, 47 ~ 63 Hz, 3 A |
| Power Consumption | ≤ 10 W (without hard drives) |
| Operating temperature | 14° to 131° F (-10° to 55° C) |
| Operating humidity | 10% ~ 90% |
| Chassis | 19-inch Rack-Mounted 1U Chassis |
| Dimension | 17.5 × 11.4 × 1.8” (445 × 290 × 45 mm) |
| Weight | ≤ 8.8 lb (4 kg) (without hard drives) |
Products specifications
| Technology | IP/Network |
