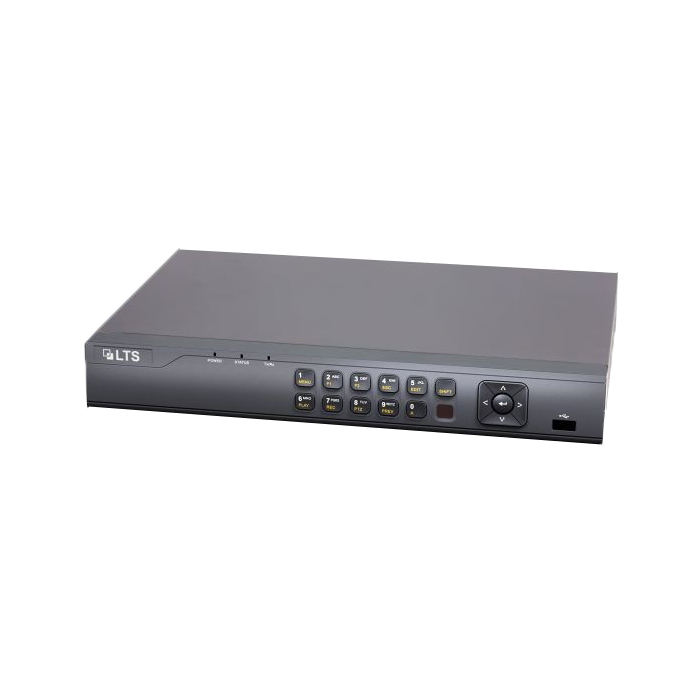

- 4-Channel Network Video Recorder
- Video Input: 4 IP channels @ 40 Mbps
- Video Output: VGA/HDMI up to 1920 x 1080
- Pentaplex Operation: Record, Playback, Backup, Live & Remote Access
- Recording Resolution: Up to 6 MP (3072 x 2048)
- Recording Mode: Manual, Schedule, Video Detection, Motion Detection, Video Loss, Stop
- Playback Channels: 4
- Playback Resolution: Up to 6 MP (3072 x 2048)
- Audio Channels In/Out: 1 / 1, RCA
- Built-in PoE Channels: 4
- Network: 10/100/1000 Mbps
- Storage: 1 x SATA up to 6 TB; 2 x USB; supports NAS, IP SAN
- Supports 1 POS
- Backup: USB or NAS
- Compact housing
| Audio / Video Input | |
| IP video input | 4 channels |
| Two-way audio input | 1 channel, RCA (2.0 Vp-p, 1kΩ) |
| Network | |
| Incoming bandwidth | 40 Mbps |
| Outgoing bandwidth | 80 Mbps |
| Remote connections | 128 |
| Audio / Video Output | |
| Recording resolutions | 6 MP / 3 MP / 1080p / UXGA / 720p / VGA /4CIF / DCIF / 2CIF / CIF / QCIF |
| HDMI / VGA output | 1 ch, resolution: 1920 × 1080 / 60 Hz, 1600 × 1200 / 60 Hz, 1280 × 1024 / 60 Hz, 1280× 720 / 60 Hz, 1024 × 768 / 60 Hz |
| Audio output channels | 1 x RCA (Linear, 1 kΩ) |
| Frame rates | Main stream: 50 fps (P) / 60 fps (N) |
| Sub-stream: 50 fps (P) / 60 fps (N) | |
| Decoding | |
| Live view / playback resolution | 6 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
| Capacity | 4 channels |
| Hard Drive | |
| SATA | 1 x SATA interface for 1 x HDD |
| Capacity | Up to 6 TB for each disk |
| External Interface | |
| Network interface | 1 x RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| USB interface | 1 x USB 2.0 and 1 x USB 3.0 |
| PoE | |
| PoE Interface | 4 independent 100 Mbps PoE ports |
| Max. Power | 50 W |
| Standards | AF and AT |
| General | |
| Power supply | 48V DC |
| Power Consumption | ≤ 10 W (without hard drive) |
| Working temperature | 14° to 131° F (-10° to 55° C) |
| Working humidity | 10% - 90% |
| Chassis | 1U Chassis |
| Dimensions | 12.4 x 9.1 x 1.8” (315 x 230 x 45 mm) |
| Weight | ≤ 4.4 lb (2 kg)(without hard drive) |
Products specifications
| Technology | IP/Network |
| Number of Channels | 4Ch |
