Key Features
- Connectable to network cameras with up to 5 Megapixels resolution.
- Support live view, storage and playback of video at 5 Megapixels resolution.
- 4 independent PoE network interfaces are provided.
- Zoom in for any area when playback.
- Adverse playback for multi-channel.
- Realize instant playback for assigned channel during multi-channel display mode.
- Digital zoom in live view and playback mode.
- 4CH simultaneous playback at D1 resolution.
- Holiday recording schedule configuration.
- HDD quota management; different capacity can be assigned to different channel.
- Redundant recording.
- 1 SATA interfaces available.
- Dual system design ensures high reliability and stability.
- 1 self-adaptive 10M/100M/1000M network interface.
- IPv6 is supported.
- TCP/IP protocol, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, UPnP and iSCSI are supported.
Specs

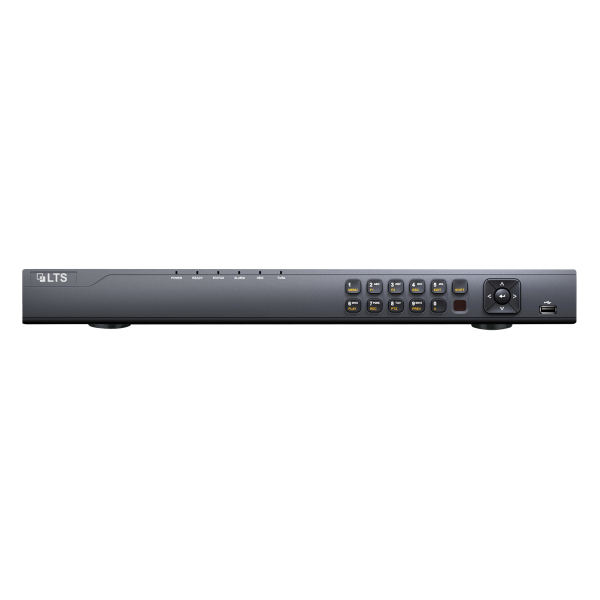

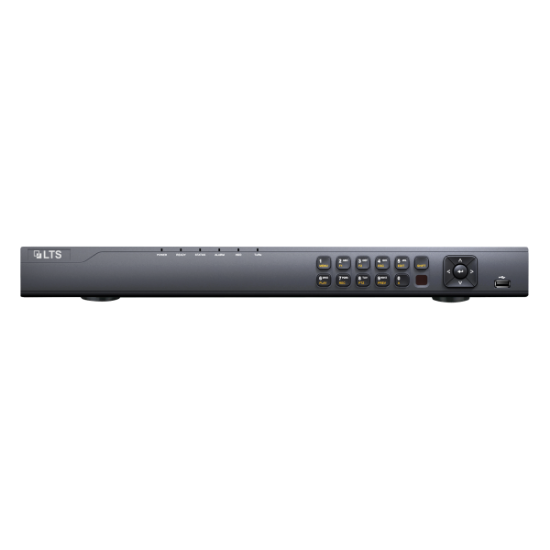

| LTN8704-P4 | |
| Video / Audio input | |
| IP video input | 4-ch |
| Two-way audio input | 1-ch, RCA (2.0 Vp-p, 1kΩ) |
| Network | |
| Incoming bandwidth | 25Mbps |
| Outgoing bandwidth | 80Mbps |
| Remote connection | 128 |
| Video / Audio output | |
| Recording resolution | 5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| HDMI / VGA output | 1-ch, resolution: 1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280× 720 /60Hz, 1024 × 768 /60Hz |
| Audio output | 1-ch, RCA (Linear, 1kΩ) |
| Frame rate | Main stream: 50 fps (P) / 60 fps (N) |
| Sub-stream: 50 fps (P) / 60 fps (N) | |
| Decoding | |
| Live view / Playback resolution | 5MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Capability | 4-ch@1080P |
| Hard disk | |
| SATA | 1 SATA interface for 1 HDD |
| Capacity | Up to 4TB for each disk |
| External interface | |
| Network interface | 1 RJ-45 10 / 100 / 1000 Mbps self-adaptive Ethernet interface |
| Serial interface | 1 RS-485 half-duplex interface |
| USB interface | 1 × USB 2.0 and 1 × USB 3.0 |
| PoE | |
| PoE Interface | 4 independent 100 Mbps PoE |
| Max. Power | 50W |
| Standard | AF and AT |
| General | |
| Power supply | 48V DC |
| Power Consumption | ≤ 10 W (without hard disk) |
| Working temperature | 14°F~131°F(-10 °C ~ +55 °C) |
| Working humidity | 10% ~ 90% |
| Dimension | 12.4"×9.1"×1.8"(315 × 230 × 45mm) |
| Weight | ≤ 2.2lb(1 Kg )( without hard disk) |
Products specifications
| Technology | IP/Network |
| Number of Channels | 4Ch |
