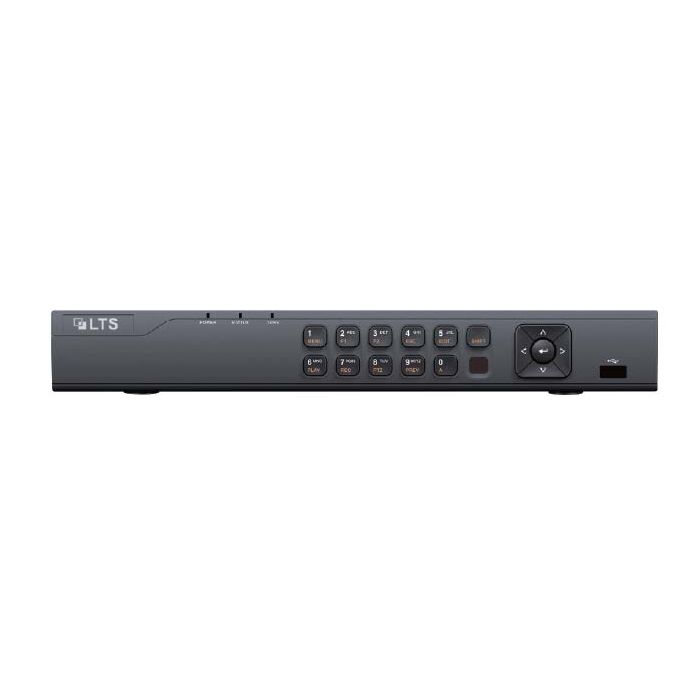

- Quad-core 8-Channel Network Video Recorder
- Live View, Storage, and Playback up to 12.3 MP IP Camera
- 80 MB Input Bandwidth
- 8 Built-in PoE
- 4K (3840 x 2160) HDMI, VGA, CVBS Video Output
- 2 x SATA up to 12 TB HDD
- 4 x POS via TCP/IP
- Supports 6 MP / 12.3 MP Fisheye
- Supports H.264 / H.264 Zip+, H.265 Ready
| Video / Audio Input | |
| IP Video Input | 8 channels, up to 12 MP resolution |
| Two-Way Audio Input | 1 channel, RCA (2.0 Vp-p, 1 kΩ) |
| Network | |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 256 Mbps |
| Remote Connection | 128 |
| Video / Audio Output | |
| Recording Resolutions | 12 / 8 / 6 / 5 / 4 / 3 MP; 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF/ QCIF |
| HDMI Output | 4K (3840 × 2160) / 60 Hz, 4K (3840 × 2160) / 30 Hz, 1920 × 1080p / 60 Hz, 1600 ×1200 / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz |
| VGA Output | 1-ch, resolution: 1920 × 1080p / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz |
| CVBS Output | 1 channel |
| Audio Output | 1 channel, RCA (Linear, 1kΩ) |
| Decoding | |
| Live View / Playback Resolution | 12 / 8 / 6 / 5 / 4 / 3 MP; 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
| Synchronous Playback | 8 channels |
| Capability | 2 chs. @ 4K, or 8 chs. @1080p |
| Hard Drives | |
| SATA | 2 x SATA Interfaces for 2 HDDs |
| Capacity | Up to 8 TB for Each Disk |
| External Interface | |
| Network Interface | 1 x RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces |
| USB Interface | Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 |
| Alarm Chs. In/Out | 4/1 |
| PoE | |
| Interface | 8 x RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| Max. Power | ≤120W |
| Supported Standard | IEEE 802.3 af/at |
| General | |
| Power Supply | 100 ~ 240 V AC |
| Consumption | ≤ 15 W |
| Operating Temperature | 14º to 131 ºF (-10º to 55º C) |
| Operating Humidity | 10% - 90% |
| Housing | 19-Inch Rack-Mounted 1U |
| Dimensions | 15 × 12.4 × 2.0" (380 × 315 × 52 mm) |
| Weight | ≤8.8 lb (4 kg) |
Products specifications
| Technology | IP/Network |
| Number of Channels | 8Ch |
