Manufacturer: LTS Security

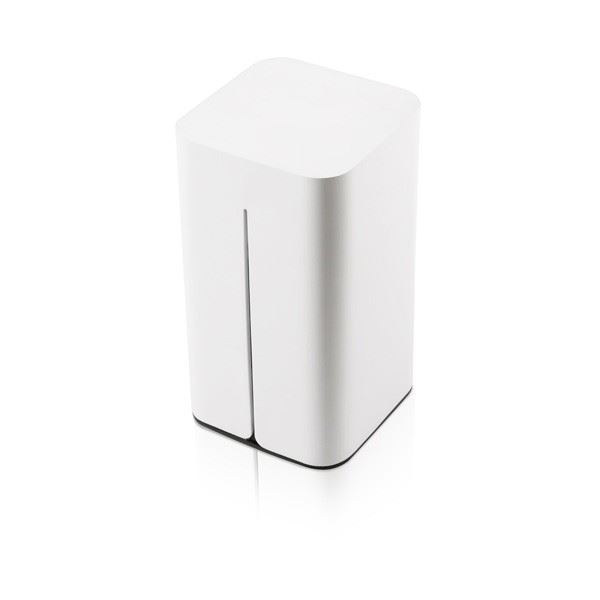

8CH Compact IP NVR Recorder Wireless (LTN8208-W)

SKU: 121729
MPN: LTN8208-W
$339.95
$569.99

Elegant Design and compact, Platinum LTN8208-W 8Ch IP NVR Recorder, with recording resolution up to 6MP and a storage up to 4TB, this NVR Is wireless ready, built in 4 PoE ports and has VGA and HDMI outputs at 1080p full HD, a great IP video recorder with 2 years warranty.

Storage calculator

Share

Share this link via

Or copy link

  • Pay with Ease
    •
    •
    •
    •
  • Secure SSL Encryption
  • Fast, Insured Shipping
  • 30-Day Money-Back Guarantee
  • Hassle-Free Warranty
  • Lifetime Customer Support
Free shipping
Product Highlights
TechnologyIP/Network
Number of Channels8Ch

Key Features

  • Super Compact Size
  • Connect up to 8 Network Cameras
  • Live View
  • Storage and Playback
  • Up to 6MP Resolution
  • Simultaneous Live View up to 6CH at 1080P
  • Up to 8CH Synchronous Playback and Reverse Playback
  • Support HDD quota mode




 LTN8208-W Specs

Video/Audio Input
IP Video Input8-CH
Video CompressionH.264, MPEG4
ProtocolLTS, ACTi, ARECONT, AXIS, BOSCH, BRICKCOM, CANONZHUNT, ONVIF (version 2.4),PANASONIC, PELCO, PSIA, RTSP,SAMSUNG, SANYO, SONY, VIVOTEK ,ZAVIO
Network
Incoming Bandwidth50Mbps
Outgoing Bandwidth80Mbps
ProtocolIPv6, UpnP, SNMP, NTP, SADP, DDNS, SMTP, NFS, iSCSI
Video/Audio Output
Recording Resolution6MP/5MP/3MP/1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCIF
HDMI Output (with audio output)1-CH, resolution: 1920 ×1080P /60Hz, 1600 × 1200 /60Hz, 1280 ×1024 /60Hz,1280 ×720 /60Hz, 1024 ×768 /60Hz
Playback Resolution6MP/5MP/3MP/1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCIF
Synchronous Playback8-CH
Record
Record Type

Manual, Continuous, Motion Detection, Alarm, Motion Detection & Alarm,Motion Detection | Alarm, VCA

Playback Type

Instant Playback, Normal Playback, Event Playback, Tag Playback, Log Playback, Smart Playback, External file Playback

Backup ModeNormal, Event
Hard Disk
SATA1 SATA interface for 1 HDD
Capacity2.5-inch, 500G / 1T,Pre-installed 1T
External Interface
Network Interface1 RJ-45 10 /100 Mbps WAN interface; 3 RJ-45 10 / 100M LAN interfaces
USB Interface1 × USB 3.0
Wireless
Frequency Band2.4GHz
Antenna Structure2 × 2MIMO
General
Power Supply1 2V DC
Consumption≤ 12W
Working Temperature32°F - 140°F (0 °C - +40 °C)
Working Humidity10% - 90%
Dimensions (WxDxH)3.4 × 3.4 × 6.2in (87 × 87 × 157mm)
Weight1.2lb (≤0.53kg)
