Product Highlights | LTN0764 |
Technology | IP/Network |
Number of Channels | 64Ch, 4Ch |

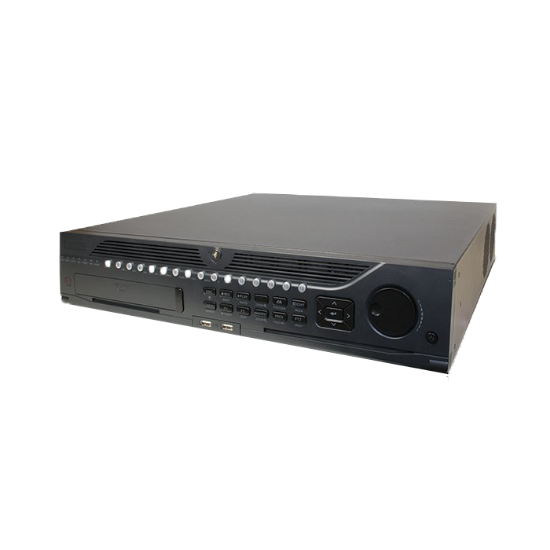

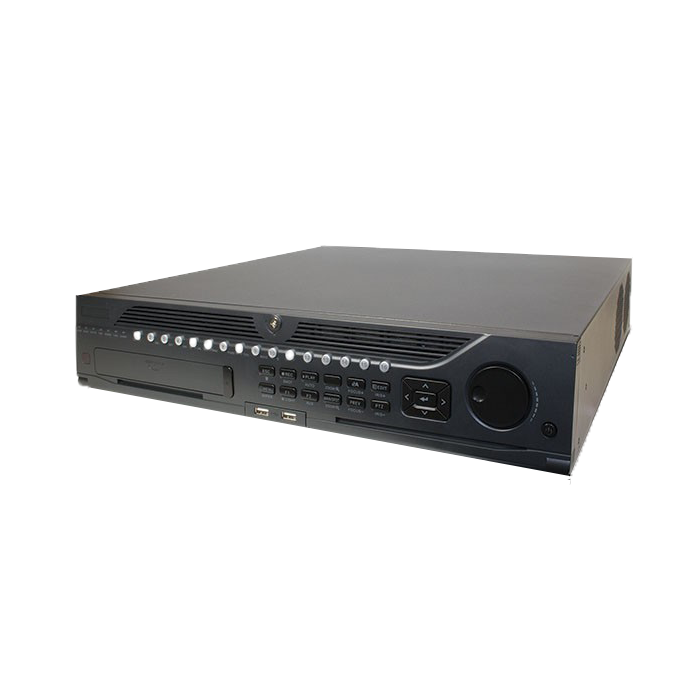

- 64-Channel Network Video Recorder
- Video Input: 64 IP channels @ 200 Mbps
- Video Output: BNC, VGA, HDMI up to 1920 x 1080p
- Pentaplex Operation: Record, Playback, Backup, Live & Remote Access
- Recording Resolution: Up to 6 MP (3072 x 2048)
- Recording Mode: Manual, Schedule, Video Detection, Motion Detection, Video Loss, Stop
- Playback Channels: 16
- Playback Resolution: Up to 6 MP (3072 x 2048)
- Audio Channels In/Out: 1 / 2, BNC
- Alarm Channels In/Out: 16/4
- Network: 10/100/1000 Mbps
- Storage: 8 x SATA up to 48 TB, NAS, eSATA, 3 x USB 2.0, IP SAN
- Supports 8 POS
- Backup: USB, NAS, or eSATA, DVD-RW
- 2U
Audio / Video Input | |
IP video input | 64 channels |
Two-way audio input | 1 ch, BNC (2.0 Vp-p, 1kΩ) |
Incoming bandwidth | 160 Mbps |
Audio / Video Output | |
Recording resolutions | 5 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
CVBS output | 1 ch, BNC (1.0 Vp-p, 75 Ω) Resolution: 704 × 576 (PAL); 704 × 480 (NTSC) |
HDMI output | 1-ch, resolution: 1920 × 1080p / 60 Hz, 1600 × 1200 / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz |
VGA output | 1-ch, resolution: 1920 × 1080p / 60 Hz, 1600 × 1200 / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz |
Audio output | 2 ch, BNC (Linear, 600Ω) |
Playback resolution | 5 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
Synchronous playback | 16 ch |
Hard Drives | |
SATA | Up to 8 x SATA interfaces |
eSATA | 1 x eSATA interface |
Capacity | Up to 6 TB capacity for each HDD |
External interface | |
Network interface | 2, 10/100/1000 Mbps self-adaptive Ethernet interface |
Serial interface | RS-232, RS-485, RS-485 keyboard |
USB interface | 3 x USB 2.0 |
Alarm Channels In | 16 |
Alarm Channels Out | 4 |
General | |
Power supply | 100 ~ 240V AC, 6.3 A, 50 to 60 Hz |
Consumption | ≤ 40 W |
Operating temperature | 14° to 131° F (-10º to 55º C) |
Operating humidity | 10% ~ 90% |
Dimensions (W × D × H) | 17.52 x 18.5 x 3.54" (445 × 470 × 90 mm) |
Weight (without HDD or DVD-R/W) | ≤ 17.64 lb (8 kg) |
