| Product Highlights | |
| Technology | IP/Network |
| Number of Channels | 32Ch |

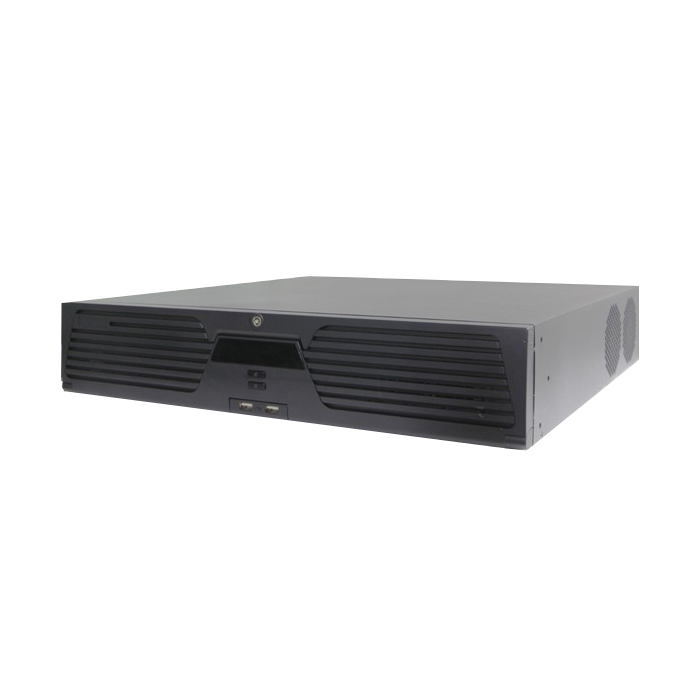

- 32-Channel Network Video Recorder
- Video Input: 32 IP channels @ 320 Mbps
- VGA1 up to 2K (2560 x 1440) / 60 Hz resolution, HDMI1 up to 4K (3840 x 2160) / 60 Hz; VGA2 / HDMI2 output up to 1080p
- Up to 16-ch synchronous playback
- Human Body Detection analytics to improve alarm accuracy rate
- Up to 8 x SATA hard drives and 1 x eSATA drive can be connected for both recording and backup
- HDD hot swapping with RAID 0, 1, 5, 6, 10 configurable
- 2U
| Audio / Video Input | |
| IP video input | 32 channels |
| Two-way audio input | 1 channel, BNC (2.0 Vp-p, 1 kΩ) |
| Incoming bandwidth | 320 Mbps |
| Outgoing bandwidth | 256 Mbps, or 200 Mbps (when RAID is enabled) |
| Remote connections | 256 Mbps, or 200 Mbps (when RAID is enabled) |
| Audio / Video Output | |
| Recording resolutions | 3, 4,5, 6, 8, 12 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
| HDMI output / HDMI1 | VGA1: 2K (2560 × 1440) / 60 Hz, 1920 × 1080 / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz |
| VGA output / HDMI 2 | 1920 × 1080 / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz |
| Audio output | 2 channels, RCA (Linear, 1 KΩ) |
| Synchronous playback | 16 channels |
| Hard Drive | |
| SATA | 8 x SATA interfaces |
| eSATA | 1 x eSATA interface |
| Capacity | Up to 8 TB capacity for each HDD |
| Disk Array | |
| RAID Type | 0, 1, 5, 6, 10 |
| External interface | |
| Network interface | 2 x RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces |
| Two-Way Audio | 1 ch, RCA (2.0 Vp-p, 1 kΩ) |
| Serial interface | RS-232; RS-485; Keyboard |
| USB port | 2 x USB 2.0 on front panel and 1 x USB 3.0 on rear panel |
| Alarm channels (in/out) | 16 / 4 |
| General | |
| Power supply | 100 ~ 240 V AC, 50 * 60 Hz |
| Power Consumption | ≤ 200 W |
| Working temperature | 14° to 131° F (-10° to 55° C) |
| Working humidity | 10% - 90% |
| Dimensions | 17.5 x 18.5 x 3.5" (445 x 470 x 90 mm) |
| Weight | ≤ 22 lb (10 kg) without hard drive |
