| Product Highlights | |
| Technology | IP/Network |
| Number of Channels | 8Ch |

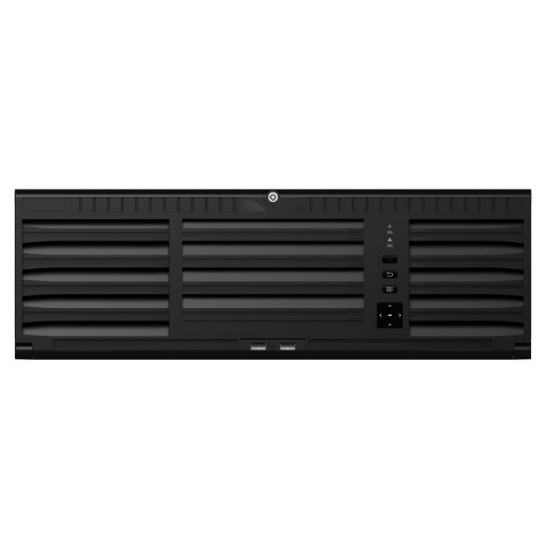

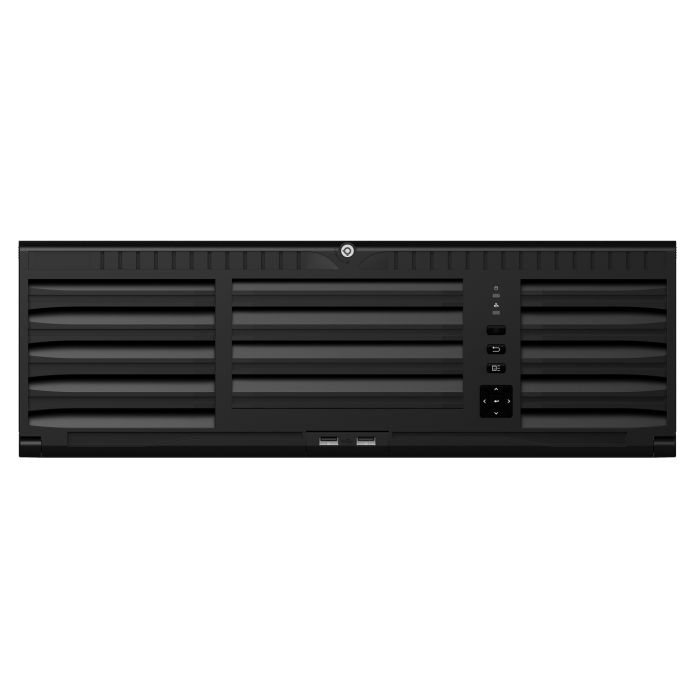

- Platinum 128-Channel Network Video Recorder
- Supports Live View, Recording, and Playback of IP Cameras up to 12 MP
- Quad-Core CPU
- 576 Mbps Bandwidth
- 4K (3840 x 2160) HDMI Video Output
- Supports 16 x SATA HDDs at up to 10 TB each
- 4 x RJ45 10/100/1000 Mbps, 4 x Fiber Optic Ethernet Interfaces
- RAID 0, 1, 5, 6, 10, and Hot Swapping
- H.264 / H.264+ / H.265 / H.265+
- 20 channels @ 1080p
| Video / Audio Input | |
| IP Video Input | 128 channel |
| Bandwidth:Incoming / Outgoing | 576 Mbps / 512 Mbps |
| Bandwidth: Incoming / Outgoing (RAID mode) | 576 Mbps / 512 Mbps |
| Protocols | LTS, ACTi, Arecont, Axis, Bosch, Brickcom, Canon, Hunt, ONVIF (Version 2.5), Panasonic, Pelco, PSIA, RTSP, Samsung, Sony, Vivotek, Zavio, Hikvision |
| Video / Audio Output | |
| HDMI Output | Two independent HDMI outputs @ 4K. Resolutions: 4K: (4096 × 2160 / 3840 × 2160) / 30 Hz, 2K: (2560 × 1440) / 60 Hz, 1080p (1920 × 1080) / 60 Hz, UXGA (1600 × 1200) / 60 Hz, SXGA (1280 × 1024) / 60 Hz, 720p (1280 × 720) / 60 Hz, XGA (1024 × 768) / 60 Hz |
| VGA Output | 1 ch. Resolutions: 1080p (1920 × 1080) / 60 Hz, UXGA (1600 × 1200) / 60 Hz, SXGA (1280 × 1024) / 60 Hz, 720p (1280 × 720) / 60 Hz, XGA (1024 × 768) / 60 Hz |
| Audio Output | 1 ch, RCA (Linear, 1kΩ) |
| Video & Audio Decoding | |
| Decoding Formats | H.264, H.264 Zip+, H.265, H.265+, MPEG4, MJPEG |
| Video Resolutions | 3, 4, 5, 6, 7, 8, 12 MP; UXGA; 720p; VGA; 4CIF, DCIF, 2CIF, CIF, QCIF |
| Synchronous Playback | Up to 16 channels |
| Capability | 20 channels @ 1080p |
| Data Storage | |
| SATA | 16 x SATA interfaces supporting hot-plug |
| Capacity | Up to 10 TB capacity for each HDD |
| RAID | |
| RAID Type | RAID 0, 1, 5, 6, and 10 |
| Network Management | |
| Protocols | IPv6, HTTPS, UPnP, SNMP, NTP, SADP, SMTP, NFS, iSCSI, PPPoE, DDNS |
| Network Interface | 4 x RJ45 10/100/1000 Mbps self-adaptive Ethernet interface |
| External Interface | |
| Two-way Audio Input | 1 ch, RCA (2.0 Vp-p, 1 kΩ) |
| Serial Ports | 1 x RS-485, Keyboard |
| USB | Front Panel: 2 × USB 2.0 Rear Panel: 2 × USB 3.0 |
| Alarm Channels (In/Out) | 16 / 8 |
| Decoding Boards | 1 |
| General | |
| Power Supply | 100 ~ 240 VAC, 550 W |
| Consumption | ≤ 140 W (without HDDs or DVD-R/W) |
| OperatingTemperature | 32° to 122° F (0° to 50° C) |
| Operating Humidity | 10 - 90% |
| Housing | 19-inch rack-mounted 3U chassis |
| Dimensions (W x D x H) | 17.4 × 19.4 × 5.7" (442× 494 ×146 mm) |
| Weight | ≤ 35.3 lb (16 kg, without HDDs or DVD-R/W) |
