Manufacturer: LTS Security

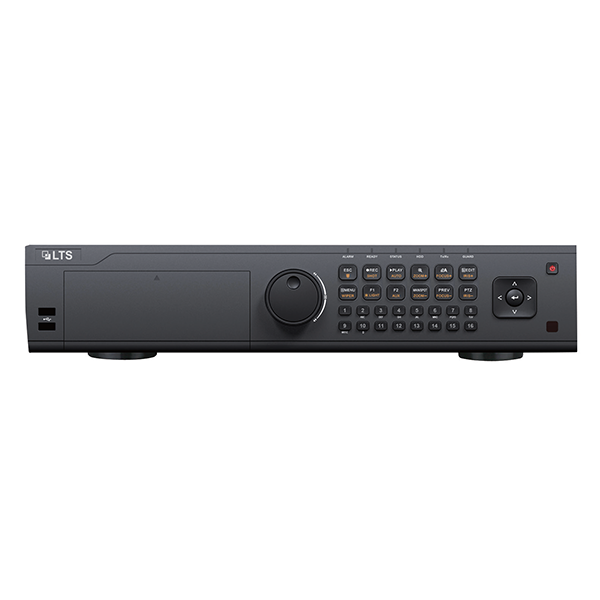

Enterprise 32Ch HD-TVI Hybrid DVR + 16Ch IP (LTD9232T-FA)

SKU: 121734
MPN: LTD9232T-FA
$1,095.95
$1,399.95
32Ch HD-TVI DVR Professional Full HD 1080p Picture quality in a compact DVR that will support 3 different technologies at the same time HD-TVI, Analog and IP, 32 HD-TVI/960h BNC inputs and the ability to add up to 16 additional IP Cameras, This LTD9232T-FA DVR is a great DVR upgrade if you have existing analog cameras, H.264 compression, VGA and Dual HDMI output, 2 Ethernet Ports, 16Ch audio inputs and many more features.
Share

Share this link via

Or copy link

  • Pay with Ease
    •
    •
    •
    •
  • Secure SSL Encryption
  • Fast, Insured Shipping
  • 30-Day Money-Back Guarantee
  • Hassle-Free Warranty
  • Lifetime Customer Support
Free shipping
  • 32Ch Hybrid HD-TVI/Analog DVR + 16Ch IP
  • H.264 & Dual Stream Video Compression
  • 2U Case support up to 8 SATA and 48TB
  • Supports 32CH Simultaneous Playback
  • 16 / 1 CH Audio I/O
  • 16 / 8 CH Alarm I/O
  • 2 Network Ports
  • 2 HDMI Interface (1 Spot Out)
  • Supports 8 POS
  • Supports IP, HD-TVI, and Analog Cameras



LTD9232T-FA
Video / Audio input
Video compressionH.264
HD-TVI video input32-ch
Video input interfaceBNC interface (1.0Vp-p, 75 Ω)
IP input16ch(1080p@30fps)
Supported camera types720P25, 720P30, 720P50, 720P60, 1080P25, 1080P30, CVBS
Audio compressionG.711u
Audio input16-CH, RCA (2.0 Vp-p, 1 kΩ)
Two-way audio input1-ch, RCA (2.0 Vp-p, 1 kΩ)
Video / Audio output
HDMI/VGA output2 HDMI (1 Spot Out)  / 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60Hz
CVBS output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Encoding resolutionMain stream: 1080P / 720P / VGA / 4CIF / CIF
Sub-stream: WD1(non-real-time) / 4CIF(non-real-time) / CIF / QCIF / QVGA
Frame rateMain stream: 1/16 fps ~ Real time frame rate
Sub-stream: 1/16 fps ~ Real time frame rate
Video bit rate32 Kbps-6 Mbps
Audio output1CH, RCA (Linear, 1 kΩ)
Audio bit rate64 Kbps
Dual-streamSupport
Stream typeVideo, Video & Audio
Synchronous playback32-ch
Playback resolution1080P / 720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF
Network
Remote connection128
Network protocolsTCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP™, HTTPS
Hard disk
SATA8 SATA Interfaces for 8 HDDs; 1 eSATA Interface
CapacityUp to 6TB capacity for each disk
External interface
Network interface2:10M / 100M / 1000M Self-Adaptive Ethernet Interface
Serial interfaceRS-232, RS-485, Keyboard
USB port3 × USB2.0
Alarm in / out16 / 8
General
Power supply100 ~ 240VAC, 47 ~ 63HZ
Power Consumption≤ 55 W
Working temperature-10 °C~+55°C(14°F ~ 131 °F)
Working humidity10% ~ 90%
Chassis19-inch rack-mounted 1.5U chassis
Dimension 417.5 × 18.5 × 3. 5in (45 × 470 × 90mm)
Weight≤85Kg (17.6lb)(without hard disks)
Products specifications
TechnologyHD-TVI, Hybrid
Number of Channels32Ch
Product tags
Product reviews
exceptionally fantastic
5
This TVI DVR exceeds the expectations, we had 2 analog dvrs 16ch each and we replaced our old system with this DVR, using all our existing wiring, even our old cameras give better picture on this, but we are slowly replacing everything with HD cameras. great support from Veotron.
Guest | 1/11/2017 12:33 AM
Was this review helpful? Yes No (0/0)
Excellent TVI DVR
5
This is an excellent 32Ch DVR, We replaced and existing 32ch analog system, using the same coax cable we sapped the cameras and installed this 32CH HD-TVI DVR and that was it. great full HD picture quality and the mobile app is just flawless.
Guest | 9/28/2015 1:09 PM
Was this review helpful? Yes No (0/0)
