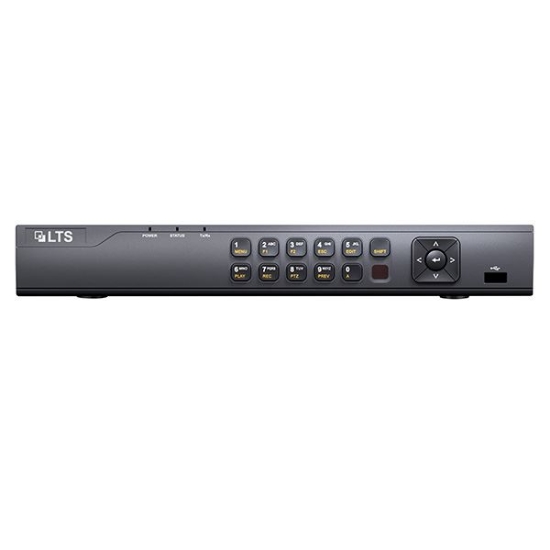

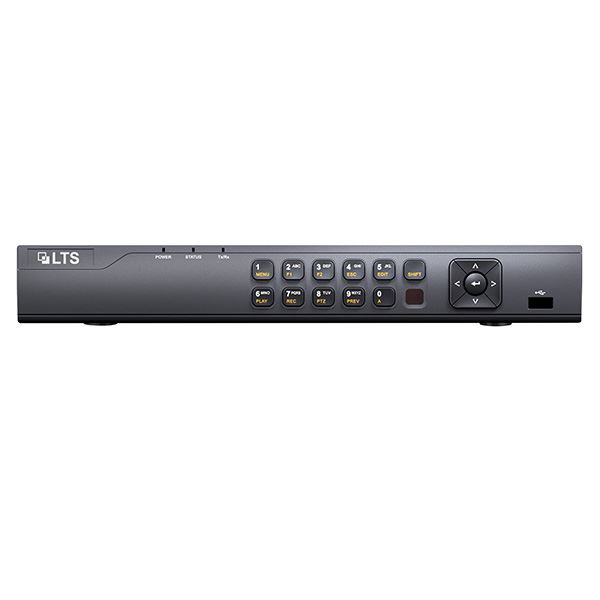

- 4CH HD-TVI Hybrid DVR
- Support Live View, Storage, Playback up to 4CH HD-TVI 3MP / Analog / Analog HD Cameras+ 2CH IP Camera up to 4.1MP
- Up to 1080P HDMI Video Output
- 3MP@15fps/1080p@30fps
- CVBS Output
- 1 SATA up to 8TB HDD
- H.264/H.264 Zip+
- 2 USB 2.0
- 4CH Audio Input
- Long distance transmission over twisted-pair cable and coax cable
- Supports LTS 3MP HD-TVI Cameras
| VIDEO/AUDIO INPUT | |
| Video Compression | H.264 Zip+/H.264 |
| Video Input | 4ch BNC (1.0Vp-p, 75Ω) |
| IP Input | Up to 2CH (Support ONVIF, up to 4MP Resolution) |
| Audio Compression | G.711u |
| Audio Input | 4-CH, RCA (2.0 Vp-p kΩ) |
| Two-Way Audio Input | 1-CH, RCA (2.0 Vp-p kΩ) |
| VIDEO/AUDIO OUTUPUT | |
| HDMI/VGA Output | 1 -ch , 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60 Hz |
| Encoding resolution | 3MP@15fps/1080p@30fps/720p@30fps |
| CVBS output | 1-ch, BNC (1.0 Vp-p, 1 kΩ) |
| Frame Rate | Main stream: 30f ps(N)/25fps(P) Sub-stream:WD1/4CIF@12fps (non-real-time); CIF/QVGA/QCIF (real time) |
| Video Bit Rate | 32 Kbps-10 M bps |
| Audio Output | 1-ch, RCA (Linear, 1 kΩ) |
| Audio Bit Rate | 64 Kbps |
| Dual Stream | Support |
| Stream Type | Video, Video & Audio |
| Synchronous Playback | 4ch |
| NETWORK | |
| Remote Connections | 128 |
| Network Protocols | TCP/IP, PPPoE, DHCP, PT Cloud P2P, DNS, DDNS, NTP, SAD P, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
| HARD DISK | |
| SATA | 1 SATA |
| Capacity | Up to 8 TB capacity for each disk |
| EXTERNAL INTERFACE | |
| Network interface | 1:10M / 100Mself-adapt ive Ethernet interface |
| Serial interface | RS-4 85 |
| USB Port | 2 × USB2.0 |
| Alarm In/Out | 4/1 |
| GENERAL | |
| Power supply | DC12V |
| Consumption | ≤ 15W |
| Working temperature | -10 °C ~ +55 °C(14°F - 131°F) |
| Working humidity | 10% ~ 90% |
| Chassis | 1U chassis |
| Dimensions (WxDxH) | 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch) |
| Weight | ≤1.5 Kg (4. lb) |
Products specifications
| Number of Channels | 4Ch |
| Technology | HD-TVI, Hybrid |
