Manufacturer: Hikvision

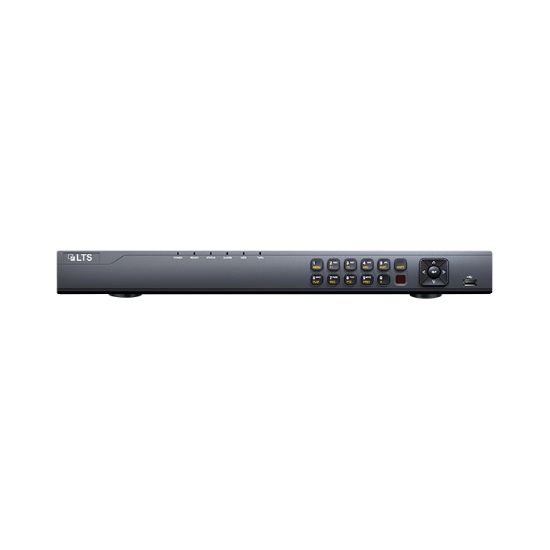

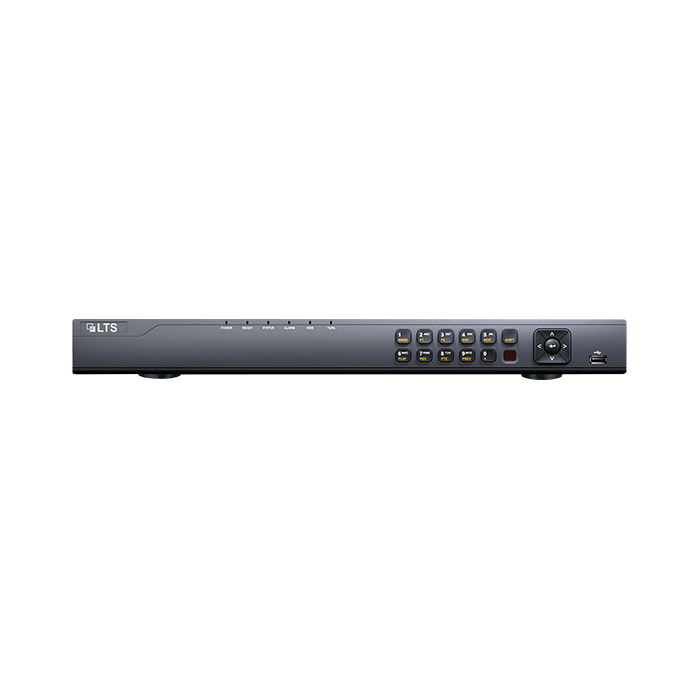

16Ch HD-TVI Platinum Advanced Level DVR 1U (LTD8316T-FA)

SKU: 202127
MPN: LTD8316T-FA
$340.99
$460.99

Engineered for high-demand environments, the Platinum Advanced Level 16 Channel HD-TVI DVR 1U (model LTD8316T-FA) keeps your footage secure and accessible. Suitable for users seeking robust, flexible recording options without compromise.
Share

Share this link via

Or copy link

  • Pay with Ease
    •
    •
    •
    •
  • Secure SSL Encryption
  • Fast, Insured Shipping
  • 30-Day Money-Back Guarantee
  • Hassle-Free Warranty
  • Lifetime Customer Support
Free shipping
Product Highlights
Number of Channels16Ch
TechnologyHD-TVI



Video / Audio input
Video compressionH.264
HD-TVI video input16-ch
Video input interfaceBNC (1.0 Vp-p, 75 Ω), PAL / NTSC self-adaptive
IP input2ch(1080p@30fps)
Audio compressionG.711u
Audio input1-ch, RCA (2.0 Vp-p, 1 kΩ)
Two-way audio input1-ch, RCA (2.0 Vp-p, 1 kΩ)
Video / Audio output
HDMI/VGA output1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
Encoding resolutionMain stream: 1080P(non-real-time) / 720P / VGA / WD1 / 4CIF / CIF
Sub-stream: WD1(non-real-time) / 4CIF(non-real-time) / CIF / QCIF / QVGA
Frame rateMain stream: 1/16 fps ~ Real time frame rate
Sub-stream: 1/16 fps ~ Real time frame rate
Video bit rate32 Kbps-6 Mbps
Audio output1-ch, RCA (Linear, 1 kΩ)
Audio bit rate64 Kbps
Dual-streamSupport
Stream typeVideo, Video & Audio
Synchronous playback16-ch
Playback resolution1080P / 720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF
Network
Remote connection128
Network protocolsTCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP™, HTTPS
Hard disk
SATA2 SATA interface
CapacityUp to 6TB capacity for each disk
External interface
Network interface1:10M / 100M self-adaptive Ethernet interface
Serial interface1; standard RS-485 serial interface, half-duplex
USB port2 × USB2.0
Alarm in/out16/4
General
Power supply12V DC
Power Consumption≤ 30 W
Working temperature-10 °C~+55°C(14°F ~ 131 °F)
Working humidity10% ~ 90%
Dimension 445 × 290 × 45 mm 17.5” x 11.4” x 1.8”
Weight≤2kg (4.4 lb)
