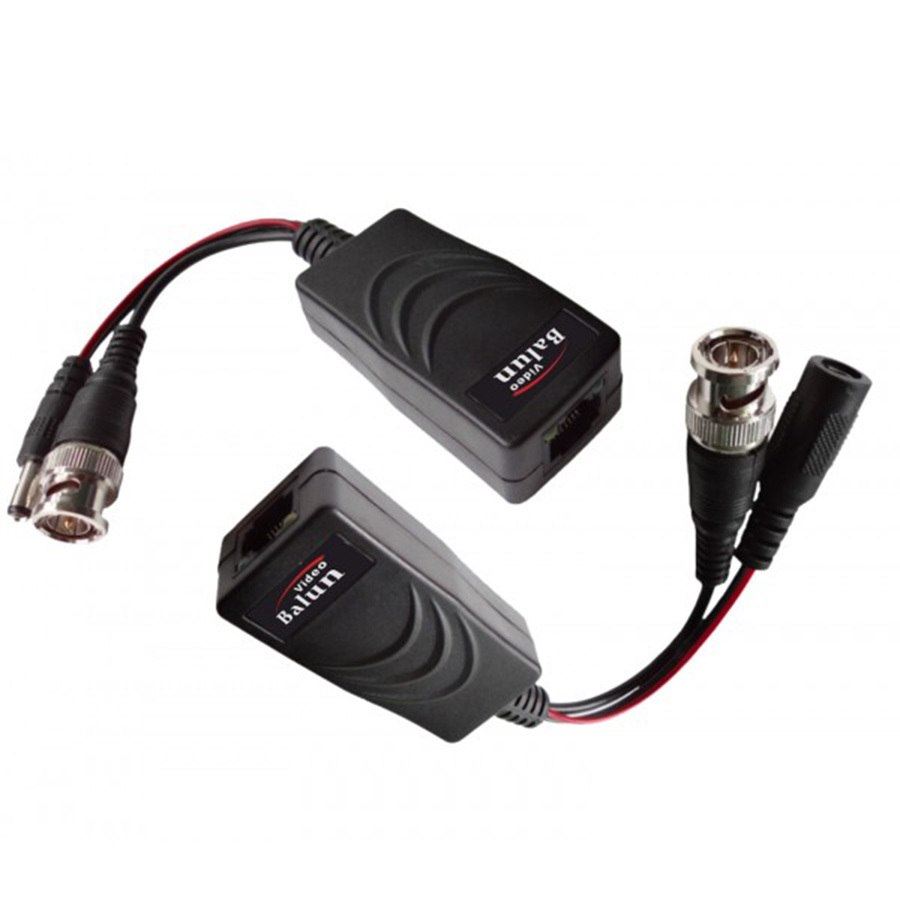

HD Balun with power (LTAB4030TP)

SKU: 121776
MPN: LTAB4030TP
Be the first to review this product
$19.99
$14.95

Accepted Payments

LTAB4030TP Single Channel HD video balun with power, Up to 5MP and reaching up to 600ft, Supports TVI, A-HD, CVI and Analog, LTAB4030TP video balun using RJ45 cables, Cat5, Cat5e or Cat6, Great quality HD CCTV Video balun (Pair).
Live chat
Have a question? ASK AN EXPERT, Call 877-366-2444
Or Chat Live (Mon–Fri 8am–6pm CT)
  • Easy to install
  • Clean installation
  • Up to 600ft of HD signal (Cat6 recommended)
  • Supports HD-TVI, HD-CVI, A-HD and Analog for up to 5MP
Video Parameters
Video Format HD-TVI/CVI/AHD/CVBS
Operating Frequency DC to 42MHz
 Max Distance
HD-TVI 720P 250m (820ft) HD-TVI 1080P 250m (820ft) HD-TVI 3MP 200m  (656ft) HD-TVI 4MP 200m (656ft) HD-TVI 5MP 200m (656ft)
HD-CVI 720P 440m (1443ft) HD-CVI 1080P 230m (754ft) HD-CVI 4MP 230m (754ft) CVBS 400m (1312ft)
HD-AHD 720P 320m (1049ft) HD-AHD 960P 320m (1049ft) HD-AHD 1080P 250m (820ft)  HD-AHD 4MP 200m (656ft) HD-AHD 5MP 200m (656ft)
Common Mode/ Differential Mode Rejection 15KHz to 42MHz 60 dB type
Impedance Coax: Male BNC 75 unbalanced; UTP: RJ45 100 balanced
Attenuation 1.5 dB typ Max
Wire Type
Network Wiring

One Unshielded Twisted Pair (for each video signal) 24-16 AWG ( 0.5-1.31mm)
Category Type

2 or better
Impedance 100 ± 20 ohms
DC Loop Resistance 52 ohms per 1,000ft (18 ohms per 100m)
Differential Capacitance 19 pF/ft max (62 pF/m max)
Connector
Video input/output Male BNC connector
Video input/output RJ45
Mechanical
Housing ABS engineering plastic
Body Color Black
Dimensions 60.4x29x20.4mm(2.38x1.14x0.80”) (BNC connector & cable excluded)
Net Weight 60g (0.132lb)
Power
Power Input 12V/24V, DC/AC
Power Transmission 12 V/24V,DC/AC, via UTP cat5e/6. please refer to power distance chart above
ENVIRONMENTAL
Operating Temperature -4° F to 158° F(-20° C ~ 70° C)
Relative Humidity 0~ 9 5 % ( n o n - c o nde n s i n g )
Storage Temperature -40° F to 302° F(-40° C ~ 150° C)
