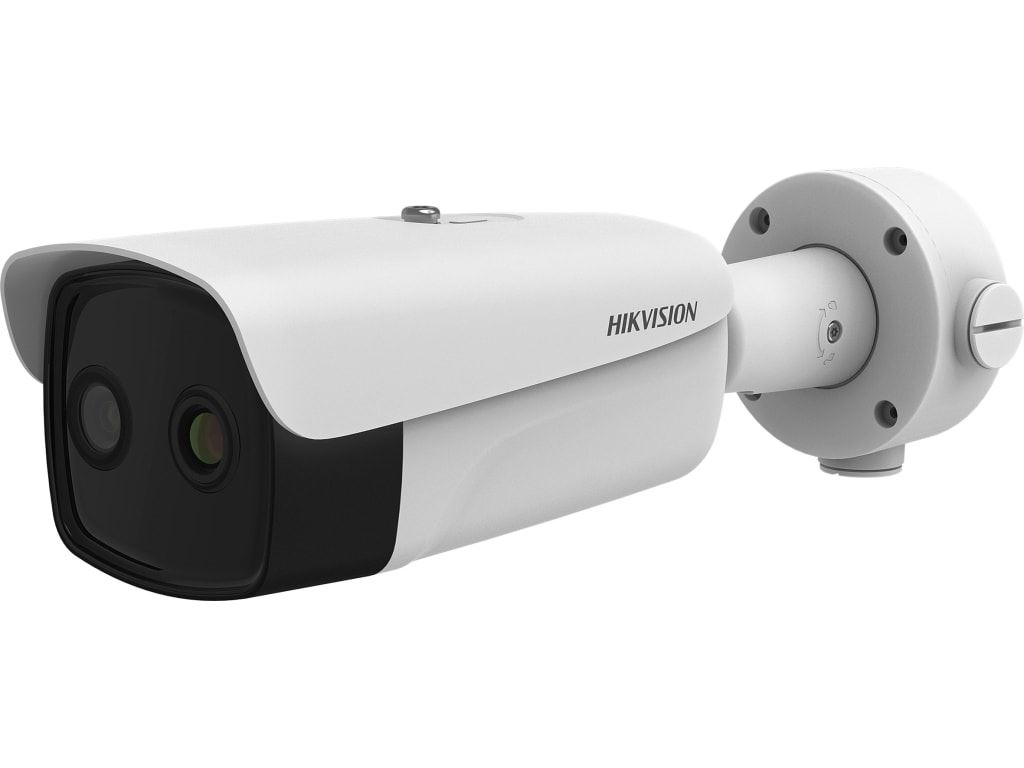

| DS-2TD2636B-13/P |
| Thermal Module |
| Image Sensor |
Vanadium oxide uncooled focal plane arrays |
| Maximum Resolution |
384 × 288 |
| Pixel Interval |
17 μm |
| Response Waveband |
8 μm to 14 μm |
| NETD (Noise Equivalent Temperature Difference) |
≤40 mk (@ 25° C, F# = 1.0) |
| Lens (Focal Length) |
13 mm |
| IFOV |
1.13 mrad |
| Field of View |
28.8° × 21.6° (H × V) |
| Minimum Focusing Distance |
1.6 ft (0.5 m) |
| Aperture |
ƒ/1.0 |
| Optical Module |
| Maximum Image Resolution |
2688 × 1520 |
| Image Sensor |
1/2.7" progressive scan CMOS |
| Minimum Illumination |
Color: 0.0089 lux @ (ƒ/1.6, AGC on), B/W: 0.0018 lux @ (ƒ/1.6, AGC on) |
| Shutter Speed |
1 s to 1/100,000 s |
| Lens (Focal Length) |
6 mm |
| Field of View |
51.7° × 28° (H × V) |
| WDR |
120 dB |
| Day/Night |
IR cut filter with auto switch |
| Image Functions |
| Bi-Spectrum Image Fusion |
Display optical channel details on thermal channel |
| Picture in Picture |
Display partial image of thermal channel on full screen of optical channel |
| Smart Functions |
| Temperature Measurement |
3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line) |
| Temperature Accuracy |
±0.9° F (±0.5° C) at 8.2 feet to 29.52 feet (2.5 m to 9 m) |
| Infrared |
| IR Distance |
Up to 164 ft (50 m) |
| IR Intensity and Angle |
Automatically adjusted |
| Network |
| Main Stream |
30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Thermal: 25 fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240) |
| Sub-Stream |
30 fps (704 × 480, 352 × 240, 176 × 120)
Thermal: 25 fps (704 × 576, 352 × 288, 320 × 240) |
| Video Compression |
H.265/H.264/MJPEG |
| Audio Compression |
G.711u/G.711a/G.722.1/MP2L2/G.726/PCM |
| Protocols |
IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE |
| Simultaneous Live View |
Up to 20 |
| User/Host Level |
Up to 32 users, 3 levels: administrator, operator, user |
| Security Measures |
User authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x, access control, IP address filtering |
| Integration |
| Alarm Input |
2-ch inputs (0−5 VDC) |
| Alarm Output |
2-ch relay outputs, alarm response actions configurable |
| Alarm Action |
SD recording/relay output/smart capture/FTP upload/e-mail linkage |
| Audio Input |
1 x 3.5 mm mic in/line in interface, line input: 2 to 2.4 V [p-p], output impedance: 1K Ω ±10% |
| Audio Output |
Linear level, impedance: 600 Ω |
| Reset |
1 x reset button |
| Communication Interface |
1 x RJ-45 10M/100M self-adaptive Ethernet interface; 1 x RS-485 interface |
| SD Memory Card |
Built-in microSD card slot, supports microSD/SDHC/SDXC card (up to 256 GB), supports manual/alarm recording |
| Analog Video Output |
1.0 V [p-p]/75 Ω, BNC, PAL/NTSC |
| Application Programming |
Open-ended API, supports ISAPI, HIKVISION SDK and third-party management platform, ONVIF (Profile S, Profile G, Profile T) |
| Client |
iVMS-4200, Hik-Connect |
| Web Browser |
IE 8−11, Chrome 41−44, Firefox 30−51 |
| General |
| Menu Language |
32 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) |
| Power |
24 VAC ±25%, 12 VDC ±25%, two-core terminal block
PoE (802.3af, class 3) |
| Power Consumption |
18 VAC to 30 VAC: 0.38 A to 0.22 A, maximum 9 W
9 VDC to 15 VDC: 0.63 A to 1.06 A, maximum 9 W
PoE (802.3af, class 3): 44 V to 57 V, 0.22 A to 0.17 A, maximum 9.5 W |
| Working Temperature/Humidity |
Temperature: 50° to 95° F (10° to 35° C) (indoor and windless environment use only, humidity: 95% or less (non-condensing) |
| Protection Level |
IP66 standard, TVS 6000V lightning protection, surge protection, voltage transient protection |
| Dimensions |
14.81" × 4.68" × 4.65" (376.1 mm × 119.1 mm × 118.1 mm) |
| Weight |
Approximately 4.01 lb (1.82 kg)
|
