KEY FEATURES
- Full GUI with alpha blending
- Individual setting of resolution, frame rates and picture quality
- Instant Replay
- Digital Zoom (Live & Playback)
- Weekly scheduler with holiday by 10 minutes setting
- Covert, Disable and Private function of cameras
- Motion Detection with 352 area settings
- Relay alarm output
- PTZ control by RS-485
- Daylight Saving Time and Network Time Setting
- Multi User Authority up to 8 Users
- De-interlacer upon live and playback
- 12 languages with full graphic
- Individual Network port setting
- Auto Deletion
- Import and Export the configuration
- Mirroring
- POS Interface
- Dual CODEC engine for independent video transmission
- Interactive setup via network
SPECIFICATIONS
|

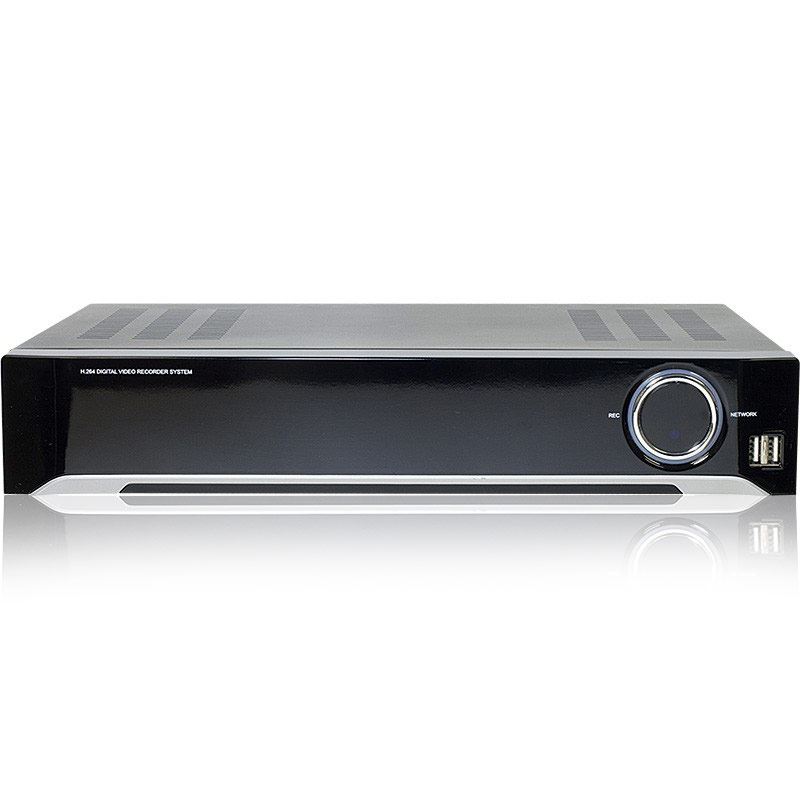

XVST MAGIC-04
|
||
| Video | In | 4 Ch |
| Analog & HD-SDI Magic Detect Function | No | |
| Source | 720p / 1080i / 1080p / Mixed | |
| Output | 1 HDMI / 1 VGA / 1 Programmable SPOT | |
| Audio | Input | 4 RCA |
| Output | 1 RCA | |
| Sensor In | 4 (NC, NO selectable) | |
| Alarm Out | 1 Relay | |
| Operating System | Embedded Linux OS | |
| Display | Speed | Realtime |
| Screen Res. (Pixel) | 1280×720, 1920×1080 | |
| Split Screen | 1 / 4 | |
| Recording | CODEC | H.264 / JPEG for 3G / Dual CODEC |
| Resolution (Pixel) | 720p / 1080i / 1080p / Mixed | |
| Picture Quality | 4 steps (Super/High/Medium/Low) | |
| Speed Total (fps) | 120 fps @ 1080p | |
| Playback | Display | 1 / 4 |
| Search Mode | Calendar / Event / POS / Panorama / Thumbnail | |
| Speed(multi-ch mode) | 60 fps @ 1080p | |
| Network | Network Interface | 1Gbps (Gigabit Ethernet) |
| Protocol | TCP/IP / HTTP / DHCP | |
| Application | Windows 2000 / XP / Vista / 7 / 8 (PC Client system & IE) / Mac | |
| Web Browser | Internet Explorer | |
| Backup | Interface | USB 2.0 × 2 |
| Backup device | External HDD / CD & DVD-RW / Network / Thumb Drive | |
| Storage | Slot | 2 (No capacity limit) |
| Others | Controller | IR Remote Control / Mouse |
| Pan / Tilt Camera | Control from RS485 Interface | |
| Power Source | AC Adapter DC | |
| Operating Temp. | 5~40°C (41~104°F) | |
| Relative Humidity | Maximum 80% Non-Considering | |
| Dimension | 340(W)×250(D)×60(H)mm 13.4"(W)×9.9"(D)×2.4"(H) |
|
Products specifications
| Number of Channels | 4Ch |
| Technology | HD-SDI |
