KEY FEATURES
- Full GUI with alpha blending
- Individual setting of resolution, frame rates and picture quality
- Instant Replay
- Digital Zoom (Live & Playback)
- Weekly scheduler with holiday by 10 minutes setting
- Covert, Disable and Private function of cameras
- Motion Detection with 352 area settings
- Relay alarm output
- PTZ control by RS-485
- Daylight Saving Time and Network Time Setting
- Multi User Authority up to 8 Users
- De-interlacer upon live and playback
- 12 languages with full graphic
- Individual Network port setting
- Auto Deletion
- Import and Export the configuration
- Mirroring
- POS Interface
- Dual CODEC engine for independent video transmission
- Interactive setup via network
SPECIFICATIONS
|

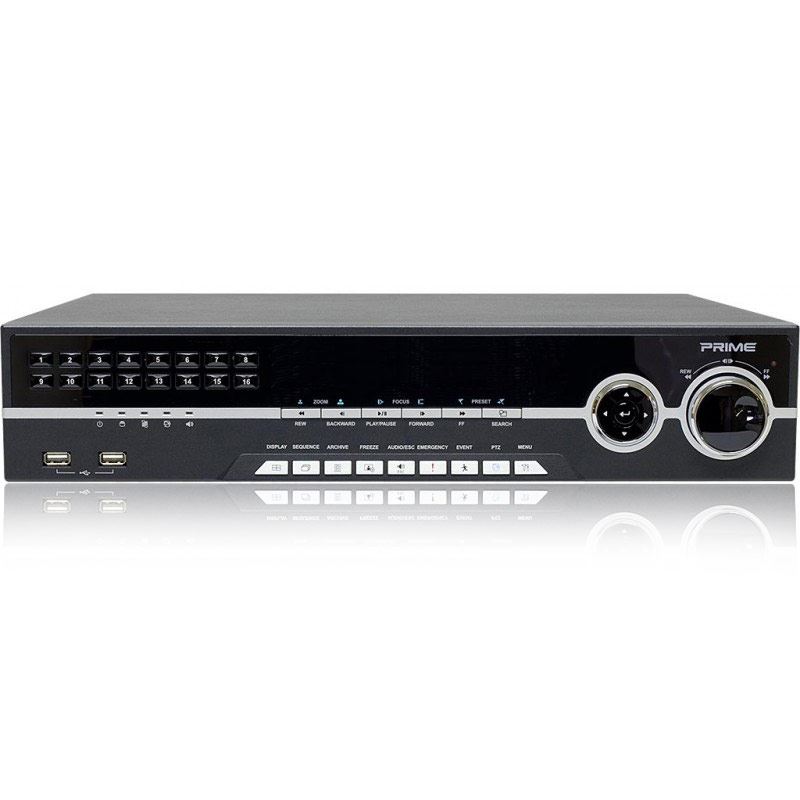

XVST MAGIC-16M
|
|||
| Video | Individual HD/Analog selectable | All Hybrid (Patent Pending) | |
| Available source | 720p25,30,50,60/1080p25,30,50,60/1080i50,60/Composite/960H/Mixed | ||
| Output | 1 HDMI / 1 VGA (simultaneously) / 1 Programmable SPOT with OSD | ||
| Audio input/output | 16RCA/1RCA | ||
| Sensor In | 16 (NC, NO selectable) | ||
| Alarm Out | 14 TTL, 2 relay | ||
| Display | Resolution (Pixel) | 1280×1024, 1280×720, 1920×1080 | |
| Split Screen | 1, 4, 6, 8, 9, 13, 16 | ||
| Recording | Resolution (Pixel) | 720p, 1080p, 1080i, 960H, 720H, Mixed | |
| Speed | Total | 480fps@1080p | |
| Playback | Display | 1, 4, 6, 8, 9, 13, 16 | |
| Search Mode | Calendar / Event / POS / Panorama / Thumbnail | ||
| Speed | Total | 480 fps @ 1080p | |
| Fast/Slow speed | Normal, REW & FF [recorded speed ×2, ×4, ×8, ×16, ×32, ×64, ×1/2, ×1/4] Frame to frame, Pause | ||
| Network | Network Interface | Gigabit Ethernet | |
| Speed | 120fps@1080p | ||
| Application | Windows 2000 / XP / Vista / 7 / 8 (PC Client system & IE) / Mac | ||
| Web Browser | Internet Explorer, Safari | ||
| Smart phone App | Android, iPhone for live and search (Catcheye) | ||
| Backup | Interface | USB 2.0 × 3 | |
| Backup device | External HDD / CD & DVD-RW / Network / Thumb Drive | ||
| The number of HDD | 4 + 1 eSATA(No capacity limit) | ||
| Others | Power Consumption | 150W | |
| Operationg Temperature | 5 ~ 40°C (41~104°F) | ||
| Relative Humidity | Maximum 80% non-condensing | ||
| Dimension | 430(W) × 420(D) × 88(H) | ||
Products specifications
| Number of Channels | 16Ch |
| Technology | HD-SDI |
