FEATURES
- 1/3 inch SONY 2 Mega-pixel CMOS
- Auto IRIS V/F Lens 2.8~12mm
- 1080p / 720p Resolution
- Min Illumination : 0 Lux at IR On (IR LED 80pcs)
- Horizontal Resolution 1000TVL
- DC 12V / AC 24V : DUAL POWER
SPECIFICATIONS
XIR 2184FV
Resolution
HD-SDI(1080P, 720P) / 1000 TV Line Over
Sensor
1/3“ SONY CMOS
Total Pixels
2010(H) × 1108(V) = 2,227,080
Effective Pixels
1944(H) × 1092(V) = 2,122,648
Scanning System
Progressive Scan
S/N (Y Signal)
More than 52 dB(AGC Off)
Video Output
SMPTE292M (HD-SDI) / CVBS : 1.0Vp-p (75ohm)
Min. Illumination
0 Lux at IR On (IR LED 80pcs)
White Balance
AUTO / AUTO EXT / PUSHING / MANUAL
Electronic Shutter Speed
AUTO / MANUAL(1/30sec ~ 1/30,000sec)
Brightness
Adjustable (0~20 Step)
Sens-up
OFF / ×2 / ×3 / ×4
DNR
OFF / LOW / MIDDLE / HI
WDR / BLC
OFF / WDR / BLC
HLM
OFF / SET
ACE
OFF / ON
Day & Night
AUTO (Day <-> Night TIME Change), COLOR, B/W
Privacy
OFF / ON (28 Zone)
Motion Detection
OFF / ON
D. Zoom
0 ~ ×112
FLIP
OFF / ON
FREEZE
OFF / ON
Language
ENGLISH
Sharpness
ADJUSTABLE (0~10 STEP)
Mirror
ON / OFF
COMM.
RS-485(PELCO-D)
Operating Temperature / Humidity
-10°C~+50°C (14°F ~ 122°F) / 30% ~ 80% RH
Storage Temperature / Humidity
-20°C~+60°C (-4°F ~ 140°F) / 20% ~ 90% RH
Power
DC 12V / AC 24V
HD-SDI
100~150m
Transmission range
Max transmission range is depends on the cable manufacturer and the installtion environment.
| Camera Features | WDR, Outdoor |
| Resolution | 2MP/1080p |
| Technology | HD-SDI |
| Lens | 2.8-12mm |

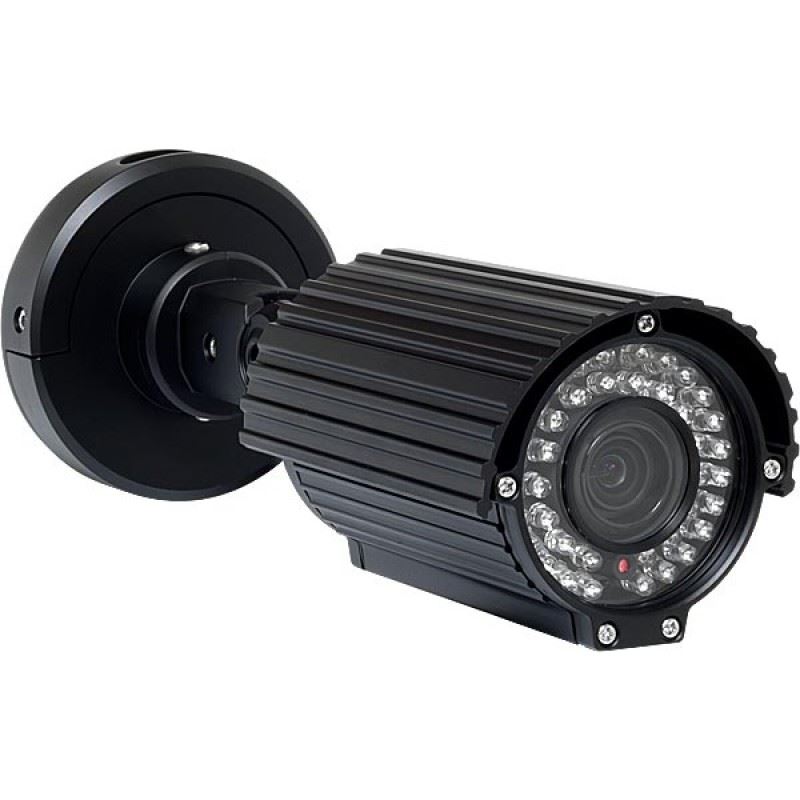

HD-SDI 1080p Long Range Outdoor IR Bullet Camera 2.8-12mm Dual Power (XIR-2284FV)
