Manufacturer: UnixCCTV

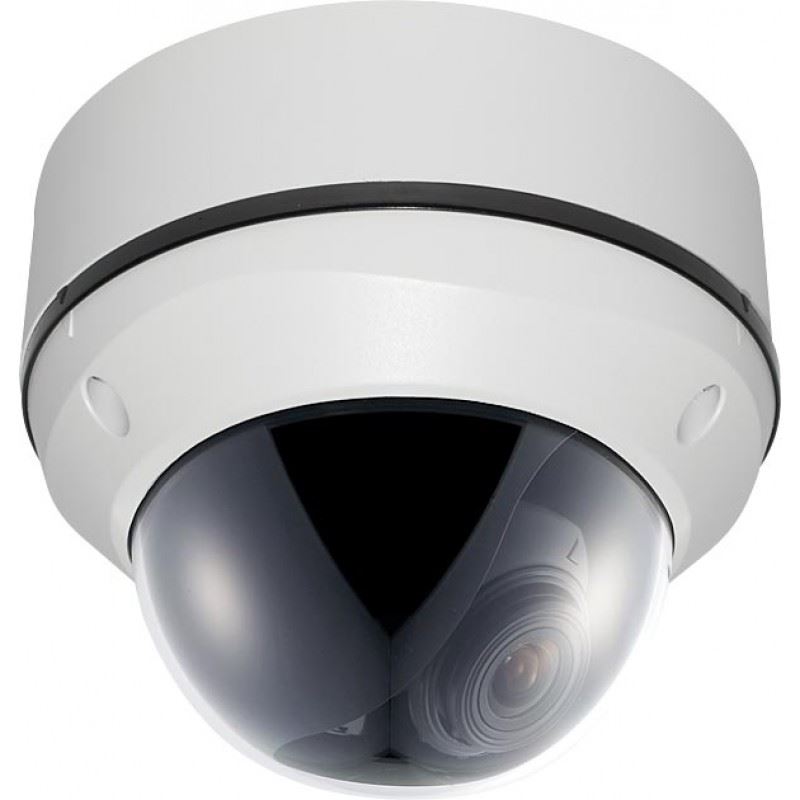

HD-SDI 1080p IP68 STORM® Vandal-Resistant Dome Camera w/ICR & Dual Power (XVL-204V)

1 review(s)
SKU: 141307
MPN: XVL-204V
$159.95
$203.94
XVL-204V - Vandal Resistant HD-SDI FULL HD 1080p Dome Security Camera 2.8~12mm Mega-pixel AVF Lens • DC 12V or AC 24V 3 Axis Construction
Share

Share this link via

Or copy link

Matching or higher specs replacement might be shipped on most SDI products, as the technology has been long discounted. All SDI sales are final.
  • Pay with Ease
    •
    •
    •
    •
  • Secure SSL Encryption
  • Fast, Insured Shipping
  • 30-Day Money-Back Guarantee
  • Hassle-Free Warranty
  • Lifetime Customer Support
Product Highlights
Camera FeaturesVandal Proof, WDR
Resolution2MP/1080p
TechnologyHD-SDI
Lens2.8-12mm

FEATURES

  • 1/3" SONY CMOS
  • HD-SDI (1080p, 720p) / High Resolution (1000 TV line over)
  • HD-SDI (High Definition Serial Digital Interface) / 1 lux at F1.2 / 0.1 lux (B/W)
  • Update Vandal-proof & vandal Resistant Housing (IP68 rating) / OSD Controlled
  • Motion / Privacy / Easy Installation / 3 Axis Construction
  • DNR (Digital Noise Reduction) / Auto IRIS V/F Lens 2.8~12mm
  • DC 12V / AC 24V

SPECIFICATIONS

XVL 204V
ResolutionHD-SDI(1080P, 720P) / 1000 TV Line Over
Sensor1/3“ SONY CMOS
Total Pixels2010(H) X 1108(V) = 2.2M Pixel
Effective Pixels1944(H) X 1092(V) = 2.1M Pixel
Scanning SystemProgressive Scan
S/N (Y Signal)More than 52 dB(AGC Off)
Video OutputSMPTE292M (HD-SDI) / CVBS : 1.0Vp-p (75Ω)
Min. Illumination1 Lux at F1.2 / 0.1 Lux (B/W)
White BalanceAUTO / AUTO EXT / PUSHING / MANUAL
Electronic Shutter SpeedAUTO / MANUAL(1/30sec ~ 1/30,000sec)
BrightnessAdjustable (0~20 Step)
Sens-upOFF / ×2 / ×3 / ×4
DNROFF / LOW / MIDDLE / HI
WDR / BLCOFF / Single scan WDR / BLC
HLMOFF / SET
ACEOFF / ON
Day & NightAUTO (Day <-> Night TIME Change), COLOR, B/W
PrivacyOFF / ON (28 Zone)
Motion DetectionOFF / ON
D. Zoom0 ~ ×112
FLIPOFF / ON
FREEZEOFF / ON
LanguageENGLISH
SharpnessADJUSTABLE (0~10 STEP)
MirrorON / OFF
COMM.RS-485(PELCO-D)
Operating Temperature / Humidity-10°C~+50°C (14°F ~ 122°F) / 30% ~ 80% RH
Storage Temperature / Humidity-20°C~+60°C (-4°F ~ +140°F) / 20% ~ 90% RH
PowerDC 12V / AC 24V
HD-SDI300 ~ 450ft (100 ~ 150m)
Transmission rangeMax transmission range is depends on the cable manufacturer and the installation environment.
