Manufacturer: UnixCCTV

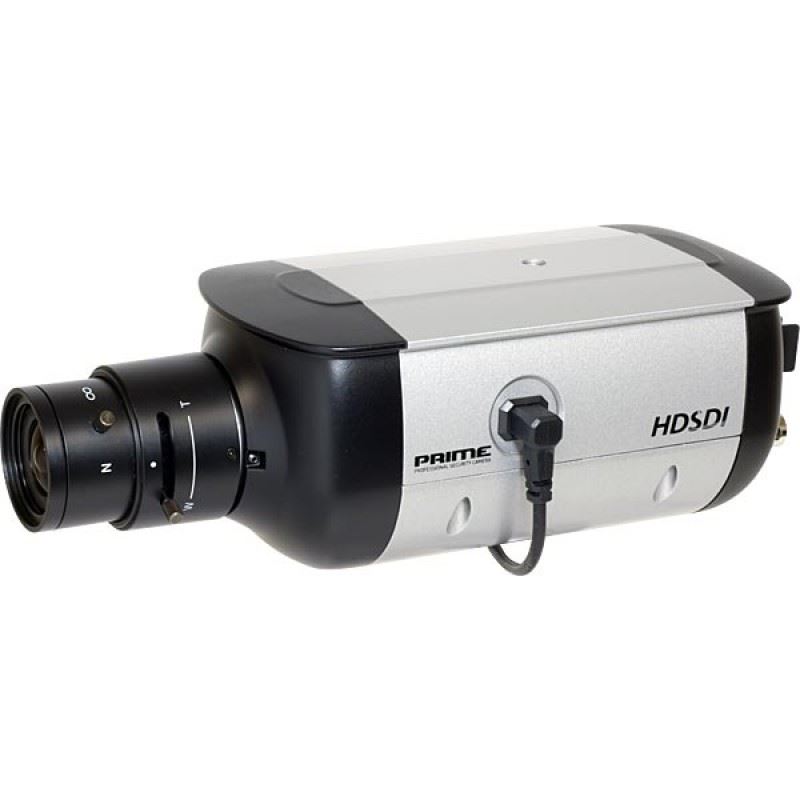

HD-SDI 1080p Box Camera w/ ICR & Dual Power (XPB-204)

3 review(s)
SKU: 141281
MPN: XPB-204
HD-SDI FULL HD 1080p Security Box Camera True Day & Night(ICR) • DC 12V/AC 24V Dual output : HD-SDI digital + analog output
$129.95
$167.94

Share

Share this link via

Or copy link

Matching or higher specs replacement might be shipped on most SDI products, as the technology has been long discounted. All SDI sales are final.
  • Pay with Ease
    •
    •
    •
    •
  • Secure SSL Encryption
  • Fast, Insured Shipping
  • 30-Day Money-Back Guarantee
  • Hassle-Free Warranty
  • Lifetime Customer Support
Product Highlights
Resolution2MP/1080p
Camera FeaturesWDR
TechnologyHD-SDI

SPECIFICATIONS

XPB 204
ResolutionHD-SDI(1080P, 720P) / 1000 TV Line Over
Sensor1/3“ SONY CMOS
Total Pixels2010(H) X 1108(V) = 2.2M Pixel
Effective Pixels1944(H) X 1092(V) = 2.1M Pixel
Scanning SystemProgressive
S/N (Y Signal)More than 52 dB(AGC Off)
Video OutputSMPTE292M (HD-SDI) / CVBS : 1.0Vp-p (75Ω)
Min. Illumination1 Lux at F1.2 / 0.1 Lux (B/W)
White BalanceATW / PUSH / MANUAL
Electronic Shutter SpeedAUTO / MANUAL(1/30sec ~ 1/30,000sec)
BrightnessAdjustable (0~20 Step)
Sens-upOFF / ×2 / ×3 / ×4
DNROFF / LOW / MIDDLE / HI
WDR / BLCOFF / Single scan WDR / BLC
HLMOFF / SET
ACEOFF / ON
Day & NightAUTO (Day <-> Night TIME Change), COLOR, B/W
PrivacyOFF / ON (28 Zone)
Motion DetectionOFF / ON (8 Zone)
D. Zoom0 ~ ×112
FLIPOFF / ON
FREEZEOFF / ON
LanguageENGLISH
SharpnessADJUSTABLE (0~10 STEP)
MirrorON / OFF
COMM.RS-485(PELCO-D)
Operating Temperature / Humidity-10°C~+50°C (14°F ~ 122°F) / 30% ~ 80% RH
Storage Temperature / Humidity-20°C~+60°C (-4°F ~ +140°F) / 20% ~ 90% RH
PowerDC 12V/AC 24V
HD-SDI300 ~ 450ft (100 ~ 150m)
Transmission rangeMax transmission range is depends on the cable manufacturer and the installtion environment.
Dimensions72(W) × 63(H) × 150mm(D) / 2.83(W) × 2.48(H) × 5.91"(D)
