KEY FEATURES
- One HDMI input signal split to two HDMI 1.4a sink devices
- Support 3D
- Support 4K × 2K resolution
- Support CEC
- Support deep color 30bit, 36bit, 48bit
- Support Blue-Ray 24/50/60fsHD-DVD/xvYCC
- Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD/HD (HBR)
- Support signal retiming
- Support input up to 49ft AWG26 HDMI standard cable length, output up to 82ft AWG26 cable length
- No loss of quality
- Installs in minutes
- Need DC5V / 2A power supply
SPECIFICATIONS
|

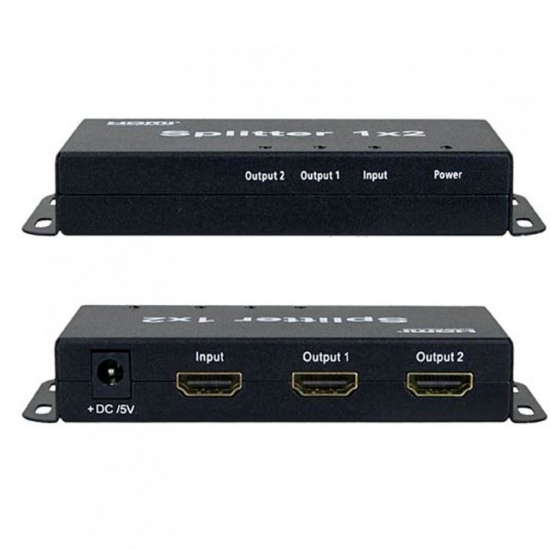

HA-SPL012
|
|
| HDMI version | HDMI 1.4a |
| HDMI resolution | 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i |
| Support video color format | 24bit/deep color 30bit,36bit, 48bit |
| Support audio format | DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD HD(HBR) |
| Max bandwidth | 340MHz |
| Max baud rate | 10.2Gbps |
| Input/Output TMDS signal | 0.5~1.5Volts p-p(TTL) |
| Input/Output DDc signal | 5Volts p-p (TTL) |
| Input cable distance | ≤15m AWG26 HDMI standard cable |
| Output cable distance | ≤20m AWG26 HDMI standard cable |
| Max working current | 1000mA |
| Power adapter format Input | AC (50HZ, 60HZ) 100V-240V; Output: DC5V/2A |
| Operating Temperature range | 5 to 131°F |
| Operating Humidity range | 5 to 90%RH (No Condensation) |
| Dimension (L × W × H) | 110×52×20(mm) |
