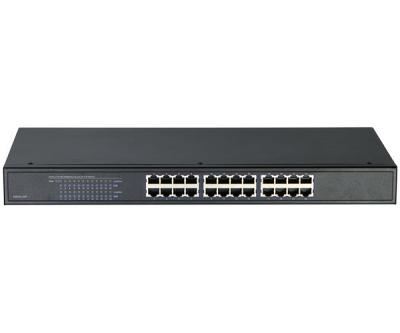

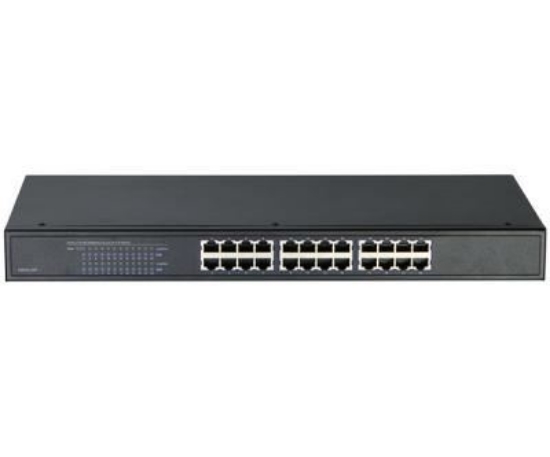

HA PW3024G-24P | |
Summarize | |
Fixed port | 24 10/100/1000Base-TX ports |
LED Indicators | PWR, PoE, Link/Act LED |
Input voltage | 100V~240V AC, 50/60Hz |
Power consumption | 150W/270W/390W (130W/250W/370W for PoE) |
Operating temperature | 0°C~40°C |
Storage temperature | -10°C~70°C |
Relative humidity | 20%~85% (non-condensing) |
Thermal methods | Built-in Noiseless FAN |
PoE | |
PoE port | 24 10/100/1000Base-TX ports |
PoE Standard | IEE802.3af, per port 15.4W |
Pin assignment | V+ (RJ45 Pin 1, 2), V- (RJ45 Pin 3, 6) |
Layer 2 Switching | |
Switching Capacity | 48G |
MAC Address Table | 8K, Support MAC address table management |
FEATURES
- Conforms to IEEE802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE802.3af
- Provides 24 10/100/1000 Base-TX ports
- Provides 8/16/24 PoE injector and build in AC power
- High back-plane bandwidth 48Gbps
- Up to 8k MAC address table size
- Surge protection for power port and data ports
- EMI standards complies with FCC, CE class B
