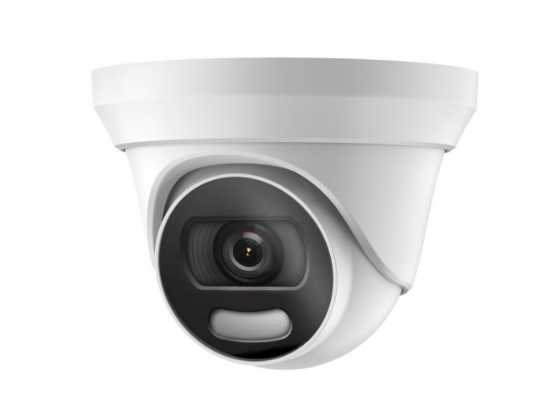

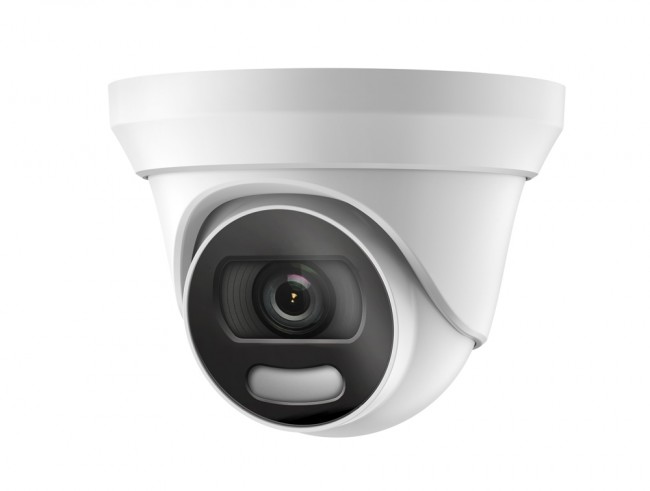

- 24/7 Full Time Color Turret
- Switchable TVI, AHD, CVI, CVBS
- 5MP (2560x1944 Resolution)
- 3.6mm Fixed Lens
- 65 FT Visible Light Range
- 130dB WDR, IP67 Rated
- 3 Axis Design
- DC12V
Details
| MODEL | GAC346-FD/F |
| Camera | |
| Image Sensor | 5MP High Performance CMOS |
| Effective Pixels | 2560 (H) x 1944 (V) |
| Min. Illumination | 0.0005 Lux @ (F1.0, AGC On), 0.0 Lux with White Light |
| Shutter Time | 1/30 Sec to 1/50,000 Sec |
| Lens | 3.6mm Fixed Lens |
| WDR | 130dB |
| Day & Night | Color |
| Angle Adjustment | Pan: 0° - 360°; Tilt: 0° - 75°; Rotate: 0° - 360° |
| Video Frame Rate |
TVI: 5MP@20FPS, 4MP@30FPS, 2MP@30FPS CVI: 4MP@30FPS AHD: 5MP@20FPS, 4MP@30FPS CVBS: PAL/NTSC |
| HD Video Output | 1 Analog HD Output |
| Menu | |
| Privacy Mask | On/Off, 4 programmable privacy masks |
| AGC | Support |
| Slow Shutter | Max 16 times |
| White Balance | ATW, Manual |
| Motion Detection | 4 programmable motion areas |
| Backlight Compensation | WDR, BLC, HLC, Off |
| Functions | Brightness, Sharpness, Mirror, Smart IR |
| UTC Function | Support |
| General | |
| Working Temperature | -40°F - 140°F |
| Power Supply | DC12V |
| Power Consumption | Max 3.5W |
| Ingress Protection | IP67 |
| White Light | Approx 65FT |
| Dimensions | 4.33" x 3.67" |
| Weight | Approx 2 LBS |
Products specifications
| Technology | HD-TVI |
| Lens | 3.6mm |
