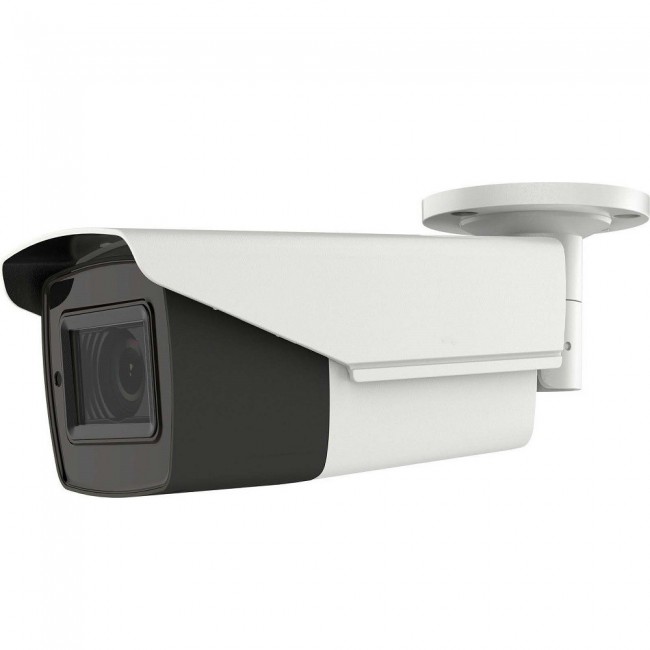

- HD Over Coax IR Bullet
- Switchable TVI, AHD, CVI, CVBS
- 5MP (2592x1944 Resolution)
- 2.7-13.5mm Motorized Lens
- EXIR Technology With Smart IR
- Approx 131 FT IR Range
- IP67 Rated
- Dual Voltage
Details
MODEL | GAC336D-VB4Z |
Camera | |
Image Sensor | 5MP CMOS |
Effective Pixels | 2592 (H) x 1944 (V) |
Min. Illumination | Color: 0.01 Lux @ (F1.2, AGC On), 0.0 Lux with IR |
Shutter Time | 1/30 Sec to 1/50,000 Sec |
Lens | 2.7-13.5mm Motorized Lens |
Angle Adjustment | Pan: 0° - 355°; Tilt: 0° - 90°; Rotate: 0° - 355° |
Video Frame Rate | 2592x1944 @ 20FPS |
HD Video Output | 1 Analog HD Output |
Menu | |
AGC | Support |
D/N Mode | Auto/Color/BW |
White Balance | Auto/Manual |
Backlight Compensation | Support |
Functions | Brightness, Sharpness, Smart IR |
UTC Function | Support |
General | |
Working Temperature | -40°F - 140°F |
Power Supply | Dual Voltage |
Power Consumption | Max 10W |
Ingress Protection | IP67 |
IR Range | Approx 131FT |
Dimensions | 3.33" x 3.62" x 10" |
Weight | Approx 2 LBS |
Products specifications
Technology | HD-TVI |
