Dahua bullet thermal IP Camera (DH-TPC-BF5421-T)

SKU: 161793
MPN: DH-TPC-BF5421-T
1 review(s) | Add your review
5.0 1
$11,099.95
$8,989.95

Accepted Payments

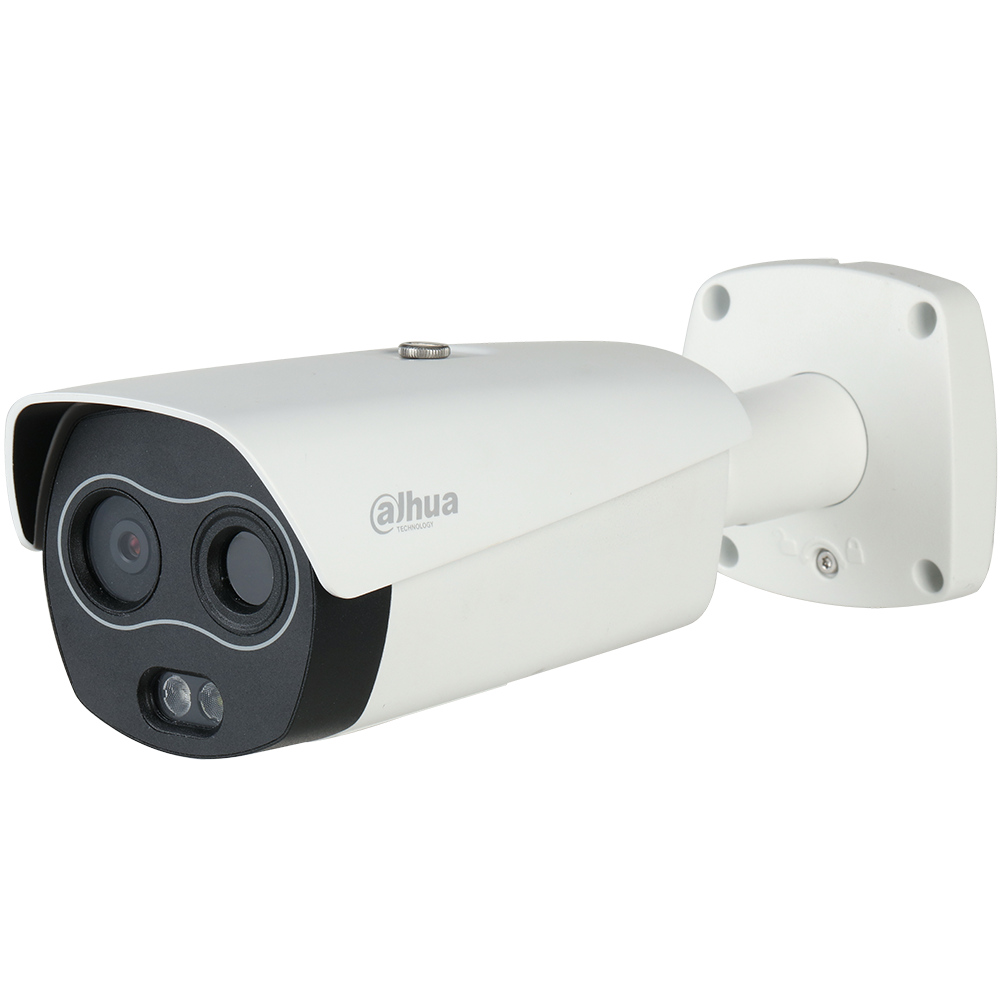

Dahua DH-TPC-BF5421-T Outdoor Thermal IP Bullet Camera is equipped with an uncooled vanadium thermal sensor and a 2MP 1/2.8" CMOS sensor, this thermal IP camera is designed to display body temperature measurement. Capturing thermal video in 400 x 300 resolution and optical video in 1920 x 1080 resolution, The camera features a 13mm fixed thermal lens with a 30° horizontal field of view, along with an 8mm fixed optical lens that has a 40° field of view. in addition this thermal camera has a built-in siren and spotlights keeps intruders at bay.
Live chat
Have a question? ASK AN EXPERT, Call 877-366-2444
Or Chat Live (Mon–Fri 8am–6pm CT)

 Key Features

  • Thermal and optical sensors in one unit
  • Designed for body temperature measurement
  • Uncooled VOx thermal sensor technology
  • ≤40 mK thermal sensitivity
  • 8 to 14µm spectral range
  • Electronic image stabilization (thermal)
  • 2D-DNR and 3D-DNR
  • Mirroring, 90 & 180° image flip
  • ROI (region of interest)
  • 18 selectable color modes include whitehot, blackhot, ironrow, icefire, and more
  • Active deterrence via white spotlights and siren
  • Auto and manual IR on/off control
  • H.265, H.264, (H.264H, H.264B), and MJPEG video codecs
  • Enhanced Power over Ethernet (ePoE) technology enables long distance power and data transmission via Ethernet or coaxial cable
  • Alarm linkage includes motion detection, privacy mask, audio detection, microSD card abnormality, network abnormality, and anti-burn warning
  • ONVIF compliant
  • Up to 20 users
  • Auto heating to protect the chip in cold environments
  • Surge, lightning, and anti-electrostatic protection
  • CE and FCC certified



Thermal Camera
Detector Type Vanadium Oxide Uncooled Focal Plane Detector
Effective Pixels 400 x 300
Pixel Pitch 17 µm
Spectral Range 8-14 µm
Thermal Sensitivity (NETD) ≤40 mK
Focal Length 13mm
Field of View Horizontal: 30°
Vertical: 22.6°
Focus Fixed
Aperture f/1.0
Enhancements Digital Detail Enhancement (DDE)
Electronic Image Stabilization Thermal Image Stabilization: Electronic Image Stabilization
Gain Control Auto, Manual
Noise Reduction 3D-DNR, 2D-DNR
Image Flip 90°
180°
Mirror
Color Palettes 18 Color Modes Selectable
Temperature Measuring Range 86 to 113°F / 30 to 34°C
Temperature Accuracy ±32.5°F / ±0.3°C with Blackbody
±33.8°F / ±1°C without Blackbody
Temperature Mode Spot: 12
Line: 12
Area: 12
Supports 12 Rules Simultaneously
Optical Camera
Image Sensor 1/2.8" 2 MP CMOS
Effective Pixels (H x V) 1920 x 1080
Electronic Shutter Speed 1/30,000 to 1 Second
Minimum Illumination Color: 0.002 Lux
B&W: 0 Lux
IR Range 115' / 35 m
IR Control On/Off (Auto, Manual)
Number of IR LEDs 1
Focal Length 8mm
Aperture f/1.9
Field of View Horizontal: 40°
Vertical: 22°
Video & Audio
Video Compression H.265, H.264, (H.264H, H.264B), MJPEG
Resolution Thermal
Main Stream: 1280 x 1024, 1280 x 960 (Default), 1024 x 768, 640 x 480, 256 x 192
Sub-Stream: 640 x 512, 256 x 192 (Default)

Optical
Main Stream: 1920 x 1080 (Default), 1280 x 720, 704 x 576
Sub-Stream: 704 x 576, 355 x 288 (Default), 352 x 288
Audio Compression G.711a, G.711mu, AAC, PCM
Image Format JPEG
Ports
Analog Video Output 1 x CVBS (BNC)
Network 1 x 100M RJ45
Alarm 2 x Alarm Inputs
2 x Alarm Outputs
Audio 1 x Audio Input
1 x Audio Output
Alarm Linkage microSD Card Recording, On/Off Output, Siren and Light, Email, PTZ, Snapshot
Alarm Events Motion Detection, Privacy Mask, Audio Detection, microSD Card Abnormality, Network Abnormality, Anti-Burn Warning
RS-485 1 x RS-485
General
Two-Way Talk Yes
Network Protocols HTTP, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP, DNS, DDNS, PPPoE, IPv4/ v6, SNMP, QoS, UPnP, NTP
Region of Interest Yes
Edge Storage FTP, microSD Card (256 GB Capacity, Hot Plug)
Interoperability ONVIF, CGI, Dahua SDK
Supported Web Browsers Internet Explorer 8 or Higher (Explorer with IE Core), Chrome 42 or Earlier, Firefox 42 or Earlier, Safari 10 or Earlier
User/Host Up to 20 Channels (64 Mb/s Total Bandwidth)
Security Authorized Username and Password, Attached MAC Address, Encrypted HTTPS, IEEE 802.1x, Controlled Network Access
User Management Up to 20 Users (Admin and User Groups)
Error Detection Network Disconnection, IP Address Conflict, microSD Card Error (Status or Storage Space)
Power Supply 12 VDC (±20%), 1.2 A, PoE (802.3af), ePoE
Power Consumption Basic: 5 W
Maximum: 12 W (Power Adapter Excluded)
Operating Temperature 50 to 86°F / 10 to 30°C
Operating Humidity ≤95%
IP Rating IP67
Certifications CE, FCC
Protection Surge Protection (6 kV), Anti-Electrostatic Protection (8 kV, Touched by Objects), Anti-Electrostatic Protection (15 kV, Air)
Dimensions 11.02 x 4.07 x 3.77" / 280 x 103.5 x 95.8 mm
Weight 3.1 lb / 1.4 kg
Write your own review
  • Only registered users can write reviews
  • Bad
  • Excellent
Existing reviews
Works very well
We placed this camera on the entrance of a government facility, in a mobile setup as its temporary for the COVID-19 situation and it really works great
From: Guest | Date: 4/21/2020 3:19 PM
Was this review helpful? Yes No (0/0)
Products specifications
Camera Features Indoor
Camera Features Thermal
Camera Features Outdoor
Resolution 2MP/1080p
Technology IP/Network
