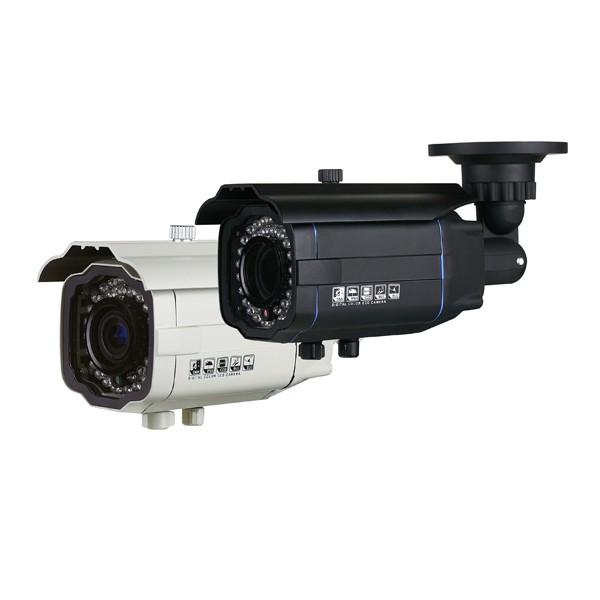

| Product Highlights | |
| Lens | 2.8-12mm |
| Camera Features | Outdoor |
| Technology | Analog |
| Resolution | 1000 TVL, 960H |
- 1/3" Sensor
- 2.8-12mm Varifocal lens
- 42 IR LEDs up to 120ft(36m)
- Aluminum housing
- DC 12V
| Camera | |
| Image Sensor | 1/3"Sensor |
| Signal System | NTSC / PAL |
| Effective Pixels | 1280(H)×960(V) |
| Min. Illumination | Color:> 0.1Lux B&W; 0 Lux |
| Shutter Speed | NTSC: 1/60 ~ 1/100,000 PAL: 1/50 ~ 1/100,000 |
| Lens | 2.8-12mm |
| Day&Night | ICR |
| White Balance | ATW |
| BLC | Auto |
| Auto Gain Control | Auto |
| Synchronization | Internal synchronization |
| Video Output | 1 Vp-p composite output (75 Ω/BNC) |
| S/N Ratio | 52dB |
| General | |
| Working Temperature /Humidity | -10 °C - 60 °C (14°F - 140°F) |
| Humidity 90% or less (non-condensing) | |
| Power Supply | 12V DC |
| IR LEDs | 42 pcs |
| Weather-proof rating | IP66 |
| IR Range | 120ft(36m) |
| Dimension | 240.0 × 88.8mm(9.4" × 3.5") |
| Weight | 900g (2.0lb) |
