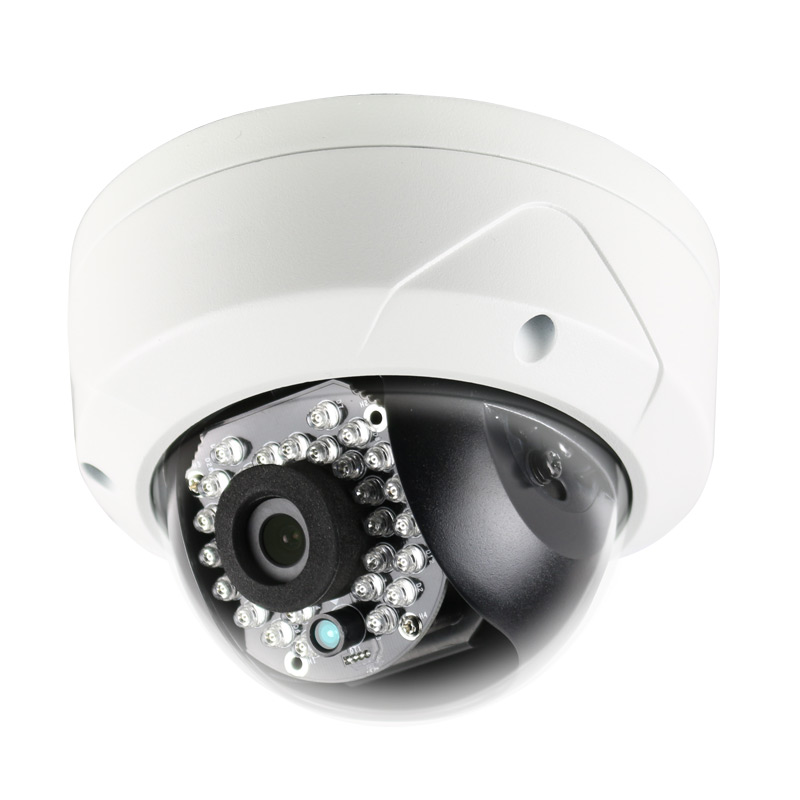

3MP Dome IP Camera 2.8mm (CMIP7432-28)

SKU: 121655
MPN: CMIP7432-28
Be the first to review this product
$262.95
$144.95

Accepted Payments

3.0 megapixel high resolution, HD real-time video, Day / night auto switch, IP66 ingress protection, IR LEDs :Approx 65 to 100 ft(About 20 to 30m), Vandal-proof housing, 3D DNR & DWDR & BLC
Live chat
Have a question? ASK AN EXPERT, Call 877-366-2444
Or Chat Live (Mon–Fri 8am–6pm CT)
  • 3.0 megapixel high resolution
  • HD real-time video
  • Day / night auto switch
  • IP66 ingress protection
  • IR LEDs :Approx 65 to 100 ft(About 20 to 30m)
  • Vandal-proof housing
  • 3D DNR & DWDR & BLC



Camera
Image Sensor  1/3" sensor
Min. Illumination 0.14 [email protected], AGC on
0 lux with IR
Shutter Speed 1/25s ~ 1/100,000s
Lens [email protected]
2048 × 1536: angle of view: 86°
1920 × 1080: angle of view: 98.5°
Lens Mount M12
Angle adjustment Pan: 0° ~ 355°, tilt: 0° ~ 65°
Day & Night ICR
Digital Noise Reduction 3D DNR
Wide Dynamic Range Digital WDR
Compression Standard
Video Compression H.264 / MJPEG
H.264 codec profile Main profile
Bit Rate 32 Kbps ~ 16 Mbps
Dual stream Yes
Max. Resolution 2048 × 1536
Frame Rate 60 Hz: 20fps (2048 x 1536), 30fps (1920 ×
1080), 30fps (1280 x 720)
50 Hz: 20fps (2048 x 1536), 25fps (1920
× 1080), 25fps (1280 x 720)
Image Settings Saturation, brightness, contrast adjustable through client software or web browser
BLC Yes,zone configurable
Network
Network Storage NAS ( iSCSI optional)
Alarm Trigger Motion detection,tampering alarm,network disconnect,IP address conflict,storage exception
Protocols TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP, 802.1x, Qos (SIP, SRTP, IPv6 optional)
System Compatibility ONVIF, PSIA, CGI
General functionalities Flickerless, heartbeat, mirror, user authentication, video mask, watermark
Interface
Communication Interface 1 RJ45 10M / 100M ethernet port
General
Working Temperature
/Humidity		 -13°F ~ 140°F(-25°C ~ 60°C)   humidity 95% or less (non-condensing)
Power Supply DC12V ± 10%, PoE (802.3af)
Power Consumption Max. 5.5W
Impact protection IEC60068-275Eh, 50J; EN50102, up to IK10
Ingress protection level IP66
IR Range Approx 65 to 100 ft(About 20 to 30m)
Dimension  Φ4.4"x3.2"(Φ111.0 × 82.4 mm )
Weight 1.1lb(500g)
Write your own review
  • Only registered users can write reviews
  • Bad
  • Excellent
Products specifications
Lens 2.8mm
Technology IP/Network
Resolution 3MP
Camera Features Outdoor
Camera Features Vandal Proof
Camera Features WDR
