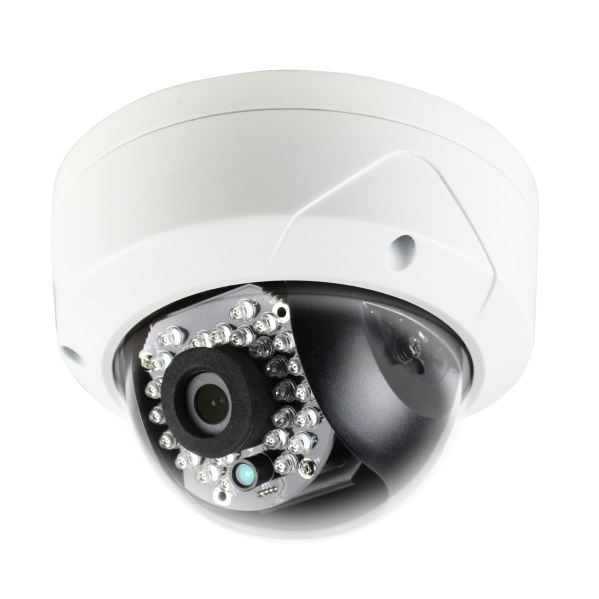

| Product Highlights | |
| Lens | 4mm |
| Technology | IP/Network |
| Resolution | 2MP/1080p |
| Camera Features | Outdoor, Vandal Proof, WDR |
- 2 megapixel high resolution
- HD real-time video
- Video Content Analytics(VCA)
- Region of Interest(ROI)
- 3D DNR & DWDR & BLC
- IR LEDs: up to 100ft(30m)
- IP66
- Vandal-proof
- PoE
| Camera | |
| Image Sensor | 1/2.8" sensor |
| Min. Illumination | 0.05 [email protected], AGC ON 0 lux with IR |
| Shutter Speed | 1/3s (1/4s) ~ 1/100,000s |
| Lens | [email protected] Angle of view: 79° |
| Lens Mount | M12 |
| Angle adjustment | Pan: 0° ~ 355°, tilt: 0° ~ 65° |
| Day & Night | ICR |
| Digital Noise Reduction | 3D DNR |
| Wide Dynamic Range | Digital WDR |
| Compression Standard | |
| Video Compression | H.264 / MJPEG |
| H.264 codec profile | Main profile |
| Bit Rate | 32 Kbps ~ 8 Mbps |
| Dual stream | Yes |
| Image | |
| Max. Resolution | 1920 × 1080 |
| Frame Rate | 60Hz: 30fps (1920 × 1080), 30fps (1280 x 960), 30fps (1280 x 720) 50Hz: 25fps (1920 × 1080), 25fps (1280 x 960), 25fps (1280 x 720) |
| Image Settings | Saturation, brightness, contrast adjustable through client software or web browser |
| BLC | Yes,zone configurable |
| Network | |
| Network Storage | NAS |
| Alarm Trigger | Motion detection, tampering alarm |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour (SIP optional) |
| System compatibility | ONVIF, PSIA, CGI |
| General functionalities | User authentication, watermark |
| Interface | |
| Communication Interface | 1 RJ45 10M / 100M ethernet port |
| General | |
| Working Temperature /Humidity | -22°F ~ 140°F(-30°C ~ 60°C ) Humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC ± 10%, PoE (802.3af) |
| Power Consumption | Max. 5W (max. 7W with ICR on) |
| Impact protection | IEC60068-2-75Eh, 50J; EN50102, up to IK10 |
| Ingress Protection Level | IP66 |
| IR Range | 100ft(30m) |
| Dimension | Φ4.4"x3.2"(Φ111.0 × 82.4 mm ) |
| Weight | 1.1 lbs(500g) |
