Manufacturer: LTS Security

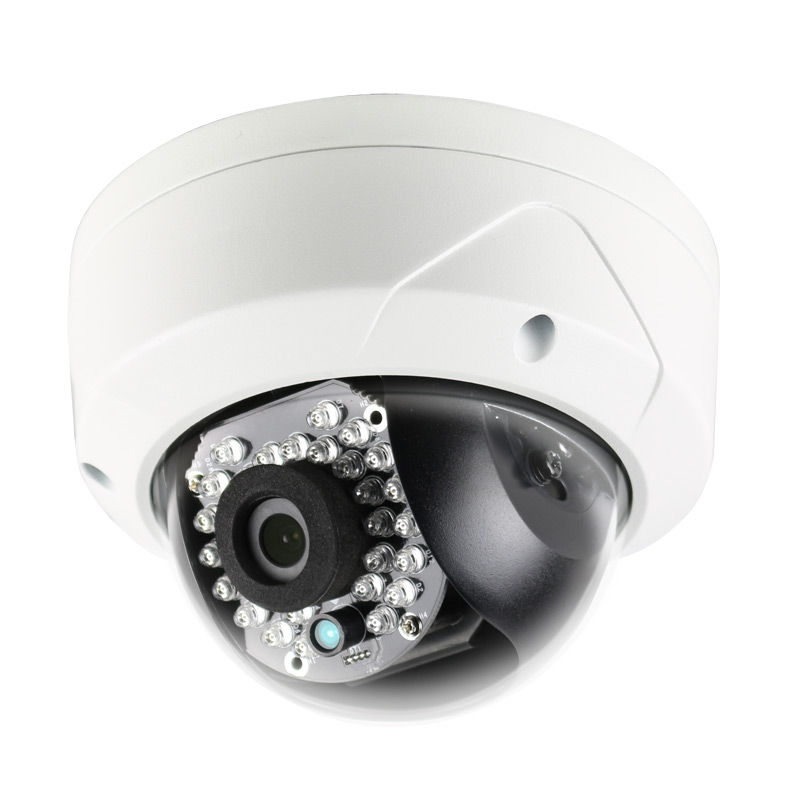

1.3MP Dome IP Camera Outdoor 2.8mm (CMIP7412-28)

SKU: 121649
MPN: CMIP7412-28
$134.95
$195.95
1.3 megapixel high resolution, HD real-time video, Day / night auto switch, IP66 ingress protection, IR LEDs :Approx 65 to 100 ft(About 20 to 30m), Vandal-proof housing, 3D DNR & DWDR & BLC
Share

Share this link via

Or copy link

  • Pay with Ease
    •
    •
    •
    •
  • Secure SSL Encryption
  • Fast, Insured Shipping
  • 30-Day Money-Back Guarantee
  • Hassle-Free Warranty
  • Lifetime Customer Support
  • 1.3 megapixel high resolution
  • HD real-time video
  • Day / night auto switch
  • IP66 ingress protection
  • IR LEDs :Approx 65 to 100 ft(About 20 to 30m)
  • Vandal-proof housing
  • 3D DNR & DWDR & BLC



Camera
Image Sensor  1/3" sensor
Min. Illumination 0.028 [email protected], AGC ON
0 lux with IR
Shutter Speed 1/25s ~ 1/100,000s
Lens [email protected]
1280 × 960: angle of view: 92.5°
Lens Mount M12
Angle adjustment Pan: 0° ~ 355°, tilt: 0° ~ 65°
Day & Night ICR
Digital Noise Reduction 3D DNR
Wide Dynamic Range Digital WDR
Compression Standard
Video Compression H.264 / MJPEG
H.264 codec profile Main profile
Bit Rate 32 Kbps ~ 16 Mbps
Dual stream Yes
Max. Resolution 1280 × 960
Frame Rate 60 Hz: 30 fps (1280 × 960), 30 fps (1280 x 720)
50 Hz: 25 fps (1280 × 960), 25 fps (1280 x 720)
Image Settings Saturation, brightness, contrast adjustable through client software or web browser
BLC Yes,zone configurable
Network
Network Storage NAS ( iSCSI optional)
Alarm Trigger Motion detection,tampering alarm,network disconnect,IP address conflict,storage exception
Protocols TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP, 802.1x, Qos (SIP, SRTP, IPv6 optional)
System Compatibility ONVIF, PSIA, CGI
General functionalities Flickerless, heartbeat, mirror, user authentication, video mask, watermark
Interface
Communication Interface 1 RJ45 10M / 100M ethernet port
General
Working Temperature
/Humidity
-13°F ~ 140°F(-25°C ~ 60°C)   humidity 95% or less (non-condensing)
Power Supply DC12V ± 10%, PoE (802.3af)
Power Consumption Max. 5.5W
Impact protection IEC60068-275Eh, 50J; EN50102, up to IK10
Ingress protection level IP66
IR Range Approx 65 to 100 ft(About 20 to 30m)
Dimension  Φ4.4"x3.2"(Φ111.0 × 82.4 mm )
Weight 1.1lb(500g)
Products specifications
Lens 2.8mm
Technology IP/Network
Resolution 1.3MP/960p
Camera Features Outdoor, Vandal Proof, WDR
