Product Highlights | |
Lens | 3.5-9mm |
Technology | IP/Network |
Resolution | 5MP |
Camera Features | Outdoor |
- 5 megapixel (2560 x 1920) high resolution
- Full HD1080p real-time video
- True day / night
- IP66 rating
- IR range: up to 65~100ft(About 20~30m)
- Motorized VF lens

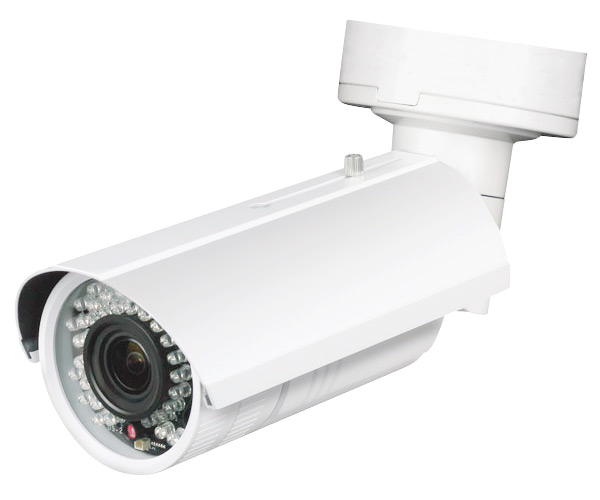

CMIP5353-Z Camera | |
Image Sensor | 1/2.5" Sensor |
Min. Illumination | 0.6 Lux @ F1.2, AGC On,1 Lux @ F1.6, AGC On,0 Lux with IR |
Shutter Speed | 1/25s~1/100,000s |
Lens | [email protected],angle of view:92°~36°,Motorized VF lens |
Lens Mount | Φ14 |
Auto Iris | DC drive |
Day & Night | IR cut filter with auto switch |
Compression Standard | |
Video Compression | H.264 / MPEG4 / MJPEG |
Bit Rate | 32 Kbps ~ 16 Mbps |
Dual Stream | Yes |
Image | |
Max. Resolution | 2560×1920 |
Frame Rate | 60HZ:7.5fps (2560 x 1920), 15fps (2048 x 1536), 30fps (1920 x 1080), 30fps (1600 x 1200), 30fps (1280 x 720) 50HZ:6.25fps (2560 x 1920), 12.5fps (2048 x 1536), 25fps (1920 x 1080), 25fps(1600 x 1200), 25fps (1280 x 720) |
Image Settings | Saturation, brightness, contrast adjustable through client software or web browser |
Network | |
Network Storage | NAS (iSCSI optional) |
Alarm Trigger | Motion detection, tampering alarm, network disconnect , IP address conflict, storage exception |
Protocols | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP,802.1x, Qos (SIP, SRTP, IPv6 optional) |
Security | User authentication, watermark |
Interface | |
Communication Interface | 1 RJ45 10M / 100M ethernet interface and 1 RS-485 interface |
General | |
Working Temperature /Humidity | 14°F~140°F(-10°C~60°C) Humidity 90% or less (non-condensing) |
Power Supply | 12V DC ± 10%, PoE (802.3af) |
Power Consumption | Max. 14W |
Weather proof rating | IP66 |
IR Range | Approx.65~100ft(20~30m) |
Dimension | 3.86" × 3.49"×12.94"(98.0 ×88.6× 328.8mm) |
Weight | 3.75lbs(1700g ) |
