Manufacturer: LTS Security

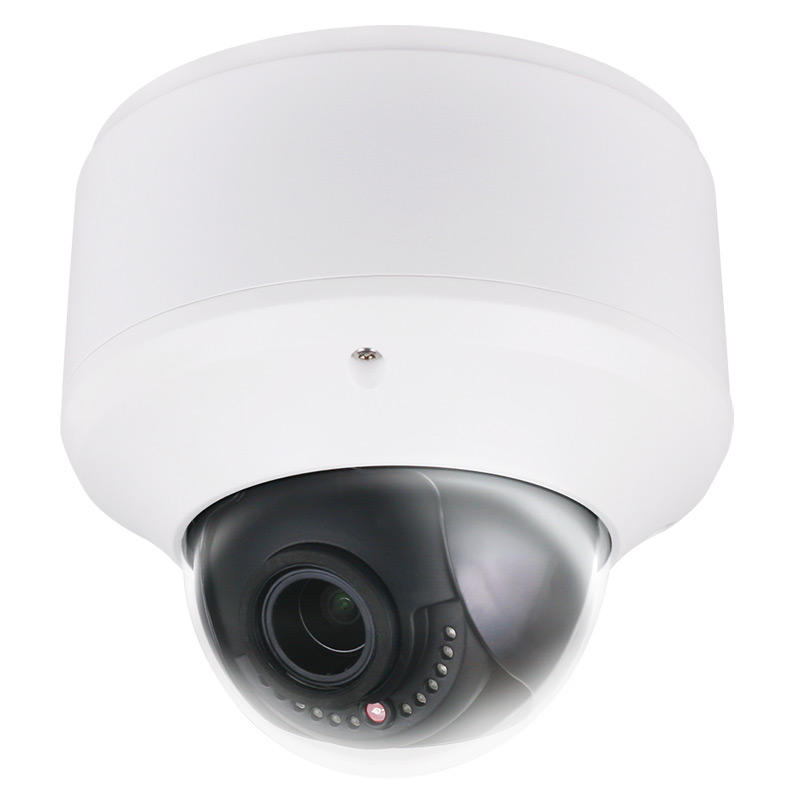

5 mega-pixel Dome Megapixel IP HD Camera 4mm (CMIP3953-Z)

SKU: 121645
MPN: CMIP3953-Z
$619.95
$837.95

5 mega-pixel (2560 x 1920)high resolution, Full HD1080p real-timerecording, 1/2.5 sensor, Motorized VF lens, Day / night auto witch, Vandal-proof housing, IP66 rating, Approx. 20~30m IRLEDs(66~100ft), 3-Axis
Share

Share this link via

Or copy link

  • Pay with Ease
    •
    •
    •
    •
  • Secure SSL Encryption
  • Fast, Insured Shipping
  • 30-Day Money-Back Guarantee
  • Hassle-Free Warranty
  • Lifetime Customer Support
Free shipping
Product Highlights
Lens4mm
TechnologyIP/Network
Camera FeaturesOutdoor, Vandal Proof
  • 5 mega-pixel (2560 x 1920)high resolution
  • Full HD1080p real-timerecording
  • 1/2.5” sensor
  • Motorized VF lens
  • Day / night auto switch
  • Vandal-proof housing
  • IP66 rating
  • Approx. 20~30m IRLEDs(66~100ft)
  • 3-Axis



Camera
Image Sensor 1/2.5" Sensor
Min. Illumination0.6 lux @F1.2, AGC on, 1 lux @F1.6, AGC on, 0 lux with IR
Shutter Speed1/25s~1/100,000s
Lens3.5 ~ 9 mm @F1.6, angle of view: 92°~ 36°
Lens MountΦ14
Auto IrisDC drive
Day & NightIR cut filter with auto switch
Compression Standard
Video CompressionH.264 / MPEG4 / MJPEG
Bit Rate32 Kbps ~ 16 Mbps
Dual StreamYes
Max. Resolution2560 × 1920
Frame Rate60 Hz: 7.5fps (2560 x 1920), 15 fps (2048 × 1536), 30 fps (1920 × 1080),
30 fps (1600 × 1200), 30fps (1280 x 720)
Image SettingsSaturation, brightness, contrast adjustable through client software or web browser
Network
Network StorageNAS (iSCSI optional)
Alarm TriggerMotion detection, tampering alarm, network disconnect , IP address conflict, storage exception
ProtocolsTCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP,802.1x, Qos (SIP, SRTP, IPv6 optional)
SecurityUser authentication, watermark
Interface
Communication Interface1 RJ45 10M / 100M ethernet interface and 1 RS-485 interface
Video Output1Vp-p Composite Output (75 Ω, BNC)
On-board StorageBuilt-in SD/SDHC slot, up to 32 GB
Reset ButtonYes
General
Working Temperature
/Humidity		-10°C~60°C(14°F~140°F)
Humidity 90% or less (non-condensing)
Power Supply24 VAC ± 10%, PoE (802.3af)
Power ConsumptionMax. 9W (max. 12W with IR cut filter on)
Impact protectionIEC60068-2-75Eh, 50J; EN50102, up to IK10
Ingress protection levelIP66
IR rangeApprox. 20 ~ 30m (66~100ft)
Dimension Φ159.8 × 146 mm (Φ 6.29" × 5.75")
Weight2100g (4.62 lbs)
